580.327070 (9784-0) - Craftsman 8,000 Watt Portable Generator Cradle & Generator Parts Diagram

8,000 Watt Portable Generator

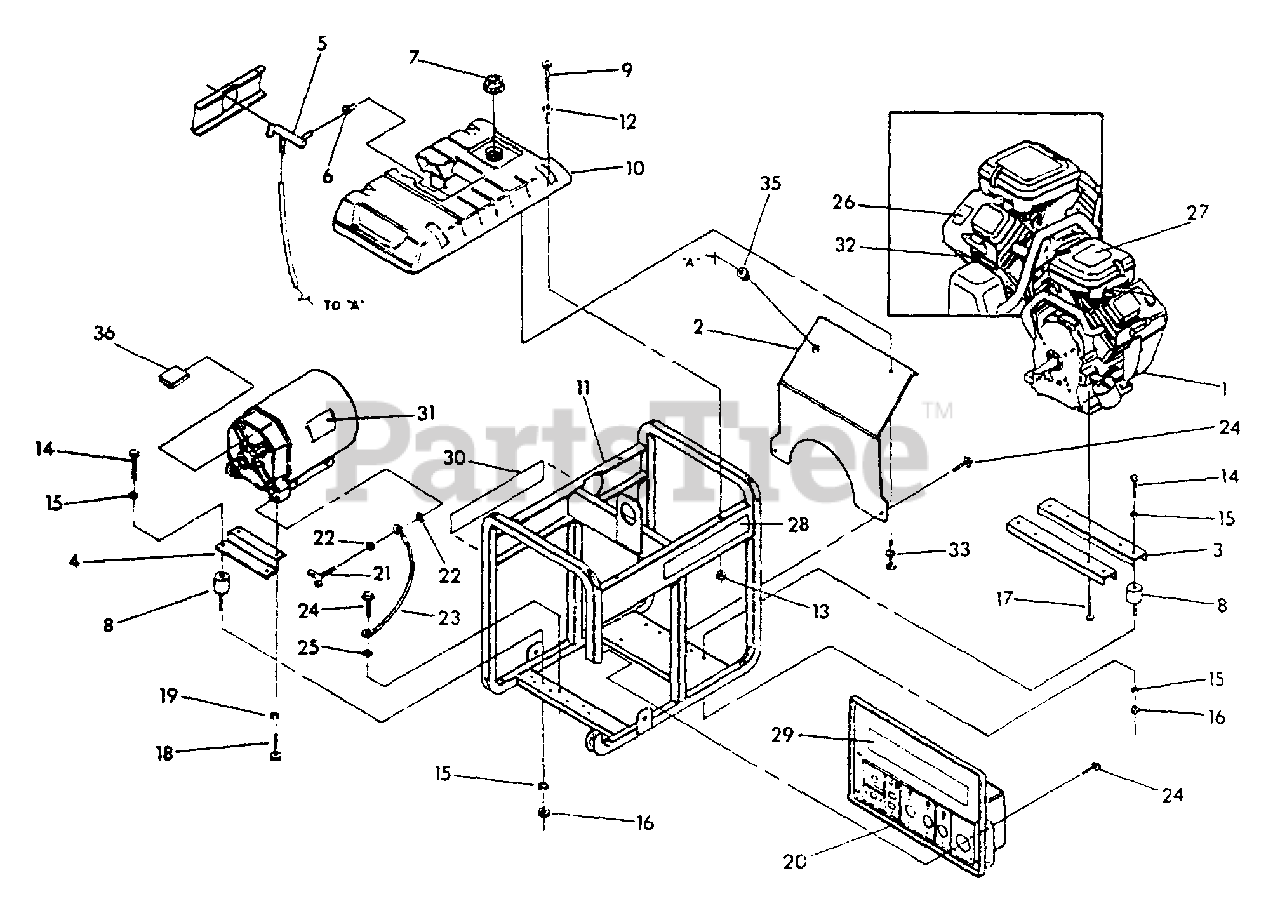

Cradle & Generator Parts Diagram

  • Title

1

Briggs & Stratton 85109

16 HP GN-480 ENGINE

$

$

Currently unavailable

2

Briggs & Stratton 92352

HEAT SHIELD

$

$

Not available

3

Briggs & Stratton 77304

ENGINE SUPPORT

$

$

Not available

4

Briggs & Stratton 78512

ALTERNATOR SUPPORT
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

FUEL SHUT-OF VALVE
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

FUEL VALVE BUSHING
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 84582

FUEL TANK CAP

$

$

Currently unavailable

8

Briggs & Stratton 35097

VIBRATION MOUNTS
(Superseded to 35097GS)

$16.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 78831B

M6-1.0 x 60mm CAPSCREW
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton 90915

FUEL TANK

$

$

Currently unavailable

11

Briggs & Stratton 92558

CRADLE
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

FL. TANK MTG. GROMMET
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 77395

M6 FLANGE LOCK NUT
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152

3/8"-16 x 3/4" CAPSCREW
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

3/8" LOCK WASHER

$

$

Not available

16

Briggs & Stratton 22241

3/8"-16 HEX NUT

$

$

Not available

17

Briggs & Stratton 75246

3/8"-16 x 1-1/4" SCREW
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39253

M8-1.25 x 16mm CAPSCREW
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

19

Briggs & Stratton 22129

M8 LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 92555A

CONTROL PANEL ASSM.
(Superseded to 92555AGS)

$

$

Not available

21

Briggs & Stratton 86494

M6-1.0 x 16mm WING SCREW
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

MS SHAKEPROOF WASHER

$

$

Not available

23

14353621

GROUND WIRE

$

$

Not available

24

Briggs & Stratton 86292

#10 SELF-DRILL CAPSCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

#10 SHAKEPROOF WASHER
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661G

ENGINE DECAL

$

$

Currently unavailable

27

Briggs & Stratton 77581

AIRBOX DECAL
(Superseded to 77581GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92982

DANGER-STOP DECAL
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 92519

CONTROL PANEL DECAL

$

$

Not available

30

Briggs & Stratton 92668

UNIT DECAL

$

$

Not available

31

Briggs & Stratton 78837

DATA PLATE DECAL

$

$

Currently unavailable

32

Briggs & Stratton 77816

CAUTION! HOT MUFFLER DECAL
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 70542

M6-1.0 x 16mm CAPSCREW

$

$

Currently unavailable

35

Briggs & Stratton 38057

RUBBER GROMMET
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

POWER MODULE
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0
