580.327070 (9784-0) - Craftsman 8,000 Watt Portable Generator Control Panel Parts Diagram

8,000 Watt Portable Generator

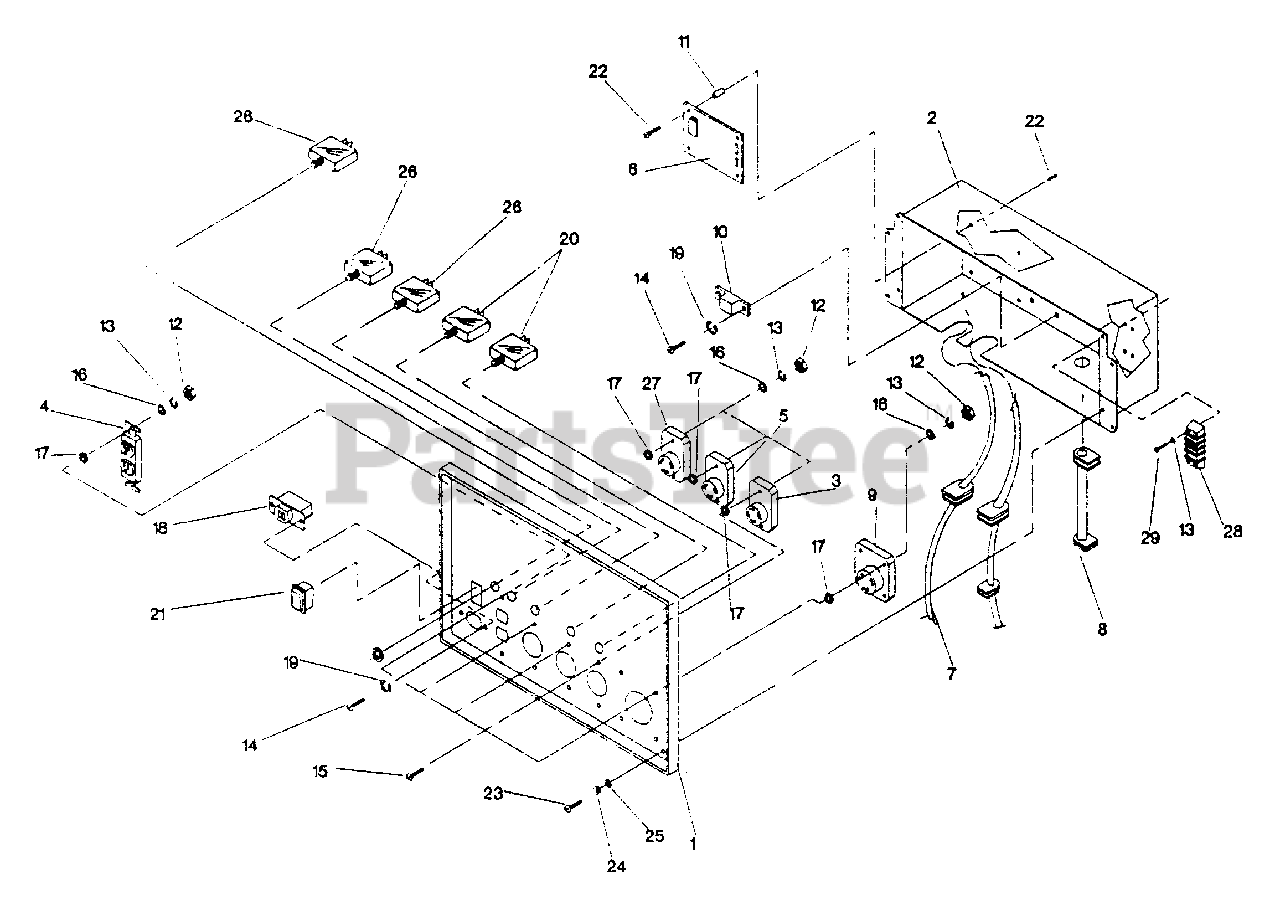

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 92354

CONTROL PANEL
(Superseded to 92354GS)

$106.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 92355

CONTROL BOX

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240V, 30 A TWISTLOCK OUTLET

$

$

Not available

4

Briggs & Stratton 68759

120 VOLTS, 20 A DUPLEX OUTLET
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 68868

120V, 30 A TWISTLOCK OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83970

SYSTEM CONTROL BOARD
(Superseded to 83970GS)

$

$

Not available

7

Briggs & Stratton 93043

ENGINE HARNESS ASSM.
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 81434

RUBBER GROMMET CONNECTOR

$

$

Currently unavailable

9

Briggs & Stratton 74191

250V, 50 AMP OUTLET
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

CIRCUIT BREAKER
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 68337

1" HEX STAND-OFF
(Superseded to 67547)

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

#8 LOCKWASHER

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10mm SCREW
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm SCREW

$

$

Not available

16

Briggs & Stratton 38150

#8 FLAT WASHER
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

#8 SHAKEPROOF WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66822

12V DC OUTLET & BRACKET
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 43182

3 LOCK WASHER
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

30A. CIRCUIT BREAKER

$

$

Not available

21

Briggs & Stratton 78653

ON-OFF SWITCH
(Superseded to 78653GS)

$

$

Not available

22

Briggs & Stratton 64526

#6-32 x 3/8" SCREW

$

$

Not available

23

Briggs & Stratton 52749

M5-0.8 x 12mm SCREW

$

$

Currently unavailable

24

Briggs & Stratton 49226

MS LOCK WASHER
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

M5 FLAT WASHER
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

20 AMP CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 74190

120V/20A TWISTLOCK OUTLET

$

$

Not available

28

Briggs & Stratton 92953

50-AMP, 3-TERMINAL BLOCK
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 75476

M4-0.7 x 156mm SCREW
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0
