580.327070 (9162-0) - Craftsman 8,000 Watt Portable Generator Panel Repair Parts No. 77591B Parts Diagram

8,000 Watt Portable Generator

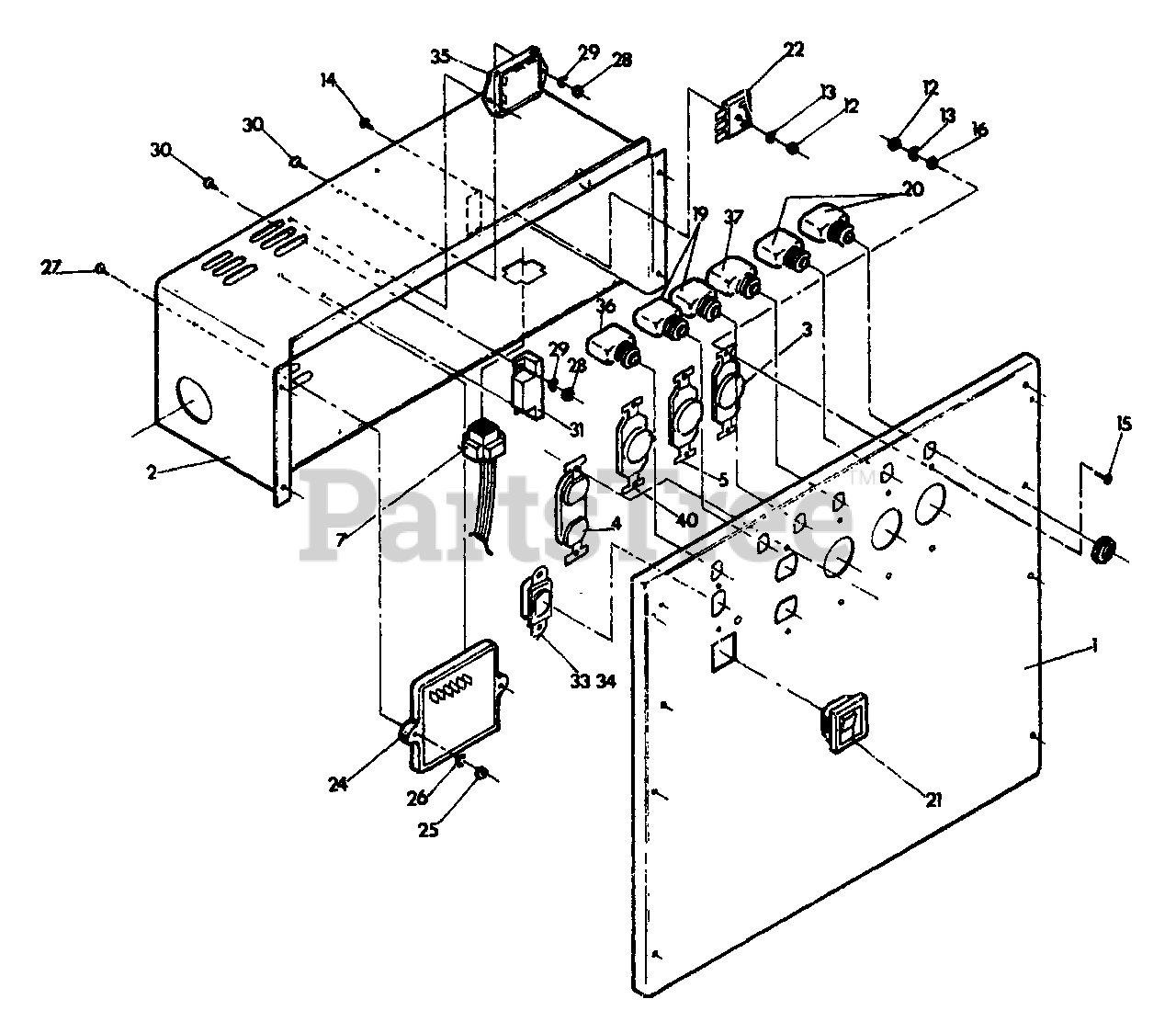

Panel Repair Parts No. 77591B Parts Diagram

  • Title

1

Briggs & Stratton 77346

PANEL, CONTROL-SILKSCREENED 8-KW
(Superseded to 7077346YP)

$74.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 77315

COVER, CONTROL PANEL

$

$

Currently unavailable

3

Briggs & Stratton 08867

OUTLET-120/240V. TWISTLOCK

$

$

Currently unavailable

4

Briggs & Stratton 63025

OUTLET-120V. 15AMP. DUPLEX
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

OUTLET-120V. 30AMP. TWISTLOCK
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

CONNECTOR

$

$

Currently unavailable

12

Briggs & Stratton 51715

HEX NUT, M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

LOCK WASHER-#8

$

$

Not available

14

Briggs & Stratton 70439

P.P.H.M.S. M4-0.7 x 20

$

$

Currently unavailable

15

Briggs & Stratton 75475

P.P.H.M.S. M4-0.7 x 10

$

$

Not available

16

Briggs & Stratton 38150

FLAT WASHER-NO. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

SHAKE-PROOF-#8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23364

SHAKE-PROOF-INTERNAL #6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

CIRCUIT BREAKER 15AMP.
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

CIRCUIT BREAKER 30AMP.

$

$

Not available

21

Briggs & Stratton 66817

SWITCH, ENGINE CONTROL
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

23

Briggs & Stratton 27565

ELECTRIC TAPE P-248 38 LONG

$

$

Currently unavailable

24

Briggs & Stratton 74074

AC VOLTAGE REGULATOR

$

$

Currently unavailable

25

Briggs & Stratton 22158

HEX NUT #10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

LOCK WASHER #10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

P.H.M.S. #10-32 x 1.125

$

$

Currently unavailable

28

Briggs & Stratton 22188

HEX NUT #6-32

$

$

Currently unavailable

29

Briggs & Stratton 22155

LOCK WASHER #5
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

P.P.H.M.S. #6-32 x .5
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 48476

CIRCUIT BREAKER 4.5AMP.
(Superseded to 48476GS)

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 43181

P.H.M.S. M3-0.5 x 10
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 66821

BATTERY CHARGE OUTLET
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66822

RETAINER, OUTLET
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

THERMAL RELAY

$

$

Not available

36

Briggs & Stratton 75207B

CIRCUIT BREAKER 10AMP.
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 75207

CIRCUIT BREAKER 20AMP.
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 22661Y

SLEEVING, 650MM

$

$

Currently unavailable

39

Briggs & Stratton 22661Y

SLEEVING, 700MM

$

$

Currently unavailable

40

Briggs & Stratton 74190

OUTLET 120/20AMP. TWISTLOCK

$

$

Not available
