580.327070 (9162-0) - Craftsman 8,000 Watt Portable Generator Axle Assembly Repair Parts No. 77583 Parts Diagram

8,000 Watt Portable Generator

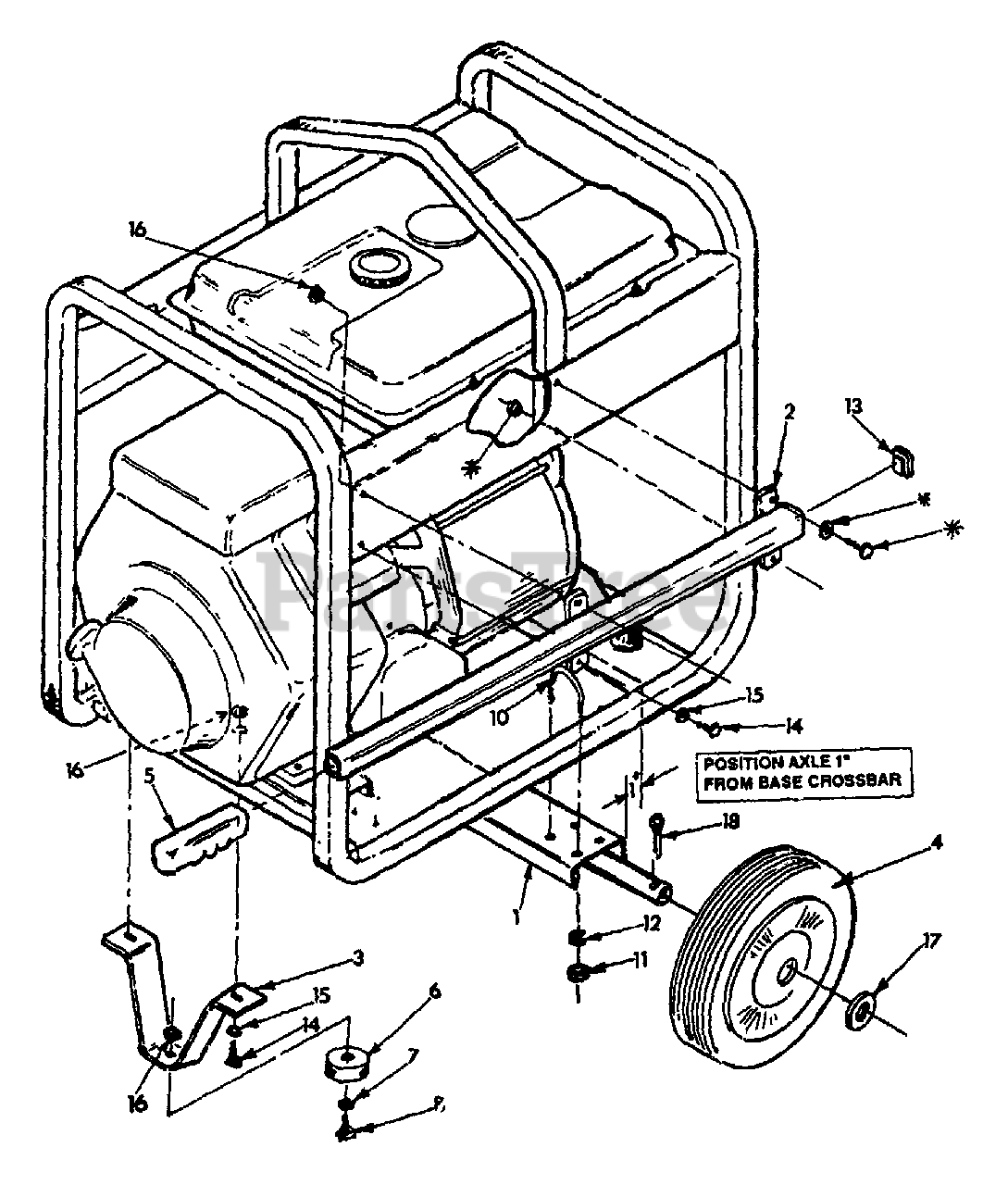

Axle Assembly Repair Parts No. 77583 Parts Diagram

  • Title

1

Briggs & Stratton 77313

AXLE ASSEMBLY
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 77317

HANDLE, TRANSPORT

$

$

Currently unavailable

3

Briggs & Stratton 45131

LEG, MOUNTING

$

$

Not available

4

Briggs & Stratton 52555

WHEEL ASSEMBLY
(Superseded to 7600147YP)

$122.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 77584

GRIP, HANDLE
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 27007

MOUNT, VIBRATION
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

7

Briggs & Stratton 50190

WASHER, SPECIAL
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 42909

CAPSCREW, HEX HEAD-M8-1.25 x 30
(Superseded to 42909GS)

$

$

Not available

10

Briggs & Stratton 26858

U-BOLT

$

$

Not available

11

Briggs & Stratton 22259

NUT, HEX-5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22129

WASHER, LOCK-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 46476

CAP PLUG
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43107

CAPSCREW, HEX HEAD-M8-1.25 x 25
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22145

WASHER, FLAT-M8

$

$

Not available

16

Briggs & Stratton 52858

NUT, HEX LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 45900

WASHER, FLAT-3/4"

$

$

Currently unavailable

18

Briggs & Stratton 22268

PIN, COTTER
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0
