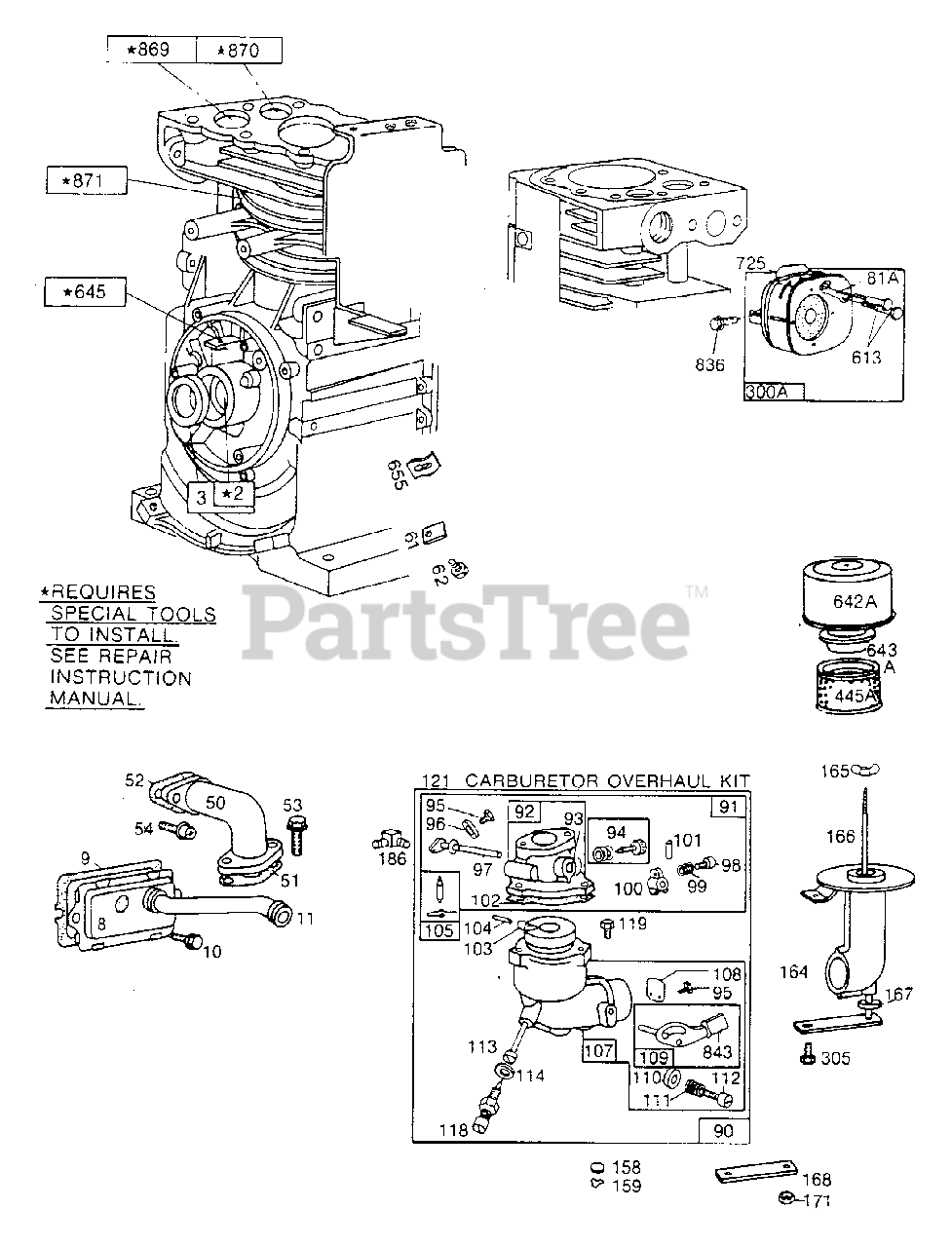

580.327054 (9085-4) - Craftsman 4,000 Watt Portable Generator Carburetor (10/95) Parts Diagram

4,000 Watt Portable Generator

Carburetor (10/95) Parts Diagram

  • Title

2

Briggs & Stratton 295962

Cylinder Bushing

Note: Requires special tools for installation

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Oil Seal
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

8

Briggs & Stratton 390321

Breather Assembly
(Superseded to 495724)

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Valve Cover Gasket
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw - Breather Mounting Sem
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 67068

Breather Tube Grommet

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 211812

Intake Elbow
(Superseded to 5021181X2)

$24.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 1270684

Carburetor Mounting Gasket

Note: Included in Gasket Set - P/N 299577

$

$

Currently unavailable

52

Briggs & Stratton 270684

Intake Elbow Mounting Gasket

Note: Included in Gasket Set - P/N 299577

$4.99

$

In Stock, Qty 9

0

53

Briggs & Stratton 93357

Carburetor Mounting Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Intake Elbow Mounting Screw

$8.49

$

In Stock, only 3 left!

0

61

Briggs & Stratton 68848

Starter Pulley Bumper
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Pulley Bumper Mounting Screw

$3.99

$

Usually ships in 2-12 days

0

81A

Briggs & Stratton 222263

Muffler Mounting Lock Screw
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

90

Briggs & Stratton 390323

Carburetor Assembly

$

$

Not available

91

Briggs & Stratton 390404

Upper Carburetor Body Assembly

$123.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 390503

Upper Carburetor Body
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Throttle Shaft Bushing
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Carburetor Idle Valve Assembly

Note: Included in Carburetor Overhaul Kit-P/N No. 291763

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Throttle-Choke Valve Mtg. Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Throttle Valve
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Throttle Shaft and Lever

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

No. 8-32 x 5/8" Machine Hd. Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Throttle Adjustment Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Throttle Stop
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Throttle Stop Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Carburetor Body Gasket

Note: Included in Carburetor Overhaul Kit-P/N No. 291763

$4.49

$

In Stock, Qty 12

0

103

Briggs & Stratton 99333

Carburetor Float

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Float Hinge Pin
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-P/N No. 291763

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394861

Fuel Inlet Valve

$2.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 299170

Lower Carburetor Body Assembly

$128.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 221835

Choke Valve Group

$8.49

$

In Stock, only 2 left!

0

109

Briggs & Stratton 391987

Choke Shaft and Lever

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Choke Lever Washer
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Choke Lever Spring
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Choke Lever Screw
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 395207

Carburetor Nozzle
(Superseded to 398039)

Note: Included in Carburetor Overhaul Kit-P/N No. 291763

$20.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Gasket Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-P/N No. 291763

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 231533

Needle Valve
(Superseded to 691777)

$17.99

$

In Stock, only 2 left!

0

119

Briggs & Stratton 93496

Hex Head Screw
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 394693

Carburetor Overhaul Kit

$31.99

$

In Stock, Qty 20+

0

158

Briggs & Stratton 27590

Carburetor Drain Filter

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Carburetor Drain Filter Retainer

$

$

Not available

164

Briggs & Stratton 391628

Air Cleaner Pipe Assembly
(Superseded to 398596)

$45.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93453

Wing Nut
(Superseded to 691331)

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 390325

Air Cleaner Stud

$28.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Air Cleaner Stud Seal
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

168

Briggs & Stratton 222150

Air Cleaner Pipe Strap

$8.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 92129

NUT, Hex, 1/4-28
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Fuel Pipe Connector
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

300A

Briggs & Stratton 391313

Exhaust Muffler
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 93158

Blower Housing Mounting Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

445A

Briggs & Stratton 390930

Air Cleaner Cartridge
(Superseded to 393957S)

$19.99

$

In Stock, only 1 left!

0

613

Briggs & Stratton 93704

Muffler Mounting Screw

$15.99

$

Usually ships in 2-12 days

0

642A

Briggs & Stratton 222271

Air Cleaner Cover
(Superseded to 593373)

$

$

Not available

643A

Briggs & Stratton 222272

Air Cleaner Cup
(Superseded to 691730)

$10.99

$

Usually ships in 2-12 days

0

645

Briggs & Stratton 23513

Plunger Bushing

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Spring Anchor
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 221885

Heat Shield

$12.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

843

Briggs & Stratton 280149

Choke Lever Sleeve
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211661

Intake Valve Seat
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Exhaust Valve Seat
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Exhaust Valve Guide

Note: See Repair Manual

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 230655

Exhaust Valve Guide

Note: See Repair Manual

$12.99

$

In Stock, only 2 left!

0
