580.327051 (9085-1) - Craftsman 4,000 Watt Portable Generator Craftsman 4-Cycle Engine Parts Diagram

4,000 Watt Portable Generator

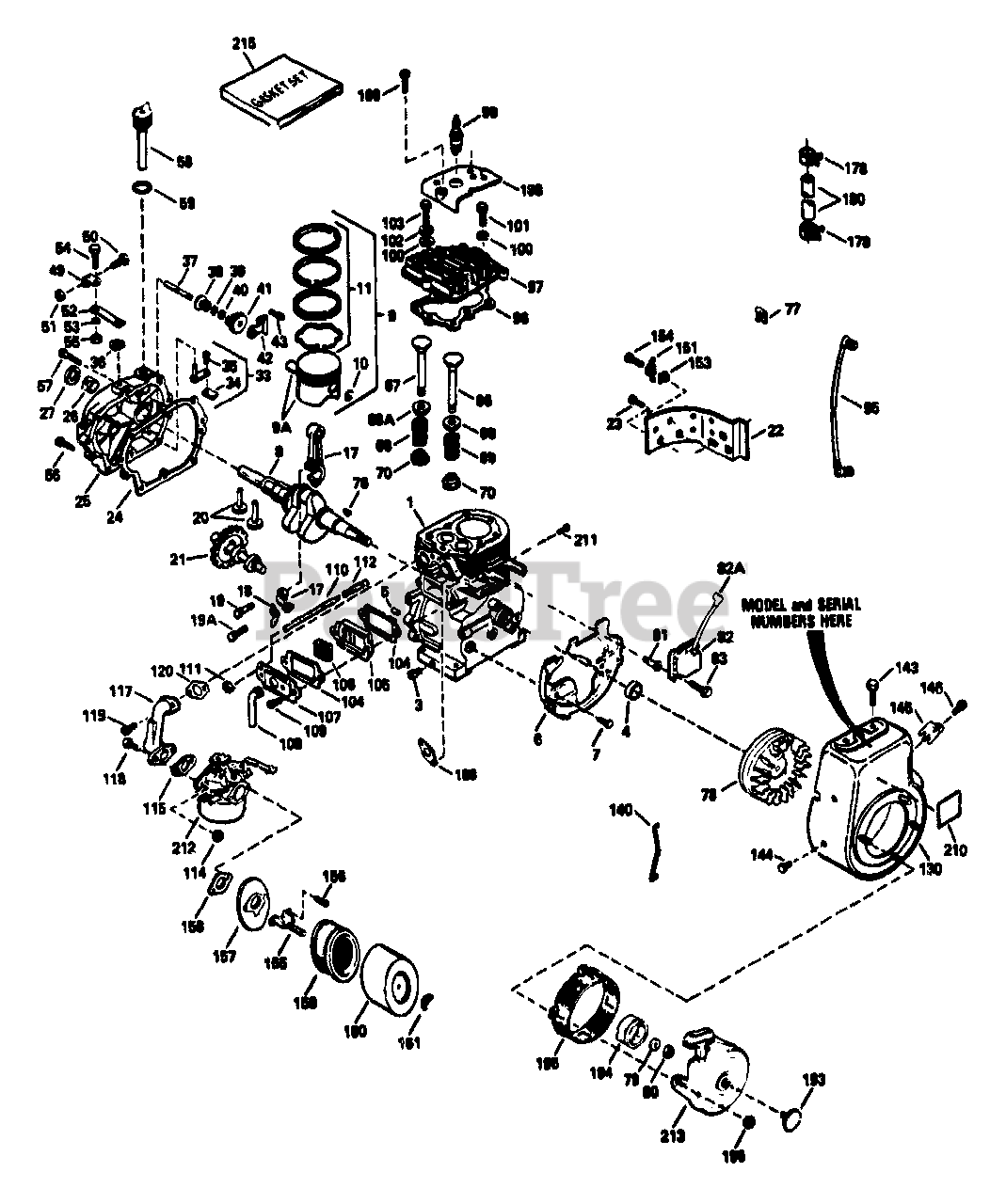

Craftsman 4-Cycle Engine Parts Diagram

  • Title

1

Briggs & Stratton 35385

Cylinder

Note: (Incl. Nos. 3, 4 & 5); Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 27642

Plug, Pipe

Note: Contact Generac for quantity required

$

$

Not available

4

Briggs & Stratton 35319

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 27652

Pin, Dowel
(Superseded to 7027652YP)

Note: Contact Generac for quantity required

$106.99

$

In Stock, Qty 5

0

6

Briggs & Stratton 35326

Baffle, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 35426

Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 34552

Piston, Pin & Ring Assy. (Std.)

Note: (Incl. Nos. 9A, 10 & 11); Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 34553

Piston, Pin & Ring Assy. (.010 oversize)

Note: (Incl. Nos. 9A, 10 & 11); Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 34554

Piston, Pin & Ring Assy. (.020 oversize)

Note: (Incl. Nos. 9A, 10 & 11); Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 34329A

Piston & Pin Assy. (Std.)

Note: (Incl. No. 10); Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 34330A

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 10); Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 34331A

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 10); Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 27888

Ring, Piston pin retaining
(Superseded to 7027888YP)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 34332

Ring Set, Piston (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 34333

Ring Set, Piston (.010 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 34334

Ring Set, Piston (.020 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 35373A

Rod Assy., Connecting

Note: (Incl. No. 18); Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 35374

Dipper, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 650908

Bolt, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

19A

Briggs & Stratton 650882

Bolt, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 34034

Lifter, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 35375

Camshaft (Mechanical Compression Release)

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 33273A

Extension, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 650128

Screw, Hex hd. Sems, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 35262

Gasket, Cylinder cover

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 35376

Cover Assy., Cylinder

Note: (Incl. Nos. 27 & 37); Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 35377

Bushing, Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 35319

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 30699C

Rod Assy., Governor

Note: (Incl. Nos. 34 & 35); Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 30700

Yoke, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 650494

Screw, Fil. hd. Sems, 6-40 x 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 29642

Ring, Retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 31845

Shaft, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 30588A

Spool, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 35479

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 35378

Gear, Governor

Note: (Incl. No. 39); Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 33369

Bracket, Governor gear

Note: Contact Generac for quantity required

$

$

Currently unavailable

43

Briggs & Stratton 650836

Screw, Hex washer hd. thread forming, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

49

Briggs & Stratton 29916

Clamp, Governor lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 29826

Screw, Hex washer hd., 10-32 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 29216

Locknut, Hex "Keps", 10-32
(Superseded to 7029216YP)

Note: Contact Generac for quantity required

$78.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 33454

Lever, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

53

Briggs & Stratton 29918

Washer, E.T. Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

54

Briggs & Stratton 650548

Screw, Hex washer hd., 8-32 x 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 30322

Locknut, Hex "Keps", 8-32

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 650832

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-11/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 660833

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 33463

Dipstick, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 29873

Gasket, Dipstick

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

66

Briggs & Stratton 27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 70); Contact Generac for quantity required

$

$

Currently unavailable

66

Briggs & Stratton 27880A

Valve, Exhaust (1/32" oversize)

Note: (Incl. No. 70); Contact Generac for quantity required

$

$

Currently unavailable

67

Briggs & Stratton 34035

Valve, Intake (Std.)

Note: (Incl. No. 70); Contact Generac for quantity required

$

$

Currently unavailable

67

Briggs & Stratton 34036

Valve, Intake (1/32" oversize)

Note: (Incl. No. 70); Contact Generac for quantity required

$

$

Currently unavailable

68

Briggs & Stratton 27882

Cap, Upper valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

68A

Briggs & Stratton 34689

Seal Assy., Intake valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

69

Briggs & Stratton 27881

Spring, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

70

Briggs & Stratton 32681

Cap, Lower valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

76

Briggs & Stratton 32589

Key, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

77

Briggs & Stratton 34246

Clip, Wire

Note: Contact Generac for quantity required

$

$

Currently unavailable

78

Briggs & Stratton 611090

Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

79

Briggs & Stratton 650880

Washer, Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

80

Briggs & Stratton 650861

Nut, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

81

Briggs & Stratton 650872

Stud, Solid state mounting

Note: Contact Generac for quantity required

$

$

Currently unavailable

82

Briggs & Stratton 35136

Solid State Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

82A

Briggs & Stratton 27276

Cover, Spark plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

83

Briggs & Stratton 650814

Screw, Torx hex washer hd. Sems, 10-24 x 1

Note: Contact Generac for quantity required

$

$

Currently unavailable

95

Briggs & Stratton 36183

Wire, Ground

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 34041A

Gasket, Cylinder head

Note: Contact Generac for quantity required

$

$

Currently unavailable

97

Briggs & Stratton 34030

Head, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

99

Briggs & Stratton 34251

Spark plug (Champion RJ-17LM or equivalent)

Note: Contact Generac for quantity required

$

$

Currently unavailable

100

Briggs & Stratton 650691

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

101

Briggs & Stratton 650802

Screw, Hex washer hd. taptite, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

102

Briggs & Stratton 650690

Washer, Belleville

Note: Contact Generac for quantity required

$

$

Currently unavailable

103

Briggs & Stratton 650694A

Screw, Hex flange hd., 5/16-18 x 2

Note: Contact Generac for quantity required

$

$

Currently unavailable

104

Briggs & Stratton 27896A

Gasket, Breather

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

105

Briggs & Stratton 28423

Body, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

106

Briggs & Stratton 28424

Element, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

107

Briggs & Stratton 28425

Cover, Breather
(Superseded to 7035947YP)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 35350

Tube, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

109

Briggs & Stratton 650128

Screw, Hex hd. Sems, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

110

Briggs & Stratton 30845A

Bolt, Governor spring adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

111

Briggs & Stratton 33450

Nut, Lock, 10-32

Note: Contact Generac for quantity required

$

$

Currently unavailable

112

Briggs & Stratton 30886A

Spring, Governor bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

114

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Contact Generac for quantity required

$

$

Currently unavailable

115

Briggs & Stratton 33263

Gasket, Carburetor

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

117

Briggs & Stratton 34707

Pipe, Intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

118

Briggs & Stratton 30088A

Screw, Fil. hd. Sems, 1/4-28 x 1

Note: Contact Generac for quantity required

$

$

Currently unavailable

119

Briggs & Stratton 650378

Screw, Torx fil. hd. Sems, 5/16-18 x 1-1/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

120

Briggs & Stratton 27915A

Gasket, Intake pipe

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

130

Briggs & Stratton 33375C

Housing, Blower

Note: Contact Generac for quantity required

$

$

Currently unavailable

140

Briggs & Stratton 33878

Link, Governor-to-throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

143

Briggs & Stratton 650788

Screw, Hex hd. spinlock thread forming, 5/16-18 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

144

Briggs & Stratton 29747B

Screw, Phil. hex hd. Sems, 5/16-24 x 21/32

Note: Contact Generac for quantity required

$

$

Currently unavailable

145

Briggs & Stratton 33013

Cover, Starter hole

Note: Contact Generac for quantity required

$

$

Currently unavailable

146

Briggs & Stratton 650760

Screw, Pan hd. taptite, 8-32 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

151

Briggs & Stratton 33356

Terminal, Ground

Note: Contact Generac for quantity required

$

$

Currently unavailable

153

Briggs & Stratton 28545

Grommet, Plastic

Note: Contact Generac for quantity required

$

$

Currently unavailable

154

Briggs & Stratton 650760

Screw, Pan hd. taptite, 8-32 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

155

Briggs & Stratton 33267

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

156

Briggs & Stratton 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

Note: Contact Generac for quantity required

$222.99

$

Usually ships in 2-12 days

0

157

Briggs & Stratton 33266

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

158

Briggs & Stratton 27272A

Gasket, Air cleaner

Note: Included in Gasket Set. Contact Generac for quantity required

$

$

Currently unavailable

159

Briggs & Stratton 33268

Element, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

160

Briggs & Stratton 33269A

Cover, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

161

Briggs & Stratton 650513

Nut, Wing, 1/4-20

Note: Contact Generac for quantity required

$

$

Currently unavailable

168

Briggs & Stratton 33272A

Cover, Cylinder head

Note: Contact Generac for quantity required

$

$

Currently unavailable

169

Briggs & Stratton 650802

Screw, Hex washer hd. taptite, 1/4-20 x 7/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

178

Briggs & Stratton 26460

Clamp, Fuel line

Note: Contact Generac for quantity required

$

$

Currently unavailable

180

Briggs & Stratton 29774

Line, Fuel

Note: Contact Generac for quantity required

$

$

Currently unavailable

188

Briggs & Stratton 27930A

Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

193

Briggs & Stratton 35392

Plug, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

194

Briggs & Stratton 35287

Hub, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

195

Briggs & Stratton 35446

Screen, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

196

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Contact Generac for quantity required

$

$

Currently unavailable

210

Briggs & Stratton 34346

Decal, Instruction

Note: Contact Generac for quantity required

$

$

Currently unavailable

211

Briggs & Stratton 30063

Screw, Hex washer hd. Sems, 1/4-20 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

212

Briggs & Stratton 632499

Carburetor

Note: (Incl. No. 115); Contact Generac for quantity required

$

$

Currently unavailable

213

Briggs & Stratton 590633

Starter, Rewind

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

215

Briggs & Stratton 33279G

Gasket Set

Note: (Incl. Items 24, 59, 104, 115, 120, & 158); Contact Generac for quantity required

$

$

Currently unavailable
