580.327031 (9083-1) - Craftsman 1,400 Watt Portable Generator Sheet Metal Parts Diagram

1,400 Watt Portable Generator

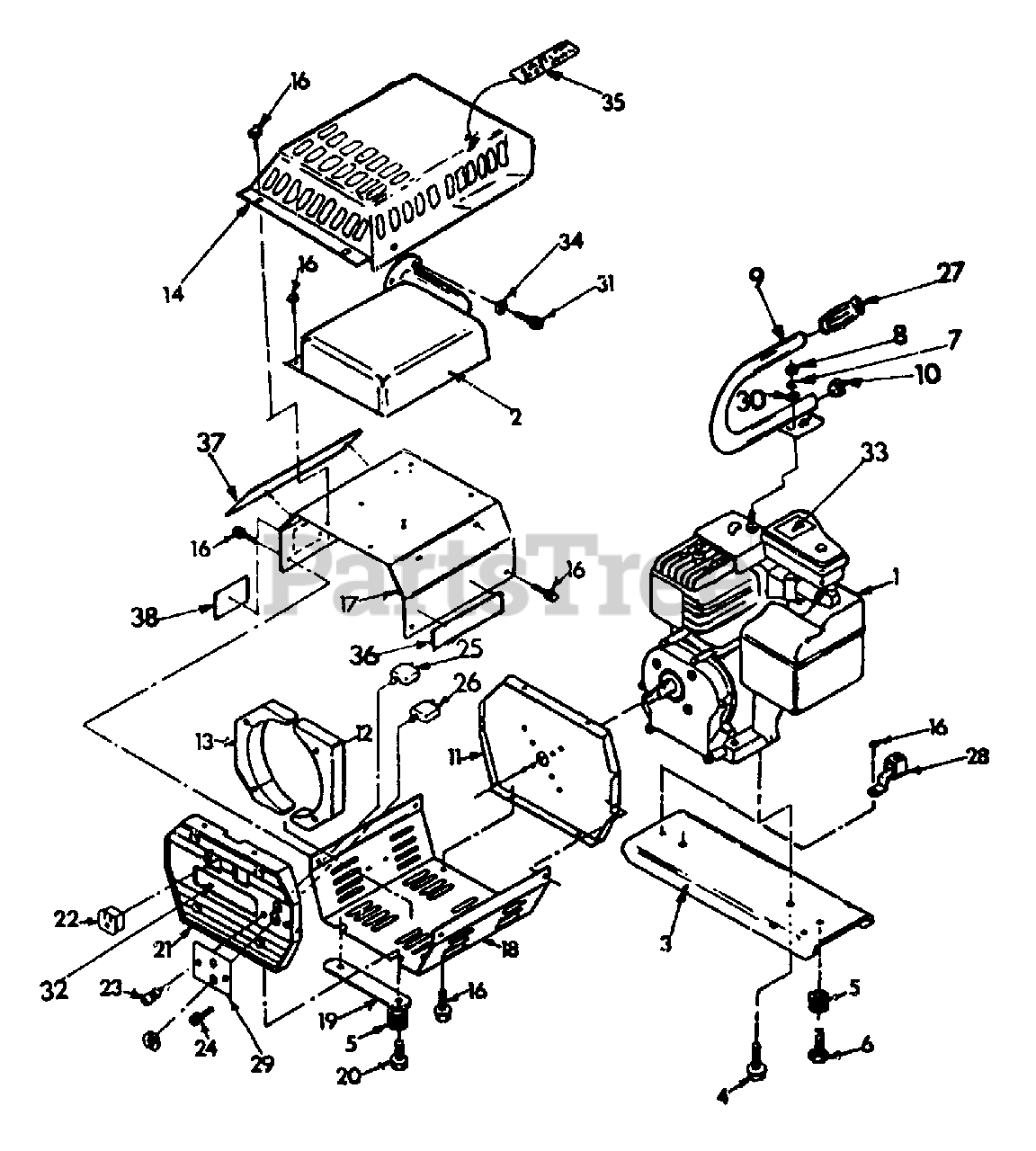

Sheet Metal Parts Diagram

  • Title

1

Briggs & Stratton 76298

ENGINE ASSEMBLY -- BRIGGS & STRATTON MODEL 80212-8702-01

$

$

Currently unavailable

2

Briggs & Stratton 75788

MUFFLER, 3HP. BRIGGS & STRATTON
(Superseded to 75788GS)

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 75926

SUPPORT, ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 59637

SCREW (TAPTITE) 3/8"-16 x 3/4"

$

$

Not available

5

Briggs & Stratton 70409

MOUNT VIBRATION

$

$

Not available

6

Briggs & Stratton 24910

SCREW (TAPTITE) - 5/16"-18 x 1/2"

$

$

Not available

7

Briggs & Stratton 22129

LOCKWASHER -- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22259

HEX NUT -- 5/16"
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 77085

HANDLE, CARRYING
(Superseded to 7077085YP)

$91.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 76203

END CAP

$

$

Currently unavailable

11

Briggs & Stratton 60209A

ADAPTOR, SHEET METAL

$

$

Currently unavailable

12

Briggs & Stratton 58887A

BAFFLE, GENERATOR AIR-RH

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, GENERATOR AIR-LH

$

$

Currently unavailable

14

Briggs & Stratton 77822

COVER, HEAD

$

$

Currently unavailable

16

Briggs & Stratton 56892

SCREW (CRIMPTITE) No. 10-3/8
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 58875D

WRAPPER, GENERATOR UPPER

$

$

Currently unavailable

18

Briggs & Stratton 58876A

WRAPPER, GENERATOR LOWER

$

$

Currently unavailable

19

Briggs & Stratton 66856

SUPPORT, PANEL

$

$

Not available

20

Briggs & Stratton 59634

SCREW (plastic) -- 1/4" X 1"

$

$

Not available

21

Briggs & Stratton 75918

END PANEL

$

$

Not available

22

Briggs & Stratton 58888

RECEPTACLE, 120 VOLTS AC

$

$

Not available

23

Briggs & Stratton 25368

TERMINAL, BATTERY CHARGE--BLACK

$

$

Not available

24

Briggs & Stratton 25367

TERMINAL, BATTERY CHARGE--RED
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75207B

BREAKER, CIRCUIT -- 10 AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207C

BREAKER, CIRCUIT -- 12 AMP
(Superseded to 75207CGS)

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 75928

GRIP HANDLE
(Superseded to 75928GS)

$

$

Not available

28

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

29

Briggs & Stratton 75922

DECAL, BATTERY CHARGE

$

$

Currently unavailable

30

Briggs & Stratton 22145

FLAT WASHER -- 5/16"

$

$

Not available

31

Briggs & Stratton 36781

CAPSCREW -- 1/4"-20

$

$

Currently unavailable

32

Briggs & Stratton 75919

DECAL, SEARS 1400
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 77027

DECAL, STARTING INSTRUCTIONS

$

$

Currently unavailable

34

Briggs & Stratton 55635

FLAT WASHER, SPECIAL

$

$

Currently unavailable

35

Briggs & Stratton 77816

DECAL, CAUTION HOT MUFFLER
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 75920

DECAL, SEARS 1400 WATT

$

$

Currently unavailable

37

Briggs & Stratton 77818

DANGER, DECAL

$

$

Currently unavailable

38

Briggs & Stratton 77026

DECAL, NAMEPLATE -- SEARS

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE, BATTERY CHARGE

$

$

Currently unavailable

Briggs & Stratton 76297

MANUAL
(Superseded to 76297GS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
