580.327031 (9083-1) - Craftsman 1,400 Watt Portable Generator Generator Parts Diagram

1,400 Watt Portable Generator

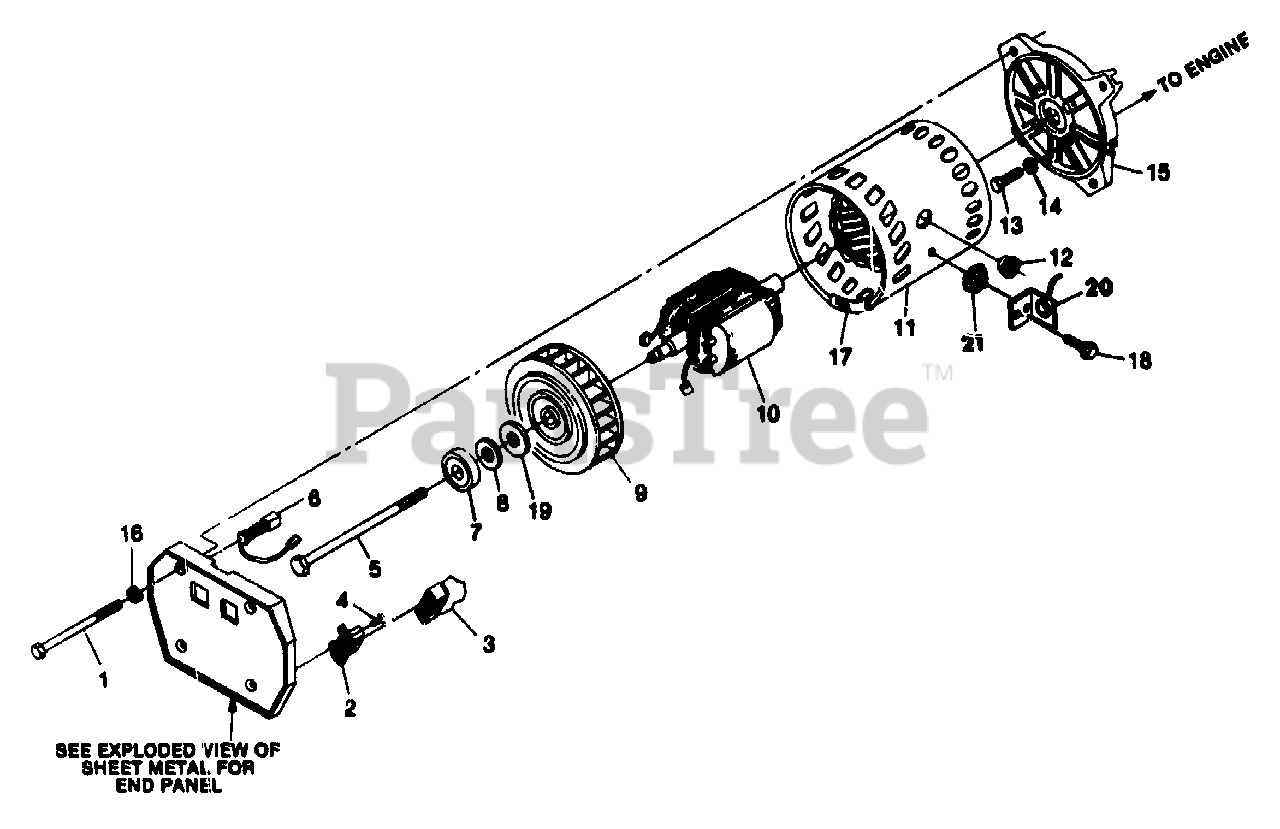

Generator Parts Diagram

  • Title

1

Briggs & Stratton 44395E

BOLT, Stator

Note: Contact Generac for quantity required

$

$

Not available

2

Briggs & Stratton 22694

HOUSING, Receptacle- White
(Superseded to 22694GS)

Note: Contact Generac for quantity required

$5.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW - No. 4 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 58885A

BOLT, Rotor

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 59606

BRUSH & LUG ASSY- Red

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 59606A

BRUSH & LUG ASSY- Neutral

Note: Contact Generac for quantity required

$

$

Not available

7

Briggs & Stratton 24049

BEARING, Rotor

Note: Contact Generac for quantity required

$

$

Not available

8

Briggs & Stratton 58886

WASHER, Fan Loading
(Superseded to 58886GS)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58888

FAN, Generator

Note: Contact Generac for quantity required

$

$

Not available

10

Briggs & Stratton 61798

ROTOR & FAN ASSY

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 63128

STATOR ASSY
(Superseded to 7063128YP)

Note: Contact Generac for quantity required

$108.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23484D

BUSHING, Snap- 0.87" diameter

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head 5/16"-24 x 3/4"

Note: Contact Generac for quantity required

$

$

Not available

14

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220D

HOUSING, Engine Adapter

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 61876

TRIM, Rubber- 3.5" long

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 24489

SCREW (Taptite)- No. 10-32 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 60221

WASHER (Felt)
(Superseded to 60221GS)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 45992

DIODE, Battery Charge
(Superseded to 5045992)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23762

WASHER, External Shakeproof No.10
(Superseded to 23762GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0
