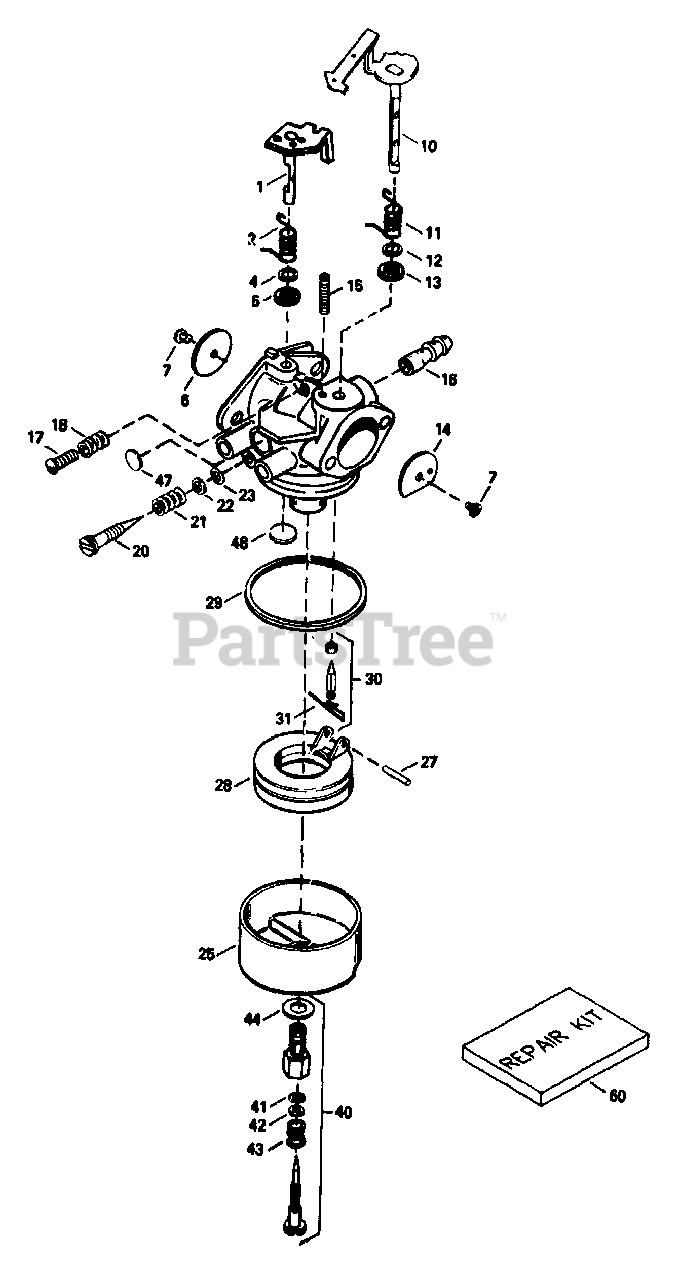

580.327020 (9450-0) - Craftsman 5,000 Watt Portable Generator Carburetor Parts Diagram

5,000 Watt Portable Generator

Carburetor Parts Diagram

  • Title

1

Briggs & Stratton 632243

THROTTLE SHAFT AND LEVER ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 632244

THROTTLE RETURN SPRING

$

$

Currently unavailable

4

Briggs & Stratton 631184

DUST SEAL WASHER

$

$

Currently unavailable

5

Briggs & Stratton 631971

DUST SEAL (THROTTLE)

$

$

Currently unavailable

6

Briggs & Stratton 632517

THROTTLE SHUTTLE

$

$

Currently unavailable

7

Briggs & Stratton 650506

THROTTLE & CHOKE SHUTTER SCREW

$

$

Currently unavailable

10

Briggs & Stratton 632603

CHOKE SHAFT & LEVER ASSEMBLY

$

$

Currently unavailable

11

Briggs & Stratton 632043

CHOKE RETURN SPRING

$

$

Currently unavailable

12

Briggs & Stratton 631184

DUST SEAL WASHER (CHOKE)

$

$

Currently unavailable

13

Briggs & Stratton 631183

DUST SEAL (CHOKE)

$

$

Currently unavailable

14

Briggs & Stratton 632248

CHOKE SHUTTER

$

$

Currently unavailable

15

Briggs & Stratton 630735

CHOKE POSITIONING SPRING

$

$

Currently unavailable

16

Briggs & Stratton 632164

FUEL FITTING

$

$

Currently unavailable

17

Briggs & Stratton 650417

IDLE SPEED SCREW

$

$

Currently unavailable

18

Briggs & Stratton 630766

TENSION SPRING

$

$

Currently unavailable

20

Briggs & Stratton 632281

IDLE MIXTURE SCREW

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

21

Briggs & Stratton 630766

IDLE TENSION SPRING

$

$

Currently unavailable

22

Briggs & Stratton 630739

IDLE SCREW WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 630740

"O" RING, IDLE SCREW

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

25

Briggs & Stratton 631867

FLOAT BOWL

$

$

Currently unavailable

27

Briggs & Stratton 631024

SHAFT, FLOAT

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

28

Briggs & Stratton 632019

FLOAT

$

$

Currently unavailable

29

Briggs & Stratton 631028

"O" RING, FLOAT BOWL-TO-BODY

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

30

Briggs & Stratton 631021

INLET NEEDLE, SEAT & SPRING CLIP

Note: (incl. No. 31) Included in Repair Kit, P/N 632347

$

$

Currently unavailable

31

Briggs & Stratton 631022

SPRING CLIP

$

$

Currently unavailable

40

Briggs & Stratton 632239

HIGH SPEED MIXTURE SCREW ASSY.

Note: (incl. Nos. 41, 42, 43, 44) Included in Repair Kit, P/N 632347

$

$

Currently unavailable

41

Briggs & Stratton 630740

"O" RING, HIGH SPEED MIXTURE SCREW

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

42

Briggs & Stratton 630739

WASHER, HIGH SPEED MIXTURE SCREW

$

$

Currently unavailable

43

Briggs & Stratton 630738

TENSION SPRING, HIGH SPEED MIXTURE SCREW

$

$

Currently unavailable

44

Briggs & Stratton 27110

BOWL NUT WASHER
(Superseded to 7027110YP)

Note: Included in Repair Kit, P/N 632347

$11.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 630748

WELCH PLUG, IDLE MIXING WELL

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

48

Briggs & Stratton 631027

WELCH PLUG, ATMOSPHERIC VENT

Note: Included in Repair Kit, P/N 632347

$

$

Currently unavailable

60

Briggs & Stratton 632347

REPAIR KIT

$

$

Currently unavailable
