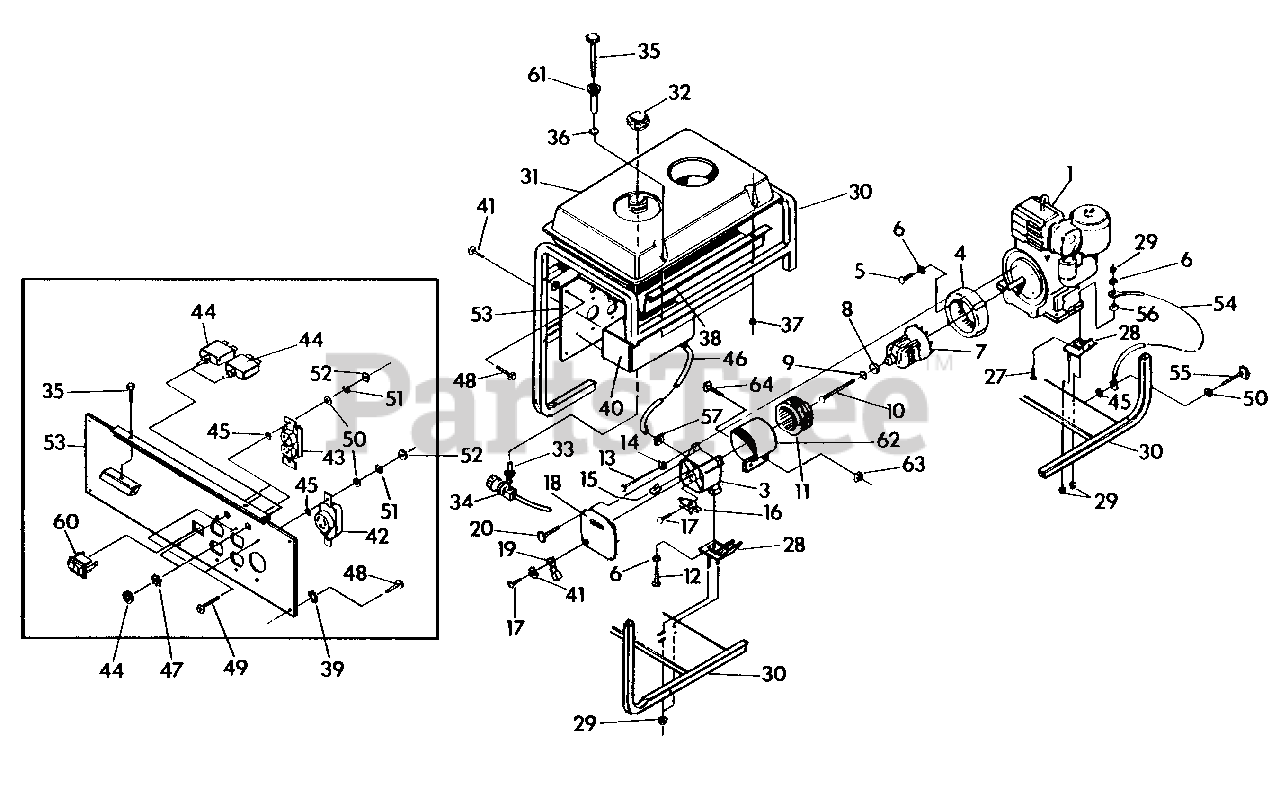

580.326980 (9447-1) - Craftsman 4,000 Watt Portable Generator Housing Parts Diagram

4,000 Watt Portable Generator

Housing Parts Diagram

  • Title

1

Briggs & Stratton 84391

TECUMSEH 8 HP L.O.S.

$

$

Currently unavailable

3

Briggs & Stratton 66825

REAR BEARING CARRIER

$

$

Currently unavailable

4

Briggs & Stratton 66365D

ADAPTOR, HOUSING
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22336

SCREW, 5/16"-24 x 3/4"

$

$

Not available

6

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 74715

ROTOR ASSEMBLY

$

$

Currently unavailable

8

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

WASHER, SPECIAL

$

$

Currently unavailable

10

Briggs & Stratton 24823

BOLT, 5/16"-24 x 7-7/8"
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84454

STATOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 70644

SCREW, PAN HEAD - M8-20
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66449E

BOLT, M6-1.0 x 115mm

$

$

Currently unavailable

14

Briggs & Stratton 22097

LOCK WASHER, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66850

BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66386

BRUSH HOLDER ASSEMBLY
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 66849

SCREW, M5-0.7 x 16mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 67025

COVER, BEARING CARRIER

$

$

Currently unavailable

19

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

20

Briggs & Stratton 74908

SCREW, M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 76222

SCREW, M8 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 52858

FLANGE LOCKNUT, M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 84237

CRADLE ASSEMBLY

$

$

Currently unavailable

31

Briggs & Stratton 77374

FUEL TANK

$

$

Currently unavailable

32

Briggs & Stratton 84510

CAP, FUEL TANK
(Superseded to 84510GS)

$29.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 80269

BUSHING, PLASTIC TANK

$

$

Currently unavailable

34

Briggs & Stratton 80270

VALVE, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 78831

SCREW, M6-1 0 x 70mm

$

$

Currently unavailable

36

Briggs & Stratton 78830

WASHER, SPECIAL BLACK
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 77395

NUT, HEX LOCK - M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 84324

HEAT SHIELD
(Superseded to 84324GS)

$108.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 22769

WASHER, SHAKEPROOF #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 84390

COVER, BACK PANEL

$

$

Currently unavailable

41

Briggs & Stratton 63036

CRIMPTITE, No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 68867

OUTLET, 120/240 VOLTS, 20 AMP TWISTLOCK
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 68759

OUTLET, 120V, 20A, DUPLEX
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 AMP
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

45

Briggs & Stratton 23365

WASHER, SHAKEPROOF #8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84409

SLEEVING - FLEXO

$

$

Currently unavailable

47

Briggs & Stratton 82881

INTERNAL LOCK WASHER
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 75494

SCREW, SELF-DRILLING

$

$

Not available

49

Briggs & Stratton 75475

SCREW, M4-0.7 x 10mm

$

$

Not available

50

Briggs & Stratton 38150

FLAT WASHER, No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22264

LOCK WASHER, No. 8

$

$

Not available

52

Briggs & Stratton 51715

NUT, HEX - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84239

CONTROL PANEL

$

$

Not available

54

Briggs & Stratton 10953621

GROUND WIRE

$

$

Currently unavailable

55

Briggs & Stratton 24911

SCREW, TAPTITE
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 27482

WASHER, SHAKEPROOF 5/16
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 82538

SWITCH, ROCKER - ON/OFF
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 83465

RUBBER TANK MOUNTS
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

62

Briggs & Stratton 81887B

ALTERNATOR WRAPPER

$

$

Not available

63

Briggs & Stratton 52856

LOCK NUT - M5-0.8
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 52618

SCREW, M5-0.8 x 12mm
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0
