580.326971 (9446-2) - Craftsman 2,400 Watt Portable Generator Repair Parts Drawing Number 84993 Parts Diagram

2,400 Watt Portable Generator

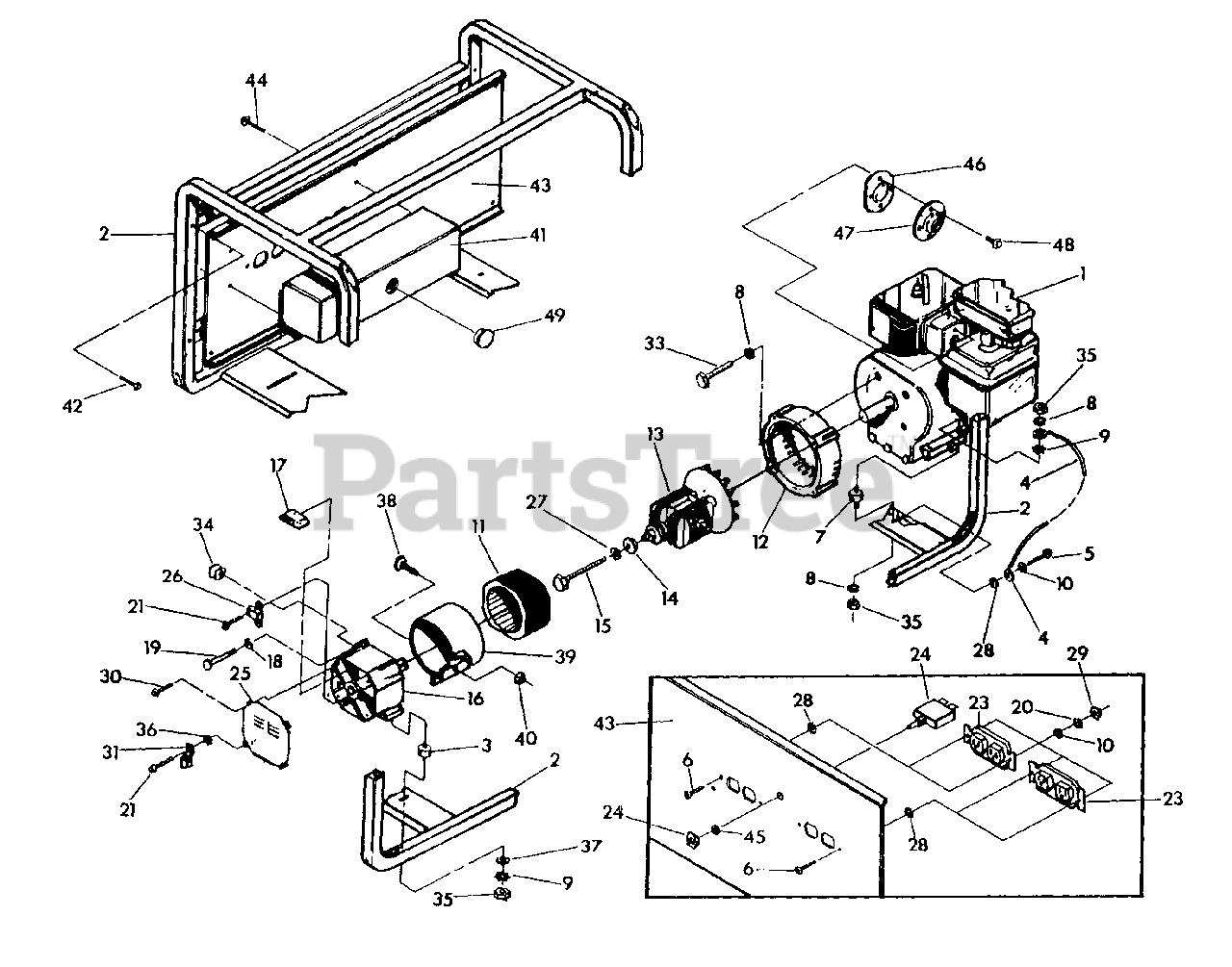

Repair Parts Drawing Number 84993 Parts Diagram

  • Title

1

Briggs & Stratton 84479

BRIGGS & STRATTON ENGINE
(Superseded to 84479GS)

$14.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84236

CRADLE ASSEMBLY

$

$

Currently unavailable

3

Briggs & Stratton 66443B

MOUNT, VIBRATION
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 10953621

GROUND WIRE

$

$

Currently unavailable

5

Briggs & Stratton 24911

SCREW, TAPTITE - No. 8 x 3/8"
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

SCREW, PAN HEAD MACHINE - M4-0.7 X 10mm

$

$

Not available

7

Briggs & Stratton 66443A

MOUNT, VIBRATION

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

WASHER, SHAKEPROOF - 5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

WASHER, FLAT - No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 77258

STATOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 66365F

HOUSING, ENGINE ADAPTOR
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

ROTOR ASSEMBLY

$

$

Currently unavailable

14

Briggs & Stratton 65791

BALL BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, ROTOR - 5/16" x 6-1/4"

$

$

Not available

16

Briggs & Stratton 68825

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 68850

BOARD, BRIDGE RECTIFIER CIRCUIT

$

$

Not available

18

Briggs & Stratton 22097

LOCK WASHER - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

BOLT, STATOR - M6-1.0 x 80mm

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCK WASHER - No. 8

$

$

Not available

21

Briggs & Stratton 66849

SCREW (TAPTITE) - M5-0.8 x 15mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

RECEPTACLE - 120 VOLTS AC, 20 AMP
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

24

Briggs & Stratton 75207

BREAKER, CIRCUIT - 20 AMP
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

25

Briggs & Stratton 67025

COVER, BEARING CARRIER

$

$

Currently unavailable

26

Briggs & Stratton 66286

HOLDER ASSEMBLY, BRUSH

$

$

Currently unavailable

27

Briggs & Stratton 67451

FLAT WASHER (SPECIAL)

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER (SERRATED) - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, HEX - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW (TAPTITE), M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

33

Briggs & Stratton 22336

SCREW, HEX HEAD - 5/16" x 3/4"

$

$

Not available

34

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

NUT, HEX - M8-1.25

$

$

Not available

36

Briggs & Stratton 22769

WASHER, SHAKE-PROOF - No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

FLAT WASHER - M8

$

$

Not available

38

Briggs & Stratton 52618

SCREW, HEX HEAD - M5-0.8 X 12mm
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 81887A

ALTERNATOR WRAPPER
(Superseded to 81887AGS)

$18.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 52856

NUT, LOCKING - M5-0.8
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 75935

COVER, BACK PANEL

$

$

Currently unavailable

42

Briggs & Stratton 75494

SCREW, HEX HEAD - No. 10-24 SELF-DRILLING

$

$

Not available

43

Briggs & Stratton 84238

CONTROL PANEL
(Superseded to 84238GS)

$

$

Not available

44

Briggs & Stratton 63036

SCREW (CRIMPTITE) - No. 8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 82881

INTERNAL LOCK WASHER
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 77601

SCREEN, SPARK ARRESTOR
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77836

SPARK ARRESTOR DEFLECTOR
(Superseded to 77836GS)

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 77836A

DEFLECTOR SCREW
(Superseded to 77836AGS)

$1.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66169

3/4" PLUG BUTTON

$

$

Currently unavailable
