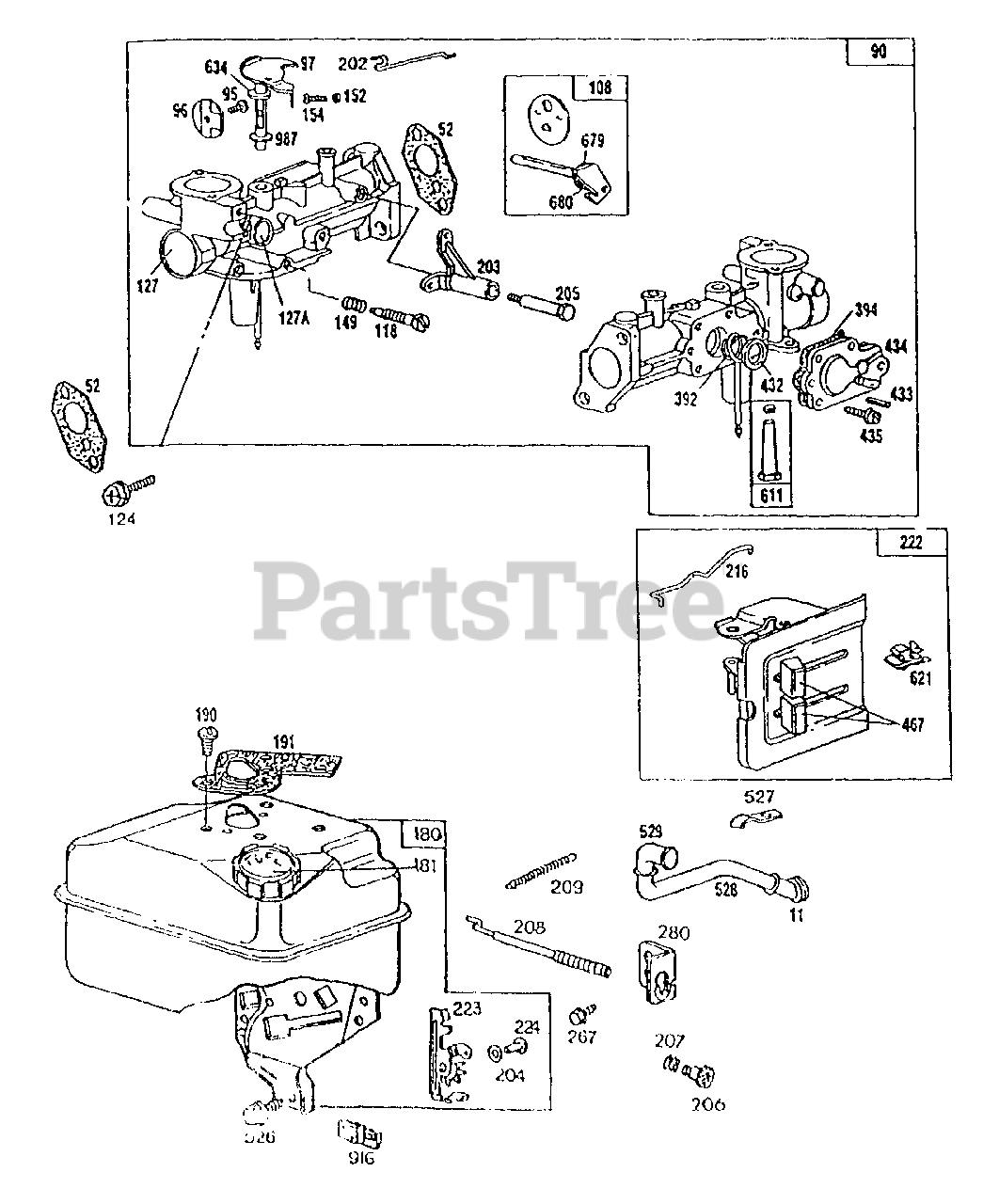

580.326971 (9446-1) - Craftsman 2,400 Watt Portable Generator Carburetor & Tank Parts Diagram

2,400 Watt Portable Generator

Carburetor & Tank Parts Diagram

  • Title

11

Briggs & Stratton 66578

Breather Tube Grommet
(Superseded to 692187)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 20+

0

52

Briggs & Stratton 271936

Carburetor Mounting Gasket
(Superseded to 273113S)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 18

0

90

Briggs & Stratton 492610

Carburetor Assembly

Note: Contact Generac for quantity required

$

$

Not available

95

Briggs & Stratton 93499

Throttle-Valve-to-Shaft Screw
(Superseded to 691437)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223793

Carburetor Throttle
(Superseded to 691743)

Note: Contact Generac for quantity required

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 490048

Throttle Shaft and Lever
(Superseded to 692325)

Note: Contact Generac for quantity required

$16.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 491177

Choke Valve Group

Note: Contact Generac for quantity required

$

$

Not available

118

Briggs & Stratton 231533

Needle Valve
(Superseded to 691777)

Note: Contact Generac for quantity required

$17.99

$

In Stock, only 2 left!

0

124

Briggs & Stratton 93357

Hex Head Screw
(Superseded to 690953)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

Welch Plug
(Superseded to 691718)

Note: Contact Generac for quantity required

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

Welch Plug (Mixing Chamber)
(Superseded to 691742)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 2 left!

0

149

Briggs & Stratton 26336

Needle Valve Spring
(Superseded to 691592)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 280575

Throttle Adjustment Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

154

Briggs & Stratton 93527

Round Head Screw 5-40 x 5/8"
(Superseded to 691624)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 492927

Fuel Tank Assembly
(Superseded to 694315)

Note: Contact Generac for quantity required

$

$

Not available

181

Briggs & Stratton 490075

Fuel Tank Cap
(Superseded to 494559)

Note: Contact Generac for quantity required

$

$

Not available

190

Briggs & Stratton 94094

Fuel Tank Mounting Screw
(Superseded to 692200)

Note: Contact Generac for quantity required

$

$

Not available

191

Briggs & Stratton 271928

Fuel Tank Mounting Gasket
(Superseded to 272996)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

202

Briggs & Stratton 262270

Throttle Link
(Superseded to 691812)

Note: Contact Generac for quantity required

$8.99

$

In Stock, only 1 left!

0

203

Briggs & Stratton 280720

Bell Crank
(Superseded to 691906)

Note: Contact Generac for quantity required

$7.99

$

In Stock, only 1 left!

0

204

Briggs & Stratton 222962

Governor Lever Bushing (flat)

Note: Contact Generac for quantity required

$1.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 231520

Shoulder Screw
(Superseded to 691776)

Note: Contact Generac for quantity required

$

$

Not available

206

Briggs & Stratton 231266

Control Rod Nut -- No. 6-32
(Superseded to 691771)

Note: Contact Generac for quantity required

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Control Rod Spring
(Superseded to 692522)

Note: Contact Generac for quantity required

$

$

Not available

208

Briggs & Stratton 262279

Control Rod
(Superseded to 691813)

Note: Contact Generac for quantity required

$

$

Not available

209

Briggs & Stratton 262285

Governor Spring
(Superseded to 691817)

Note: Contact Generac for quantity required

$8.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 262359

Choke Link
(Superseded to 691824)

Note: Contact Generac for quantity required

$9.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 490649

Control Bracket

Note: Contact Generac for quantity required

$

$

Not available

223

Briggs & Stratton 2232465

Governor Control Lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

224

Briggs & Stratton 93491

Governor Control Lever Rivet

Note: Contact Generac for quantity required

$1.49

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 93496

Screw
(Superseded to 690804)

Note: Contact Generac for quantity required

$

$

Not available

280

Briggs & Stratton 223798

Control Rod Bracket
(Superseded to 691184)

Note: Contact Generac for quantity required

$7.49

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 262328

Fuel Pump Spring
(Superseded to 691823)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 2 left!

0

394

Briggs & Stratton 270026

Diaphragm

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

Spring Cap
(Superseded to 690766)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 4 left!

0

433

Briggs & Stratton 93265

Spring Cap
(Superseded to 690296)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Diaphragm Cover
(Superseded to 691713)

Note: Contact Generac for quantity required

$10.99

$

In Stock, only 2 left!

0

435

Briggs & Stratton 93141

Diaphragm Cover Screw
(Superseded to 691619)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 280715

Control Knob
(Superseded to 692295)

Note: Contact Generac for quantity required

$9.49

$

In Stock, only 4 left!

0

526

Briggs & Stratton 94409

Tank Bracket Mounting Screw
(Superseded to 691685)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 6

0

527

Briggs & Stratton 223786

Breather Tube Clamp
(Superseded to 691741)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231526

Breather Tube NOTE: 231550 -- Breather Tube
(Superseded to 231550)

Note: Contact Generac for quantity required

$

$

Not available

529

Briggs & Stratton 67836

Breather Tube Grommet

Note: Contact Generac for quantity required

$

$

Currently unavailable

611

Briggs & Stratton 391813

Fuel Pipe and Clip Assembly

Note: Contact Generac for quantity required

$

$

Not available

621

Briggs & Stratton 396847

Stop Switch
(Superseded to 692310)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 271853

Throttle Shaft Washer (foam)
(Superseded to 692279)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 3 left!

0

679

Briggs & Stratton 270832

Choke Shaft Washer (foam)

Note: Contact Generac for quantity required

$

$

Currently unavailable

680

Briggs & Stratton 221839

Choke Shaft Washer (brass)
(Superseded to 690401)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 1 left!

0

916

Briggs & Stratton 280321

Governor Gear Rack
(Superseded to 691900)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Throttle Shaft Geal
(Superseded to 692279)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 3 left!

0
