580.326970 (9446-0) - Craftsman 2,400 Watt Portable Generator Engine Parts Diagram

2,400 Watt Portable Generator

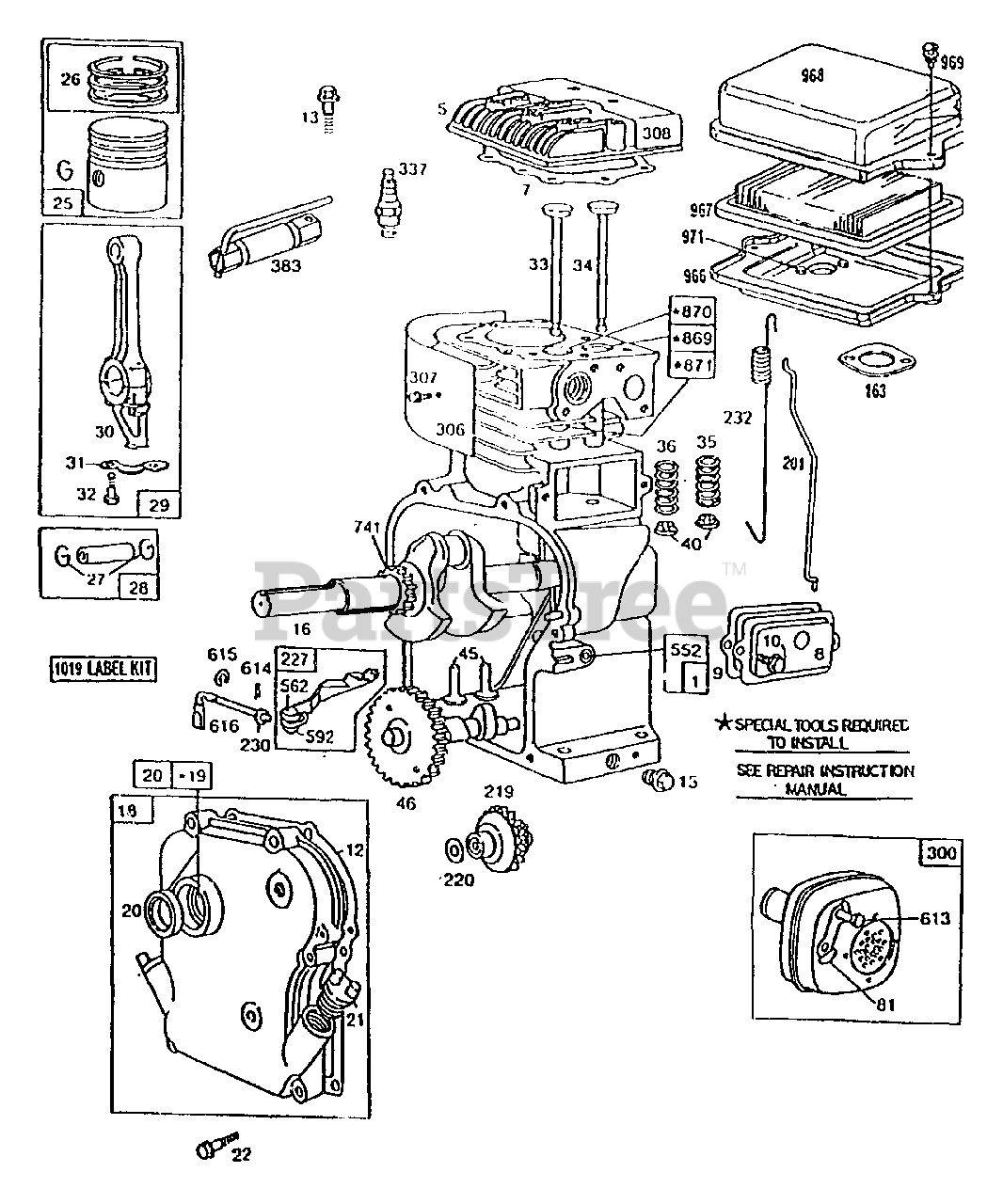

Engine Parts Diagram

  • Title

1

Briggs & Stratton 396765

Cylinder Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 211542

Cylinder Head
(Superseded to 691716)

Note: Contact Generac for quantity required

$

$

Not available

7

Briggs & Stratton 270383

Cylinder Head Gasket
(Superseded to 272157S)

Note: Contact Generac for quantity required

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 294178

Breather - Valve Chamber
(Superseded to 791779)

Note: Contact Generac for quantity required

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27459

Valve Cover Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 93394

Screw - Breather Mounting Sem
(Superseded to 691666)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270080

Crankcase Gasket (0.015" thick)
(Superseded to 692213)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 93368

Cylinder Head Screw - 2-3/32"
(Superseded to 691640)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 12

0

15

Briggs & Stratton 94174

Oil Drain Plug (magnetic)
(Superseded to 691663)

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 397104

Crankshaft
(Superseded to 494035)

Note: To replace crankshaft pin, order Part No. 397090

$178.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 298204

Crankcase Cover Assembly
(Superseded to 493610)

Note: Contact Generac for quantity required

$96.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing -- Crankcase Cover

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 393812

Oil Seal

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Oil Filler Plug
(Superseded to 281658S)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Crankcase Cover Mounting Screw
(Superseded to 692551)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93656

Stud
(Superseded to 691120)

Note: Contact Generac for quantity required

$12.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298904

Piston Assembly
(Superseded to 793214)

Note: Contact Generac for quantity required

$

$

Not available

26

Briggs & Stratton 298982

Ring Set

Note: Contact Generac for quantity required

$48.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 26026

Piston Pin Lock
(Superseded to 691588)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Piston Pin Assembly

Note: Contact Generac for quantity required

$8.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 299430

Connecting Rod Assembly

Note: Contact Generac for quantity required

$40.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221890

Connecting Rod Dipper
(Superseded to 691759)

Note: Contact Generac for quantity required

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Connecting Rod Screw Lock

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Connecting Rod Screw
(Superseded to 691664)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Exhaust Valve
(Superseded to 211119S)

Note: Contact Generac for quantity required

$

$

Not available

34

Briggs & Stratton 261044

Intake Valve
(Superseded to 261044S)

Note: Contact Generac for quantity required

$

$

Not available

35

Briggs & Stratton 260552

Intake Valve Spring
(Superseded to 690520)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

Exhaust Valve Spring
(Superseded to 692180)

Note: Contact Generac for quantity required

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Valve Spring Retainer
(Superseded to 692194)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Valve Tappet
(Superseded to 690509)

Note: Contact Generac for quantity required

$

$

Not available

46

Briggs & Stratton 212733

Cam Gear
(Superseded to 691164)

Note: Contact Generac for quantity required

$59.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 222263

Screw Lock
(Superseded to 691729)

Note: Contact Generac for quantity required

$5.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 271935

Air Cleaner Mounting Gasket
(Superseded to 271935S)

Note: Contact Generac for quantity required

$6.49

$

In Stock, Qty 13

0

201

Briggs & Stratton 262280

Governor Link
(Superseded to 691814)

Note: Contact Generac for quantity required

$10.99

$

In Stock, only 1 left!

0

219

Briggs & Stratton 391737

Governor Gear

Note: Contact Generac for quantity required

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Thrust Washer
(Superseded to 691724)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 490374

Governor Lever Assembly
(Superseded to 690653)

Note: Contact Generac for quantity required

$16.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Governor Lever Washer
(Superseded to 691691)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 262288

Return Spring
(Superseded to 691818)

Note: Contact Generac for quantity required

$

$

Not available

300

Briggs & Stratton 393615

Exhaust Muffler
(Superseded to 494585)

Note: Contact Generac for quantity required

$23.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 221511

Cylinder Shield
(Superseded to 694514)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93490

Cylinder Shield Mounting Screw
(Superseded to 691660)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 11

0

308

Briggs & Stratton 221512

Cylinder Head Cover
(Superseded to 694514)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 492167

Spark Plug -- 1-7/8" high, 48mm
(Superseded to 796112S)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Spark Plug Wrench
(Superseded to 89838S)

Note: Contact Generac for quantity required

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 231079

1/4" dia. Governor Crank Bushing
(Superseded to 690508)

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Governor Lever Bolt

Note: Contact Generac for quantity required

$

$

Not available

592

Briggs & Stratton 231082

No. 10-24 Hex Nut
(Superseded to 691251)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 93935

Hex Head Shoulder Screw
(Superseded to 691413)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Hair Pin Cotter
(Superseded to 691620)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

E-Ring Retainer

Note: Contact Generac for quantity required

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Governor Crank (1/4" dia.)
(Superseded to 692016)

Note: Contact Generac for quantity required

$

$

Not available

741

Briggs & Stratton 261696

Timing Gear (plain bearing)

Note: Contact Generac for quantity required

$52.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Intake Valve Seat
(Superseded to 691705)

Note: Contact Generac for quantity required

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Exhaust Valve Seat
(Superseded to 691701)

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Exhaust Valve Guide

Note: Contact Generac for quantity required

$31.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 490074

Air Cleaner Base
(Superseded to 494279)

Note: Contact Generac for quantity required

$

$

Not available

967

Briggs & Stratton 399959

Air Filter
(Superseded to 491588S)

Note: Contact Generac for quantity required

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 223765

Air Cleaner Cover
(Superseded to 791082)

Note: Contact Generac for quantity required

$20.99

$

In Stock, Qty 13

0

969

Briggs & Stratton 490073

Cover Mounting Screw
(Superseded to 694515)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 8

0

971

Briggs & Stratton 94018

Air Cleaner Screw
(Superseded to 690859)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 8

0

1019

Briggs & Stratton 491100

Decal (label) Kit

Note: Contact Generac for quantity required

$34.99

$

Usually ships in 2-12 days

0
