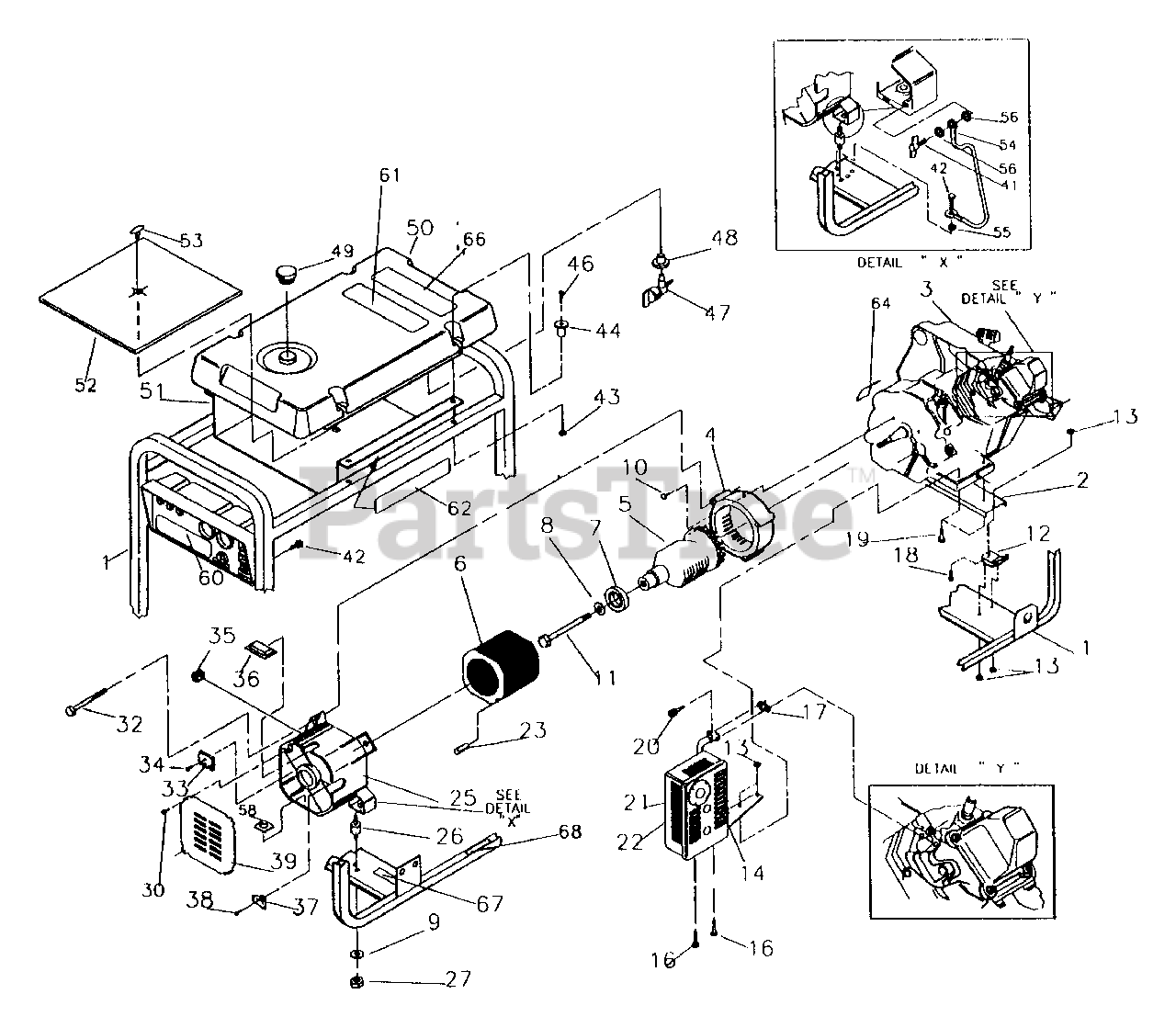

580.326740 (0453-0) - Craftsman 4,200 Watt Portable Generator Generator Parts Diagram

4,200 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 97915

CRADLE XL

$

$

Currently unavailable

2

Briggs & Stratton 84021

ENGINE SUPPORT
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton ENG98912

ENGINE - 7.8 H.P. XL

$

$

Currently unavailable

4

Briggs & Stratton 66365

ENGINE ADAPTER HOUSING
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141

ROTOR ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 83540

STATOR ASSEMBLY

$

$

Currently unavailable

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 FLAT WASHER

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

5/16-24 X 3/4 HEX HEAD MACH. SCREW
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480

5/16-24 X 7 HEX HEAD CAP SCREW
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84506

45§ VIBRATION MOUNT

$

$

Currently unavailable

13

Briggs & Stratton 52858

M8 LOCKING NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

MUFFLER BRACKET
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

M6-1.00 X 12 HEX HEAD MACH. SCREW WITH LOCK WASHER
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80314

EXHAUST GASKET
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

M8-1.25 X 20 PHILLIPS PAN HEAD MACH. SCREW
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8-35 PHILLIPS PAN HEAD MACH. SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

M8-1.25 X 20 SOCKET HEAD CAP SCREW

$

$

Not available

21

Briggs & Stratton 83083

SPARK ARRESTOR SCREEN
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 83071

MUFFLER
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

M4 X 10 ROLL PIN
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

REAR BEARING CARRIER

$

$

Currently unavailable

26

Briggs & Stratton 85652

VIBRATION MOUNT
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 45771

M8 HEX NUT

$

$

Not available

30

Briggs & Stratton 74908

M5-0.8 X 10 TAPTITE
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

M6-1.0 X 115 STATOR BOLT
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

M5-0.7 X 20 TAPTITE
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

DRIVE MODULE
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 66386

BRUSH HOLDER ASSEMBLY
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

M5-0.7 X 16 TAPTITE
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 67025

BEARING CARRIER COVER

$

$

Currently unavailable

41

Briggs & Stratton 86494

M6-1.0 X 16 WING SCREW
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

10-16 X SELF DRILLING CAP SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

M6 FLANGE LOCK NUT
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

TANK GROMMET
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831B

M6-1.0 X 60 BLACK MACH. SCREW
(Superseded to 78831BGS)

$

$

Not available

47

Briggs & Stratton 80270

VALVE TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299

PLASTIC TANK BUSHING
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134

FUEL CAP
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 83311

FUEL TANK

$

$

Currently unavailable

51

Briggs & Stratton 84042

HEAT SHEILD

$

$

Currently unavailable

52

Briggs & Stratton 84687

#2 1/4" INSULATION
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

CLIP INSULATION
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 4353621

GROUND WIRE

$

$

Currently unavailable

55

Briggs & Stratton 23762

#10 SHAKEPROOF
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850

M6 SHAKEPROOF

$

$

Not available

58

Briggs & Stratton 57593

CABLE TIE MOUNT
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 97190

CONTROL PANEL DECAL
(Superseded to 97190GS)

$10.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 92982

DANGER DECAL
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 97191

HEAT SHIELD DECAL
(Superseded to 97191GS)

$6.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 78817

DATA DECAL
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 93826

START DECAL
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 96409

1-800 DECAL
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 77816

MUFFLER WARNING DECAL
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0
