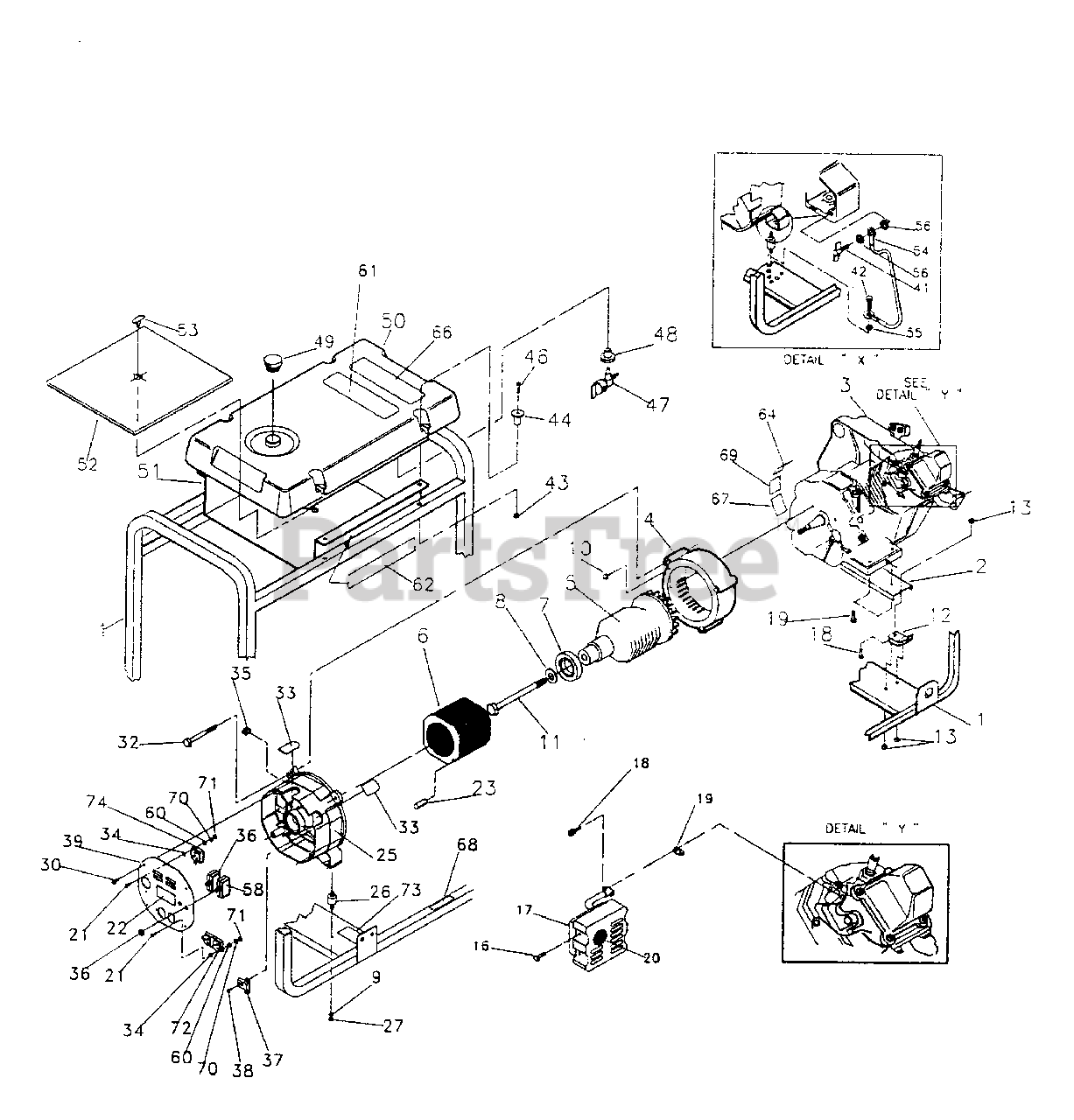

580.326720 (0452-0) - Craftsman 3,250 Watt Portable Generator Generator Parts Diagram

3,250 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 97195

CRADLE-XL
(Superseded to 97195GS)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84021

ENGINE SUPPORT
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton ENG98701

GN191 6.5HP ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 66365

ENGINE ADAPTOR HOUSING
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141G

ROTOR ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 91838G

STATOR ASSEMBLY

$

$

Currently unavailable

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 FLAT WASHER

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

5/16-24 X 3/4 HEX HEAD MACH. SCREW
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 52122

5/16-24 X 6.5" HEX HEAD CAP SCREW

$

$

Currently unavailable

12

Briggs & Stratton 84508

45§ VIBRATION MOUNT
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

M8 LOCKING NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 66476

M6-1.00 X 12 HEX HEAD MACH. SCREW WITH LOCK WASHER
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 88688

MUFFLER ASSEMBLY
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 40976

M8-1.25 X 20 SOCKET HEAD CAPSCREW

$

$

Not available

19

Briggs & Stratton 89476

EXHAUST GASKET
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83083

SPARK ARRESTOR SCREEN
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

21

Briggs & Stratton 75475

M4-0.7 X 10 PHILLIPS PAN HEAD MACH. SCREW

$

$

Not available

22

Briggs & Stratton 98247

CONTROL PANEL DECAL

$

$

Not available

23

Briggs & Stratton 81917

M4 X 10 ROLL PIN
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

REAR BEARING CARRIER

$

$

Currently unavailable

26

Briggs & Stratton 85652

VIBRATION MOUNT
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 45771

M8 HEX NUT

$

$

Not available

30

Briggs & Stratton 74908

M5-0.8 X 10 TAPTITE
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

M6-1.0 X 115 STATOR BOLT
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84242

GROMMET
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 23365

#8 SHAKEPROOF WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 94396B

20AMP. CIRCUIT BREAKER
(Superseded to 94396BGS)

$30.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 91825

BRUSH HOLDER ASSEMBLY

$

$

Not available

38

Briggs & Stratton 66849

M5-0.7 X 16 TAPTITE
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 95600

CONTROL PANEL COVER
(Superseded to 95600GS)

$24.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494

M6-1.0 X 16 WING SCREW
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

#10 x 16 SELF DRILLING CAP SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

M6 FLANGE LOCK NUT
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

TANK GROMMET
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831B

M6-1.0 X 60 BLACK HEX HEAD MACH. SCREW
(Superseded to 78831BGS)

$

$

Not available

47

Briggs & Stratton 80270

TANK VALVE
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299

PLASTIC TANK BUSHING
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134

FUEL CAP
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 83311

FUEL TANK

$

$

Currently unavailable

51

Briggs & Stratton 84042

HEAT SHIELD

$

$

Currently unavailable

52

Briggs & Stratton 84687

#2 1/4" INSULATION
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

CLIP INSULATION
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

14353621

GROUND WIRE

$

$

Not available

55

Briggs & Stratton 23762

#10 SHAKEPROOF
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850

M6 SHAKEPROOF

$

$

Not available

58

Briggs & Stratton 94396A

15AMP CIRCUIT BREAKER
(Superseded to 94396AGS)

$35.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 38150

#8 FLAT WASHER
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 92982

DANGER DECAL
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 98703

HEAT SHIELD DECAL

$

$

Not available

64

Briggs & Stratton 94603B

EMISSION CONTROL DECAL

$

$

Currently unavailable

66

Briggs & Stratton 93826

START DECAL
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 96409

1-800 DECAL
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 77816

MUFFLER WARNING DECAL
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 98717

DATA SHEET CODE DECAL

$

$

Currently unavailable

70

Briggs & Stratton 22264

#8 LOCK WASHER

$

$

Not available

71

Briggs & Stratton 51715

M4-0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 68759

120V. 20A. DUPLEX OUTLET
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

73

Briggs & Stratton 77026

DATA DECAL

$

$

Currently unavailable

74

Briggs & Stratton 68867

120/240V. 20A TWISTLOCK
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0
