580.326700 (0451-0) - Craftsman 2,400 Watt Portable Generator Generator Parts Diagram

2,400 Watt Portable Generator

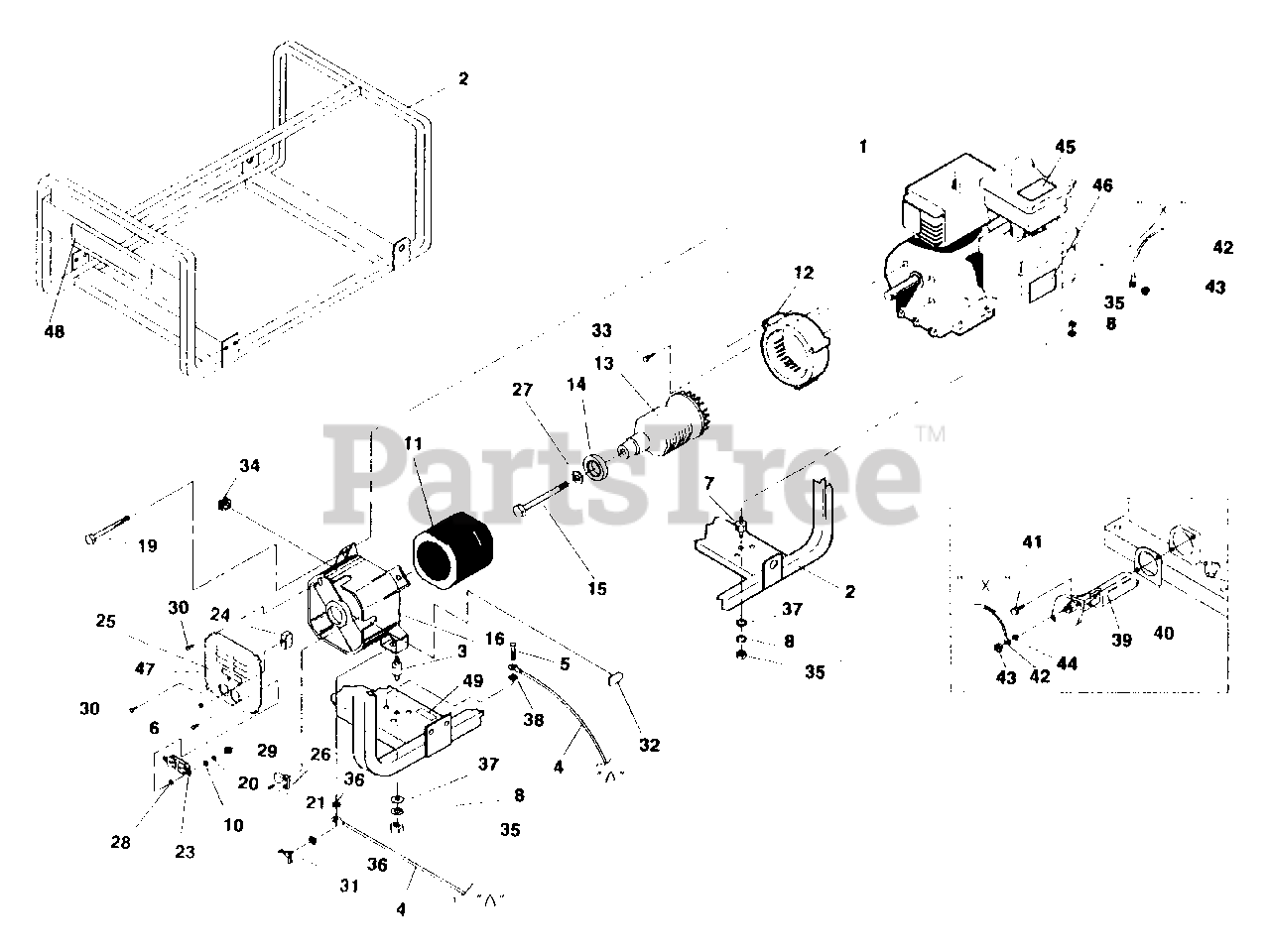

Generator Parts Diagram

  • Title

1

Briggs & Stratton 96297

BRIGGS & STRATTON ENGINE

$

$

Currently unavailable

2

Briggs & Stratton 91018

CRADLE ASSEMBLY

$

$

Not available

3

Briggs & Stratton 85652

MOUNT, VIBRATION
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

4

14353621

GROUND WIRE

$

$

Not available

5

Briggs & Stratton 86292

CAPSCREW, SELF-DRILLER -- No. 10
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

SCREW, PAN HEAD MACHINE -- M4-0.7 X 10mm

$

$

Not available

7

Briggs & Stratton 85651

MOUNT, VIBRATION
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

WASHER, FLAT - No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91824

STATOR ASSEMBLY
(Superseded to 7091824YP)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365F

HOUSING, ENGINE ADAPTOR
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91820

ROTOR ASSEMBLY

$

$

Not available

14

Briggs & Stratton 65791

BALL BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, ROTOR - 5/16" x 6-1/4"

$

$

Not available

16

Briggs & Stratton 68825B

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 86308D

BOLT, STATOR - M6-1.0 x 85mm
(Superseded to 86308DGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCK WASHER - No. 8

$

$

Not available

21

Briggs & Stratton 66849

SCREW (TAPTITE) - M5-0.8 x 15mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

RECEPTACLE - 120 VOLTS AC, 20 AMP
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

BREAKER, CIRCUIT - 20 AMP
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72092

RECEPTACLE PANEL
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91825

BRUSH AND BRIDGE RECTIFIER

$

$

Not available

27

Briggs & Stratton 67451

FLAT WASHER, SPECIAL

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER, SERRATED - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, HEX - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, TAPTITE, M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

WING SCREW, M6-1.0 X 16mm
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

RUBBER GROMMET
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

SCREW, HEX HEAD - 5/16" x 3/4"
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

NUT, HEX - M8-1.25

$

$

Not available

36

Briggs & Stratton 26850

WASHER, SHAKE-PROOF - M6

$

$

Not available

37

Briggs & Stratton 22145

FLAT WASHER - M8

$

$

Not available

38

Briggs & Stratton 22769

SHAKEPROOF WASHER - No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 88977

LOW OIL SHUTDOWN SWITCH

$

$

Currently unavailable

40

Briggs & Stratton 91841

LOW OIL SHUTDOWN GASKET

$

$

Not available

40

Briggs & Stratton 52856

NUT, LOCKING - M5-0.8
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 24679

SCREW, HEX HEAD - No. 10-32 x 3/4"
(Superseded to 24679GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91842A

LOW OIL SHUTDOWN WIRE
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22471

No. 8-32 NUT
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 23365

No. 8 SHAKEPROOF WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93639

DECAL - DANGER

Note: ENGLISH

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93640

DECAL - DANGER

Note: SPANISH

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 98247

DECAL - CONTROL PANEL

$

$

Not available

48

Briggs & Stratton 98246

DECAL - SEARS 2400

$

$

Currently unavailable

49

Briggs & Stratton 96409

DECAL - "1-800 NUMBER"
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0
