580.325601 (1796-1) - Craftsman 5,600 Watt Portable Generator Main Unit Parts Diagram

5,600 Watt Portable Generator

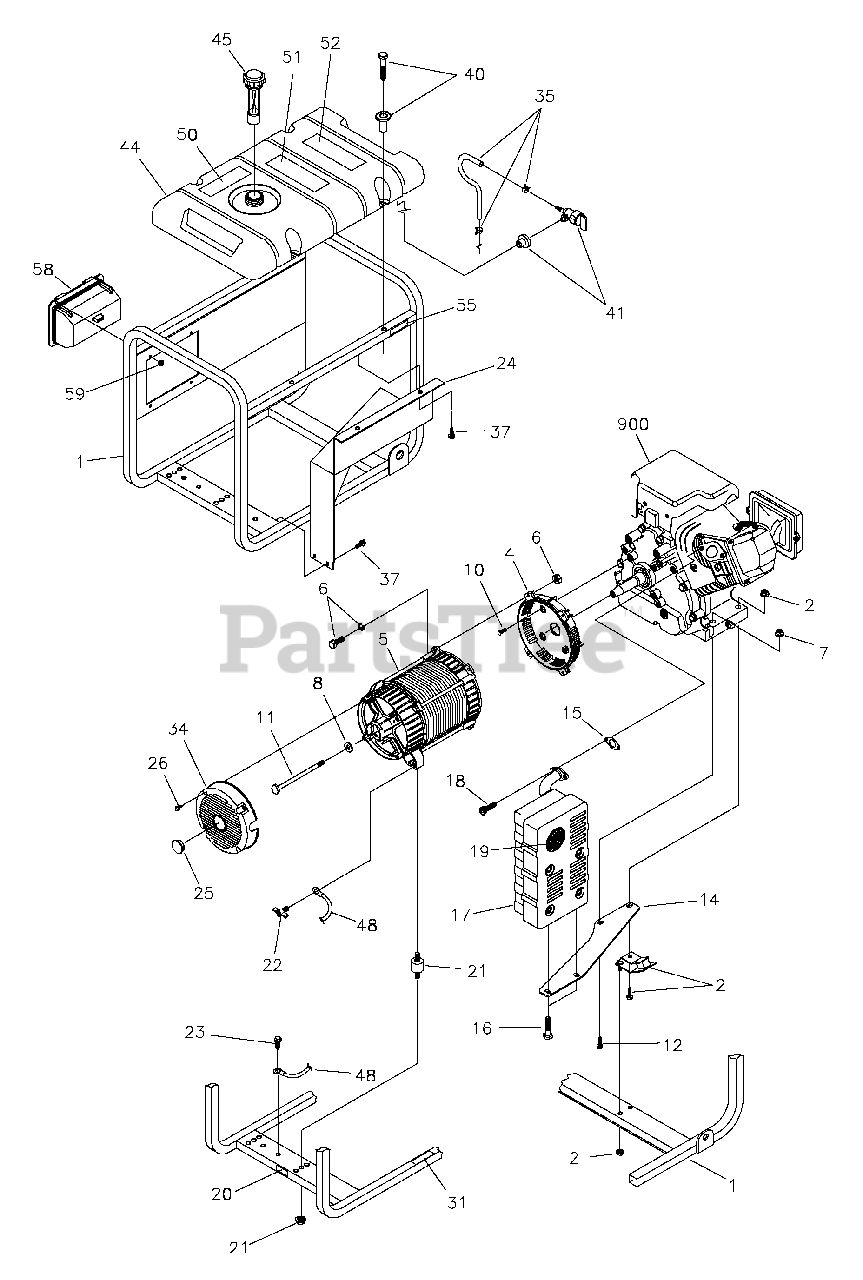

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M197628GS

CRADLE

$133.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 197564GS

KIT, Vibration Mount, 45° Srv

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hardware Mount, Aptr.

$22.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

PPHMS, M8 - 1.25 x 40

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

HHCS, M6 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Mount, Vibration. Alt. Srv

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192794GS

SHIELD, Heat

$79.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10 Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194397GS

KIT, Fuel Hose, Formed, Srv

$

$

Not available

37

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Hardware Fuel Tank

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Tank, Srv

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 73054GS

DECAL, Shut-Off, Fuel

$8.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

Briggs & Stratton 189165GS

NUT, Palnut, 3/16"

$3.49

$

In Stock, only 2 left!

0

900

NSP

ENGINE (204412-0147-E1)

$

$

Not available

Briggs & Stratton 191646GS

DECAL, Set

Note: Not Illustrated

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061GS

BOTTLE, Oil, 28 oz
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197127GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197267GS

DECAL, Ratings Label

Note: Not Illustrated

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932688GS

Cord Wrap Kit
(Superseded to 84883GS)

Note: Optional Accessories

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932785GS

Storage Cover
(Superseded to B4767GS)

Note: Optional Accessories

$108.99

$

Usually ships in 2-12 days

0
