580.325601 (1796-1) - Craftsman 5,600 Watt Portable Generator Control Panel Parts Diagram

5,600 Watt Portable Generator

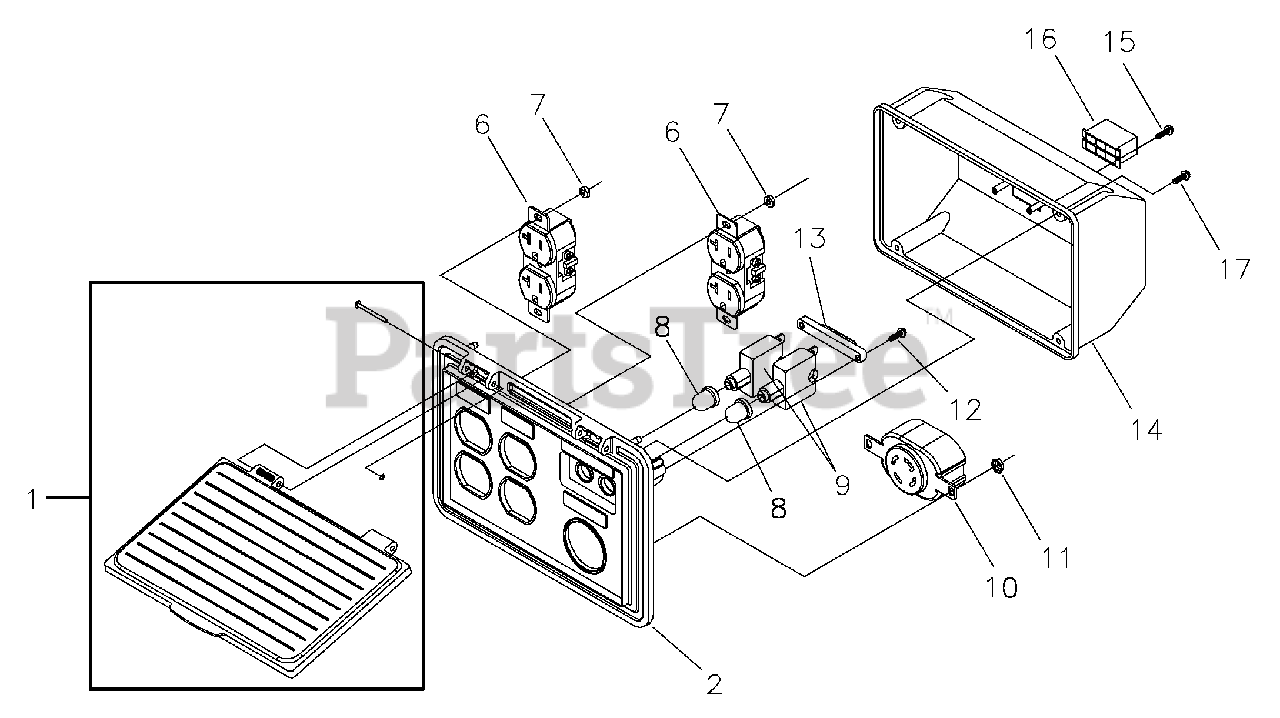

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 195112GS

KIT, Control Panel Lid

$

$

Not available

2

Briggs & Stratton 188889GS

CONTROL PANEL, Compact

$

$

Not available

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

7

NUT, Palnut, Pushnut, 5/32

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 75207GS

BREAKER, Circuit
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240V, Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

11

NUT, Palnut, Pushnut, 3/16

Note: (Purchase locally)

$

$

Not available

12

SCREW, Phillips, Head 3.5 x 18

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 188890GS

COVER, Back, Control Panel

$

$

Not available

15

SCREW, Self Tapping, STC 3 x 18

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

In Stock, only 1 left!

0

17

SCREW, Phillips, 3.5 x 14

Note: (Purchase locally)

$

$

Not available
