580.323611 (030250-1) - Craftsman 3,600 Watt Portable Generator Alternator Parts Diagram

3,600 Watt Portable Generator

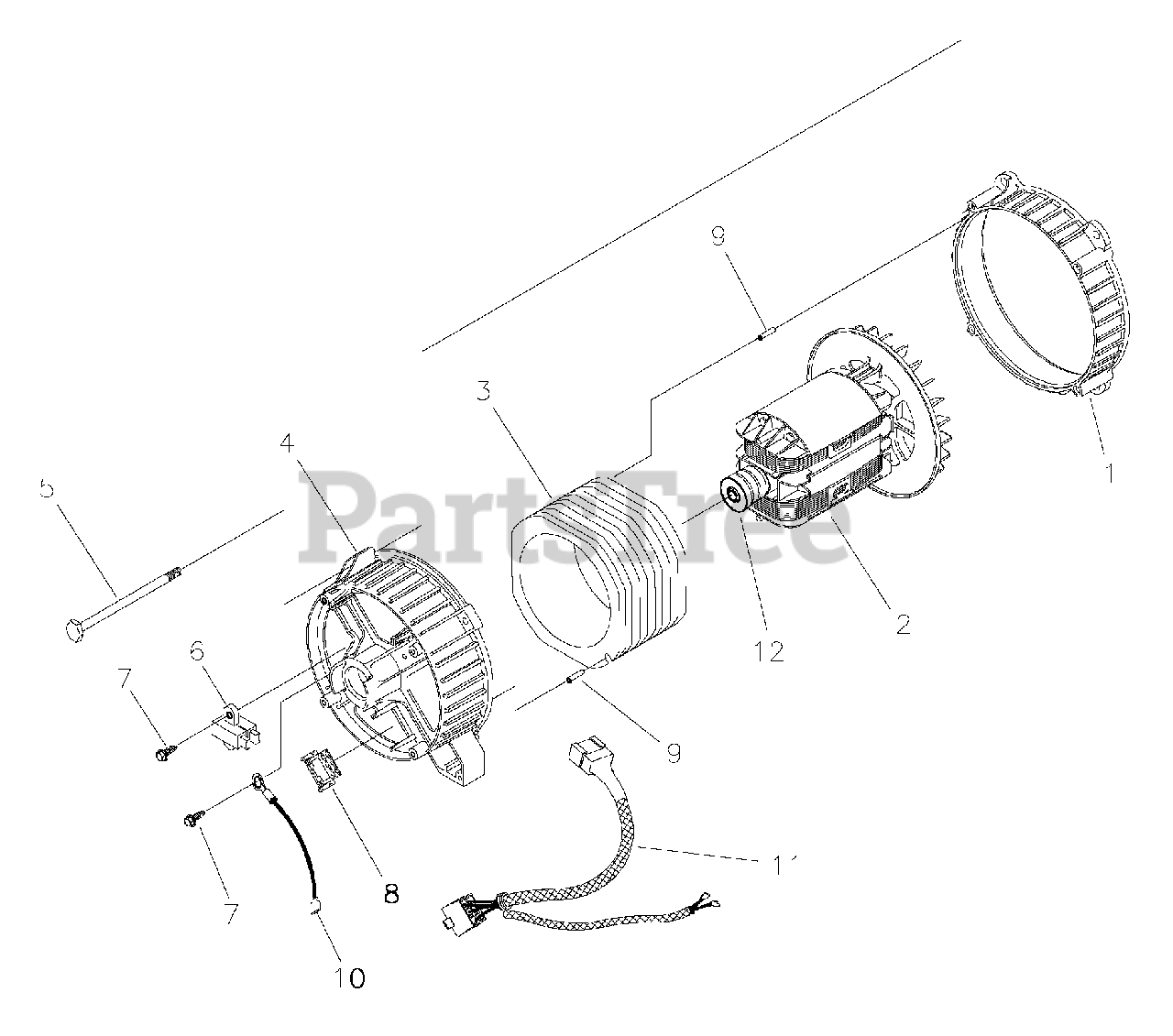

Alternator Parts Diagram

  • Title
1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 192164GS

ROTOR

Note: (Includes Item 12)

$

$

Not available

$545.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308JGS

HHCS, M6 - 1.0 x 95 SEMS

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 91825GS

ASSY, Holder, Rectifier/Brush

$54.99

$

In Stock, Qty 8

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193428AGS

ASSY, Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 198779GS

HARNESS, Wire, Power

$27.99

$

Usually ships in 2-12 days

0

$34.99

$

Usually ships in 2-12 days

0
