580.323610 (030250-0) - Craftsman 3,600 Watt Portable Generator Control Panel Parts Diagram

3,600 Watt Portable Generator

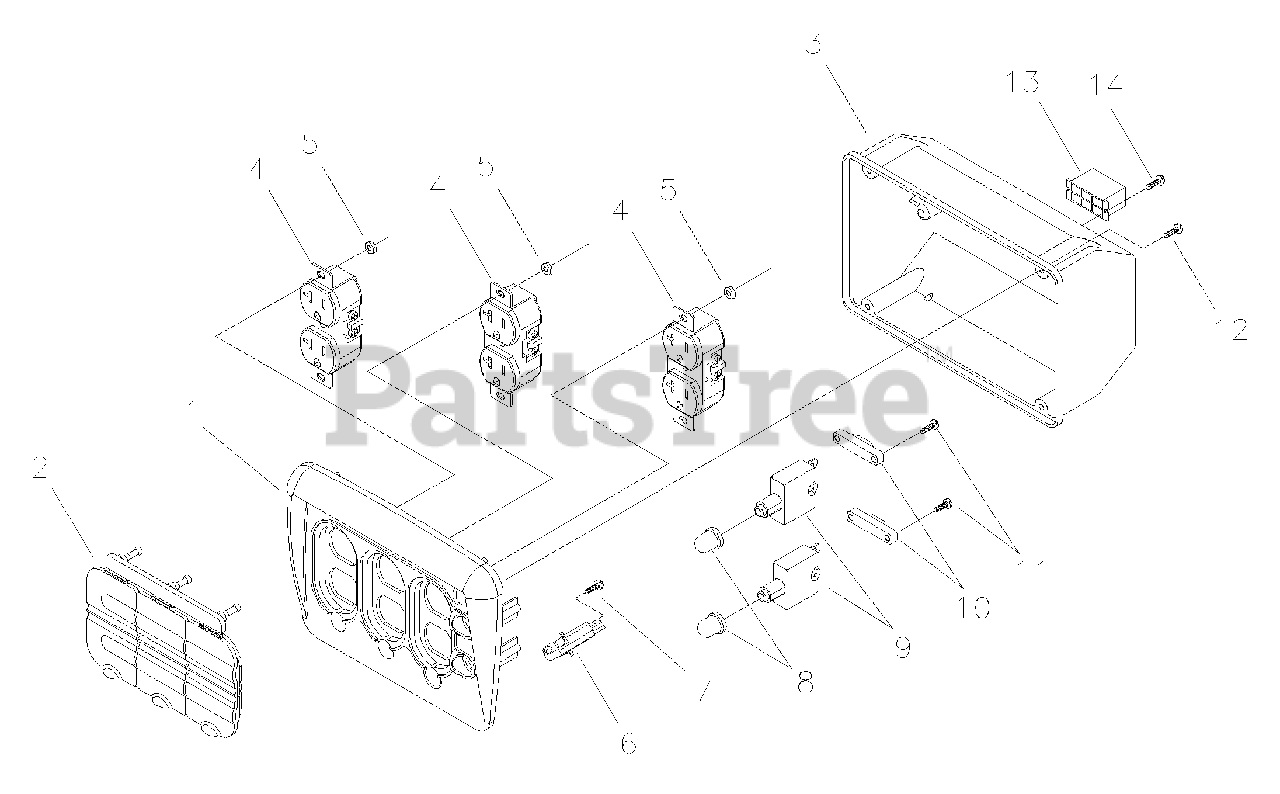

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 196898GS

PANEL, Control

$

$

Not available

2

Briggs & Stratton 197004GS

COVER, Outlet Flip

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 188890GS

COVER, Back Panel

$

$

Not available

4

Briggs & Stratton 197731GS

OUTLET, 120V, 15/20A Dplx

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189165GS

NUT, 5/32 Pal

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 197729GS

MODULE, Led
(Superseded to 202951GS)

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197958GS

SCREW, 3 x 6, Tapping

$3.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 84198GS

CAP, Breaker

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 75207DGS

BREAKER, Circuit, 15A

$13.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197805GS

BAR, Retaining

$2.49

$

Usually ships in 2-12 days

0

11

PPHMS, M3 - 0.5 x 18

Note: (Purchase locally)

$

$

Not available

12

Briggs & Stratton 192241GS

SCREW, 3.5 x 14, Tapping

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22694GS

HOUSING, Rcptcl, 6 Pin

$5.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 82308GS

SCREW, 3 x 18, Tapping

$2.99

$

In Stock, only 2 left!

0
