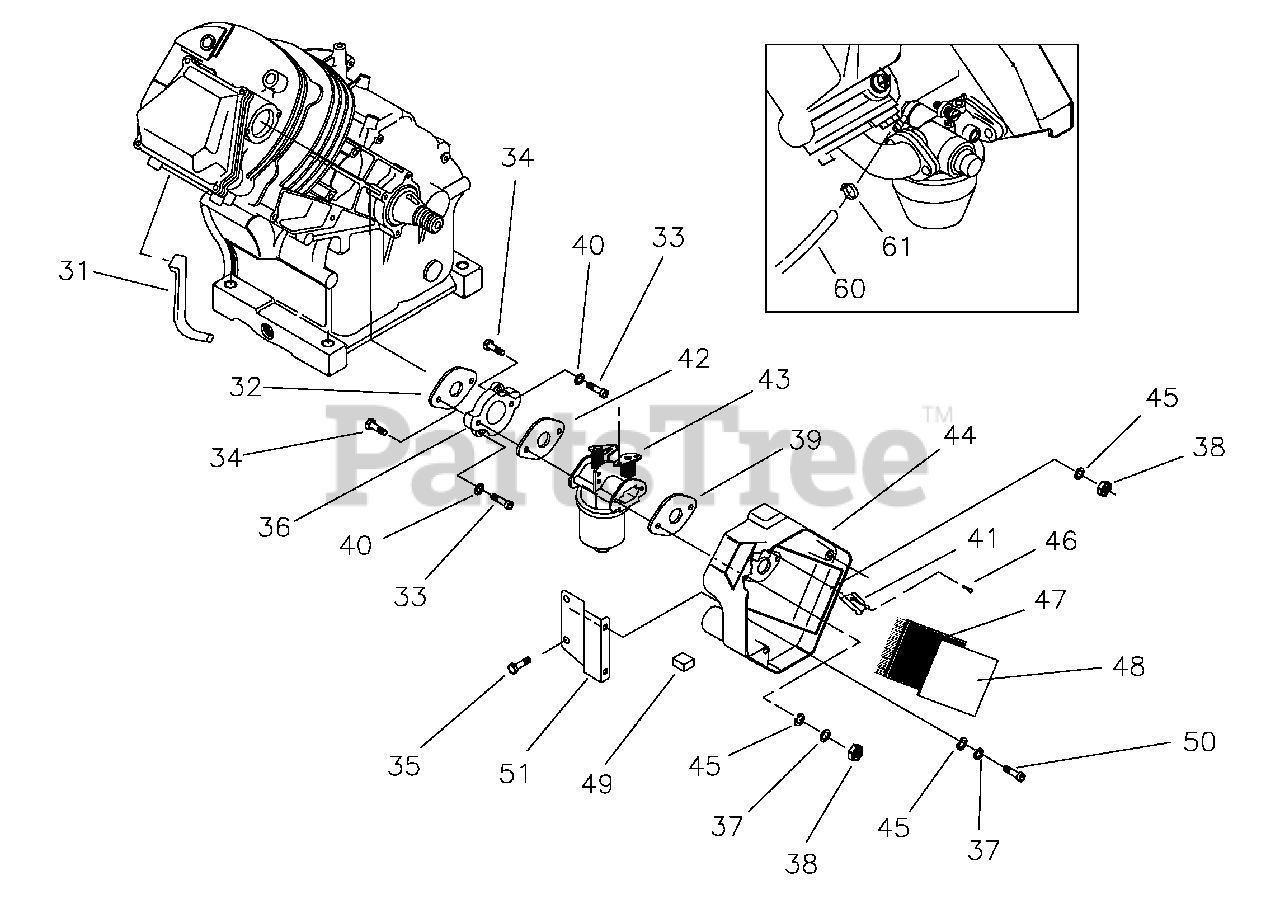

580.237182 (1020-1) - Craftsman 7,500 Watt Portable Generator Carburetor, Air Cleaner, Oil Switch And Oil Blockoff Parts Diagram

7,500 Watt Portable Generator

Carburetor, Air Cleaner, Oil Switch And Oil Blockoff Parts Diagram

  • Title
31

Briggs & Stratton 72745

Breather Hose
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91039

Head/Manifold Gasket
(Superseded to 7091039YP)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 40945

M6 x 20 SHCS
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

34

$

$

Not available

35

Briggs & Stratton 66476

M6 x 12 HHCS
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 91028

K Adapter
(Superseded to 7091028YP)

$

$

Not available

37

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 49813

M6 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 90970

Carb./Airbox Gasket
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93873

M6 Ribbed Lockwasher

$4.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 91204

Spitback Plate

$

$

Not available

42

Briggs & Stratton 89228

Carb/Manifold Gasket

$

$

Not available

43

Briggs & Stratton A4600

410 Nikki Carb.

$

$

Not available

44

Briggs & Stratton 73108A

Air Cleaner Base

$

$

Currently unavailable

45

Briggs & Stratton 49811

M6 Flatwasher
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 59635

#8 x 3/8 Plastite

$

$

Currently unavailable

47

Briggs & Stratton 73111

Air Filter
(Superseded to 73111GS)

$15.99

$

In Stock, only 1 left!

0

48

$

$

Not available

49

$

$

Not available

50

$

$

Not available

51

Briggs & Stratton 90827

Brkt. Air Box

$

$

Not available

60

$3155.99

$

Usually ships in 2-12 days

0

61

$

$

Not available
