578447801 - Husqvarna Trimmer Heads TRIMMER HEAD Parts Diagram

Trimmer Heads

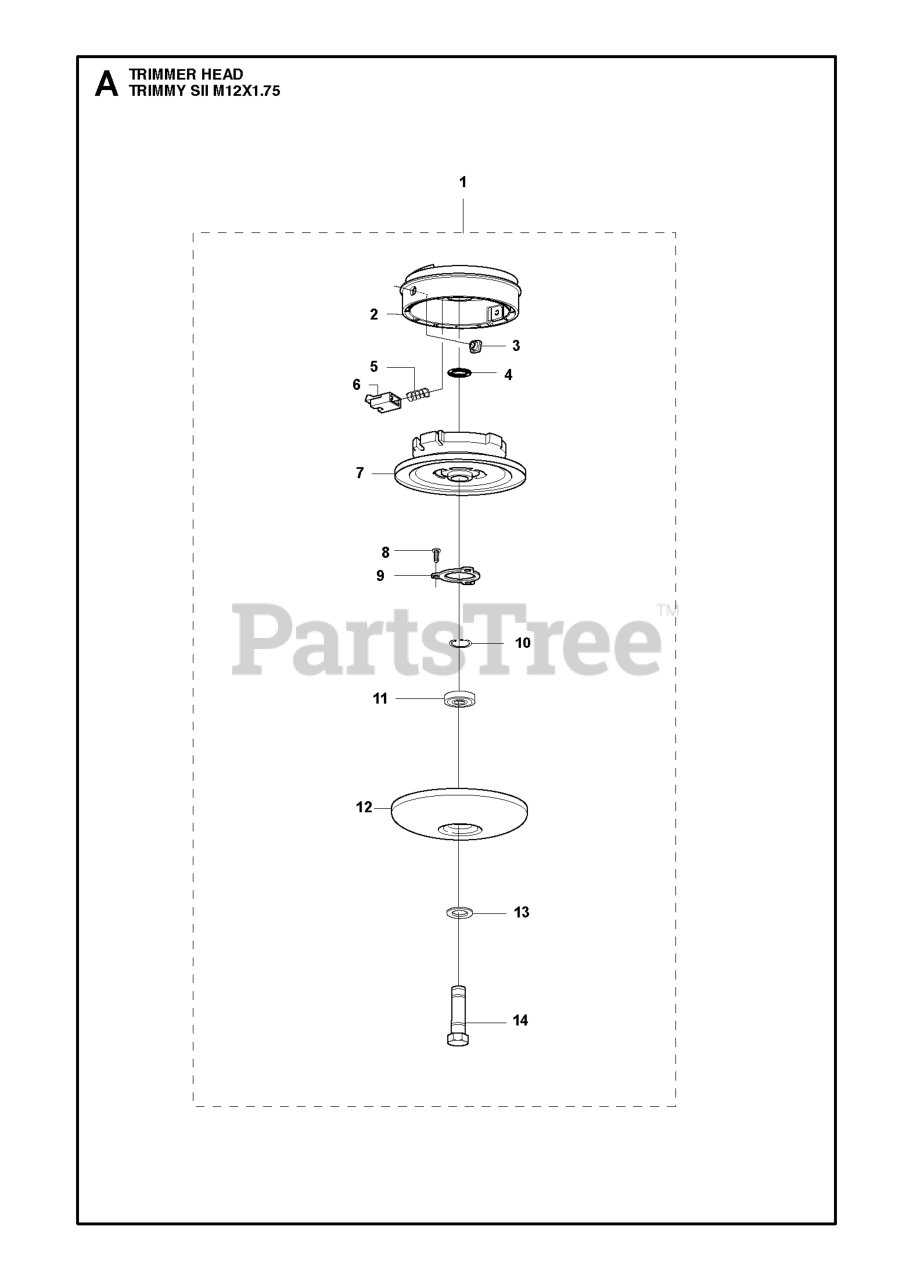

TRIMMER HEAD Parts Diagram

  • Title

9

Husqvarna 502260101

Retainer

$

$

Not available

10

Husqvarna 735311900

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 738210304

Ball Bearing 6003-2rs1

$108.99

$

Usually ships in 3-10 days

0

14

Husqvarna 502268601

ADAPTER

$

$

Not available

2

Husqvarna 502260403

HOUSING

$

$

Not available

1

Husqvarna 502255006

NEEDS DESCRIPTION

Note: M12. Not for sale - order no 578 44 78-01

$

$

Currently unavailable

7

Husqvarna 502255201

Spool

$

$

Not available

3

Husqvarna 502262401

EYELET

$

$

Not available

5

Husqvarna 502255601

SPRING

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 502260301

Base Plate

$

$

Not available

6

Husqvarna 502255301

BUTTON

$

$

Not available

8

Husqvarna 729532771

SCREW

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 502270701

WASHER

$

$

Not available

4

Husqvarna 740431400

Washer

$1.99

$

Usually ships in 3-10 days

0
