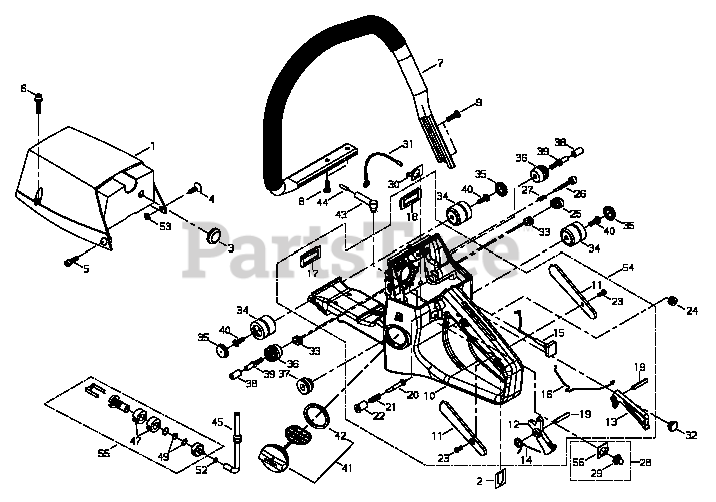

577 P - Shindaiwa Chainsaw Cover, Handle Parts Diagram

Chainsaw

Cover, Handle Parts Diagram

  • Title

1

Echo 22155-31110

COVER, ENGINE
(Superseded to A160002100)

$25.99

$

Usually ships in 2-4 days

0

2

Echo 72330-92150

LABEL - CAUTION
(Superseded to X505003880)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 22102-32140

BRACKET, PLUG
(Superseded to V162000430)

$2.99

$

In Stock, Qty 6

0

4

Echo 11260-05124

SCREW - 5X12
(Superseded to V253000720)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 11060-05162

SCREW - 5X16
(Superseded to V203000380)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 22160-31150

BOLT
(Superseded to V203001640)

$1.99

$

In Stock, Qty 5

0

53

Echo 01611-05100

WASHER - 5
(Superseded to 9220305000)

$0.99

$

In Stock, Qty 6

0

7

Echo 22169-32113

HANDLE - FRONT
(Superseded to C040000610)

$68.99

$

Usually ships in 2-4 days

0

8

Echo 22169-32210

BOLT
(Superseded to V204000670)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 22169-32220

BOLT
(Superseded to V204000710)

$1.99

$

Usually ships in 2-4 days

0

54

Echo 22169-33102

REAR HANDLE SUB ASSY
(Superseded to P021022550)

$221.99

$

In Stock, only 1 left!

0

10

Echo 22169-33201

HANDLE - REAR
(Superseded to C041000510)

$102.99

$

Usually ships in 2-4 days

0

11

Echo 22169-33310

PLATE, GRIP
(Superseded to C412000570)

$5.49

$

Usually ships in 2-4 days

0

12

Echo 22169-33321

TRIGGER, THROTTLE
(Superseded to C450000660)

$2.49

$

In Stock, Qty 5

0

13

Echo 22169-33330

LEVER, LOCK
(Superseded to C460000330)

$3.49

$

Usually ships in 2-4 days

0

14

Echo 22150-33340

SPRING, LEVER
(Superseded to V452000930)

$1.99

$

In Stock, only 3 left!

0

15

Echo 22150-82120

ROD, CHOKE
(Superseded to A240000160)

$3.49

$

Usually ships in 2-4 days

0

16

Echo 22169-33360

ROD, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

17

Echo 22169-33380

SUB CLEANER
(Superseded to A226001240)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 22169-33390

PLUG
(Superseded to V162000470)

$1.99

$

Usually ships in 2-4 days

0

19

Echo 1242050284

PIN- 5X28

$

$

Currently unavailable

20

Echo 72171-33170

STOPPER

$5.49

$

Usually ships in 2-4 days

0

21

Echo 22100-33180

SPRING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 22100-33190

KNOB, STOPPER

$0.99

$

Usually ships in 2-4 days

0

23

Echo 01280-04102

SCREW - 4X10 -- TAPPING
(Superseded to 9144904010)

$0.99

$

In Stock, only 2 left!

0

24

Echo 22150-33410

GROMMET
(Superseded to V130000160)

$2.49

$

In Stock, only 1 left!

0

25

Echo 22150-33420

GROMMET

$1.49

$

Usually ships in 2-4 days

0

26

Echo 22155-33450

SCREW, IDLE ADJUST
(Superseded to A613000070)

$3.99

$

Usually ships in 2-4 days

0

27

Echo 22155-33460

SPRING

$0.99

$

Usually ships in 2-4 days

0

28

Echo 22155-33501

IGNITION SWITCH ASSY
(Superseded to P021022030)

$16.99

$

Usually ships in 2-4 days

0

29

Echo 22155-33530

NUT
(Superseded to V268000050)

$4.99

$

Usually ships in 2-4 days

0

30

Echo 22169-33540

TERMINAL - GROUND
(Superseded to J420000080)

$3.99

$

Usually ships in 2-4 days

0

31

Echo 22169-33550

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

32

Echo 22150-33630

PLUG
(Superseded to V162000410)

$2.49

$

In Stock, only 4 left!

0

33

Echo 22150-33640

GROMMET
(Superseded to V144000330)

$1.99

$

In Stock, only 4 left!

0

34

Echo 72330-33710

CUSHION - 26
(Superseded to V401000430)

$7.99

$

In Stock, only 1 left!

0

35

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

36

Echo 22155-33730

CUSHION - 22
(Superseded to V401000380)

$7.49

$

In Stock, only 1 left!

0

37

Echo 22150-33750

SUPPORTER
(Superseded to V420002850)

$2.99

$

In Stock, only 1 left!

0

38

Echo 72281-33761

PIPE
(Superseded to V353000490)

$1.99

$

Usually ships in 2-4 days

0

39

Echo 22175-33770

BOLT
(Superseded to V203001550)

$3.49

$

Usually ships in 2-4 days

0

40

Echo 22160-32210

SCREW
(Superseded to V253000710)

$0.99

$

In Stock, Qty 9

0

41

Echo 22160-33801

CAP ASSY
(Superseded to A033000230)

$8.99

$

In Stock, only 3 left!

0

42

Echo 22160-33821

GASKET
(Superseded to V107000080)

$1.99

$

In Stock, Qty 20+

0

43

Echo 22169-33940

PIPE
(Superseded to V470001580)

$7.99

$

In Stock, only 1 left!

0

44

Echo 22157-33950

ELEMENT, BREATHER
(Superseded to E615000000)

$2.49

$

In Stock, only 4 left!

0

45

Echo 22169-34110

PIPE - FUEL
(Superseded to V470001590)

$6.99

$

In Stock, Qty 16

0

55

Echo 22169-35400

FUEL FILTER SUB ASSY
(Superseded to A369000100)

$9.49

$

In Stock, Qty 20+

0

47

Echo 22169-35420

FILTER
(Superseded to A369000110)

$4.99

$

Usually ships in 2-4 days

0

49

Echo 22118-85460

ELEMENT
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

52

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

56

Echo 22150-33520

PLATE

$

$

Currently unavailable
