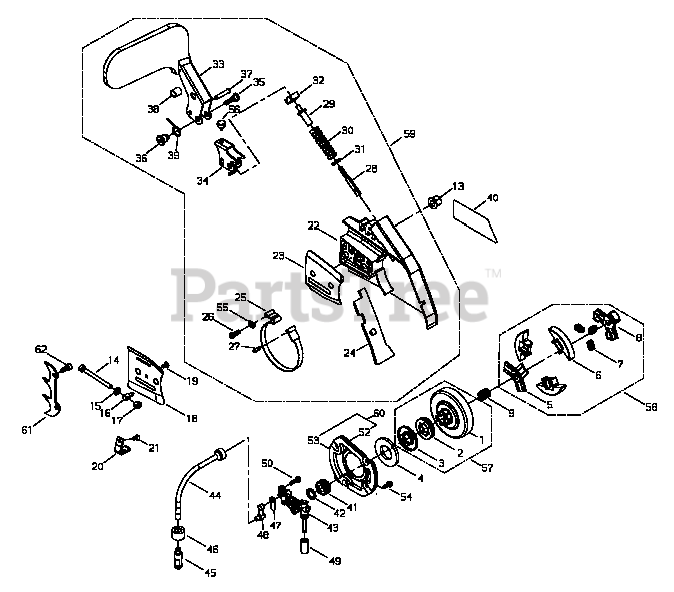

577 P - Shindaiwa Chainsaw Clutch, Clutch Cover Parts Diagram

Chainsaw

Clutch, Clutch Cover Parts Diagram

  • Title

57

Echo 22155-51500

CLUTCH DRUM ASSY
(Superseded to P021022060)

$81.99

$

Usually ships in 2-4 days

0

1

Echo 22150-51510

DRUM, CLUTCH
(Superseded to A556001160)

$63.99

$

In Stock, only 1 left!

0

2

Echo 22150-51520

SPROCKET, RIM
(Superseded to 17503314731)

$14.99

$

In Stock, only 1 left!

0

3

Echo 22155-51530

COVER
(Superseded to V311000120)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 22155-51550

FILTER B

$1.99

$

In Stock, only 1 left!

0

58

Echo 22155-51200

CLUTCH ASSY
(Superseded to A056000640)

$100.99

$

Usually ships in 2-4 days

0

5

Echo 22155-51210

HUB, CLUTCH - INNER
(Superseded to A552000270)

$35.99

$

Usually ships in 2-4 days

0

6

Echo 22155-51220

SHOE, CLUTCH
(Superseded to A555000240)

$15.99

$

In Stock, only 2 left!

0

7

Echo 22150-51230

SPRING, CLUTCH
(Superseded to A566000210)

$1.99

$

In Stock, only 3 left!

0

8

Echo 22155-51240

HUB, CLUTCH - OUTER

$32.99

$

Usually ships in 2-4 days

0

9

Echo 22150-51310

BEARING
(Superseded to V558000000)

$9.49

$

Usually ships in 2-4 days

0

13

Echo 22150-52411

NUT
(Superseded to V265000230)

$4.99

$

Usually ships in 2-4 days

0

14

Echo 22155-53310

SCREW
(Superseded to V253000600)

$1.99

$

In Stock, Qty 7

0

15

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.49

$

In Stock, Qty 15

0

17

Echo 22100-53330

LOCKNUT
(Superseded to V263000280)

$0.99

$

In Stock, Qty 5

0

18

Echo 22155-97610

PLATE, GUIDE - INNER

$5.49

$

Usually ships in 2-4 days

0

19

Echo 11205-04100

SCREW - 4X10
(Superseded to 9157304010)

$0.99

$

In Stock, Qty 5

0

20

Echo 22155-52510

CATCHER, CHAIN
(Superseded to C310000090)

$8.49

$

Usually ships in 2-4 days

0

21

Echo 01201-05120

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

59

Echo 22175-54003

CHAIN BRAKE ASSY
(Superseded to C032000480)

$171.99

$

Usually ships in 2-4 days

0

22

Echo 22175-54113

COVER, CLUTCH
(Superseded to C300000860)

$67.99

$

Usually ships in 2-4 days

0

23

Echo 22155-97620

PLATE, GUIDE - OUTER
(Superseded to C305000360)

$5.49

$

Usually ships in 2-4 days

0

24

Echo 72316-54171

PROTECTOR
(Superseded to C302000040)

$2.99

$

Usually ships in 2-4 days

0

40

Echo 72334-92181

LABEL - TRADE

$

$

Currently unavailable

25

Echo 22150-54211

BAND, BRAKE
(Superseded to C328000260)

$13.99

$

Usually ships in 2-4 days

0

26

Echo 22160-54220

BOLT

$1.99

$

Usually ships in 2-4 days

0

27

Echo 02427-40125

PIN
(Superseded to 90034240012)

$0.99

$

In Stock, Qty 6

0

28

Echo 22150-54311

ADJUST ROD
(Superseded to V253000700)

$1.99

$

Usually ships in 2-4 days

0

29

Echo 22150-54320

SCREW, ADJUST
(Superseded to A613000060)

$6.49

$

Usually ships in 2-4 days

0

30

Echo 22150-54330

SPRING, BRAKE
(Superseded to V450001200)

$2.49

$

Usually ships in 2-4 days

0

31

Echo 22150-54340

WASHER
(Superseded to V303000330)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 22150-54410

BLOCK
(Superseded to C321000030)

$6.49

$

Usually ships in 2-4 days

0

33

Echo 22175-54510

LEVER
(Superseded to C320000350)

$45.99

$

In Stock, only 1 left!

0

34

Echo 22150-54522

LEVER - INNER
(Superseded to C320000360)

$12.99

$

Usually ships in 2-4 days

0

35

Echo 22161-54580

BOLT
(Superseded to V203001570)

$4.49

$

In Stock, only 1 left!

0

36

Echo 22175-54590

NUT
(Superseded to V263000300)

$2.99

$

Usually ships in 2-4 days

0

37

Echo 72231-54610

PIN - STOPPER
(Superseded to V641000210)

$1.99

$

Usually ships in 2-4 days

0

38

Echo 72231-54620

COLLAR
(Superseded to V353000500)

$2.49

$

Usually ships in 2-4 days

0

39

Echo 22150-54630

SPRING
(Superseded to V452000920)

$1.99

$

In Stock, only 1 left!

0

55

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

56

Echo 15270-02003

CLAMP
(Superseded to Discontinued)

$

$

Not available

41

Echo 22155-55110

GEAR
(Superseded to V652000180)

$1.99

$

Usually ships in 2-4 days

0

42

Echo 22150-55120

PLATE, THRUST
(Superseded to V393000010)

$0.99

$

In Stock, Qty 8

0

43

Echo 22160-55200

AUTO-OILER ASSY
(Superseded to C022000130)

$66.99

$

In Stock, only 1 left!

0

44

Echo 22150-55312

PIPE - OIL

$7.99

$

Usually ships in 2-4 days

0

45

Echo 22169-57360

FILTER, OIL
(Superseded to C209000080)

$9.99

$

Usually ships in 2-4 days

0

46

Echo 22175-57380

WEIGHT
(Superseded to C212000010)

$4.49

$

Usually ships in 2-4 days

0

47

Echo 22150-55411

GASKET, PUMP
(Superseded to V112000000)

$2.49

$

In Stock, only 2 left!

0

48

Echo 22150-55421

ELBOW

$2.99

$

Usually ships in 2-4 days

0

49

Echo 22155-55430

FILTER
(Superseded to V418000010)

$1.99

$

In Stock, only 3 left!

0

50

Echo 11205-04160

SCREW - 4X16
(Superseded to 9157304016)

$0.99

$

Usually ships in 2-4 days

0

60

Echo 22155-56100

PUMP COVER SUB ASSY
(Superseded to C236000110)

$11.99

$

Usually ships in 2-4 days

0

52

Echo 22155-56110

COVER, PUMP
(Superseded to C236000120)

$4.99

$

Usually ships in 2-4 days

0

53

Echo 22155-56120

FILTER

$4.49

$

Usually ships in 2-4 days

0

54

Echo 11205-04100

SCREW - 4X10
(Superseded to 9157304010)

$0.99

$

In Stock, Qty 5

0
