577 P - Shindaiwa Chainsaw Casecrank Parts Diagram

Chainsaw

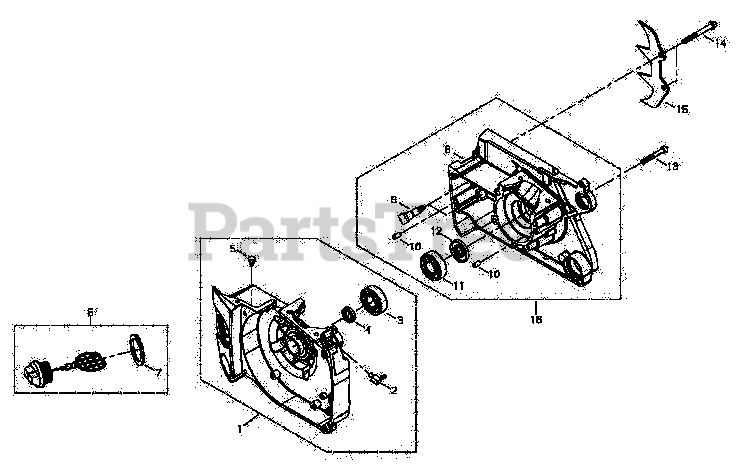

Casecrank Parts Diagram

  • Title
1

Echo 22175-21200

CRANKCASE ASSY - LEFT
(Superseded to P021022720)

$79.99

$

Usually ships in 2-4 days

0

2

Echo 22150-21220

CONNECTOR, PIPE
(Superseded to V185000000)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

5

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

6

Echo 22175-21300

CAP ASSY
(Superseded to C020000060)

$9.99

$

Usually ships in 2-4 days

0

7

Echo 22175-21340

GASKET
(Superseded to V106000090)

$1.99

$

Usually ships in 2-4 days

0

16

Echo 22152-21501

CRANKCASE ASSY - RIGHT
(Superseded to P021021910)

$73.99

$

Usually ships in 2-4 days

0

8

Echo 22152-21510

CRANKCASE - RIGHT
(Superseded to 22152-21501)

$73.99

$

Usually ships in 2-4 days

0

9

Echo 22150-21521

BOLT, BAR
(Superseded to V225000170)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

11

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

12

Echo 22155-21630

SEAL, OIL
(Superseded to V508000080)

$11.99

$

In Stock, only 1 left!

0

13

Echo 22169-21910

BOLT - 5X35
(Superseded to V203001450)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 11060-05500

SCREW - 5X50
(Superseded to V203001190)

$1.99

$

Usually ships in 2-4 days

0

15

Echo 72230-52630

SPIKE
(Superseded to C304000160)

$8.99

$

Usually ships in 2-4 days

0
