576 XP - Husqvarna Chainsaw (SN: 20101000001 - 20130900000) FUEL TANK Parts Diagram

Chainsaw

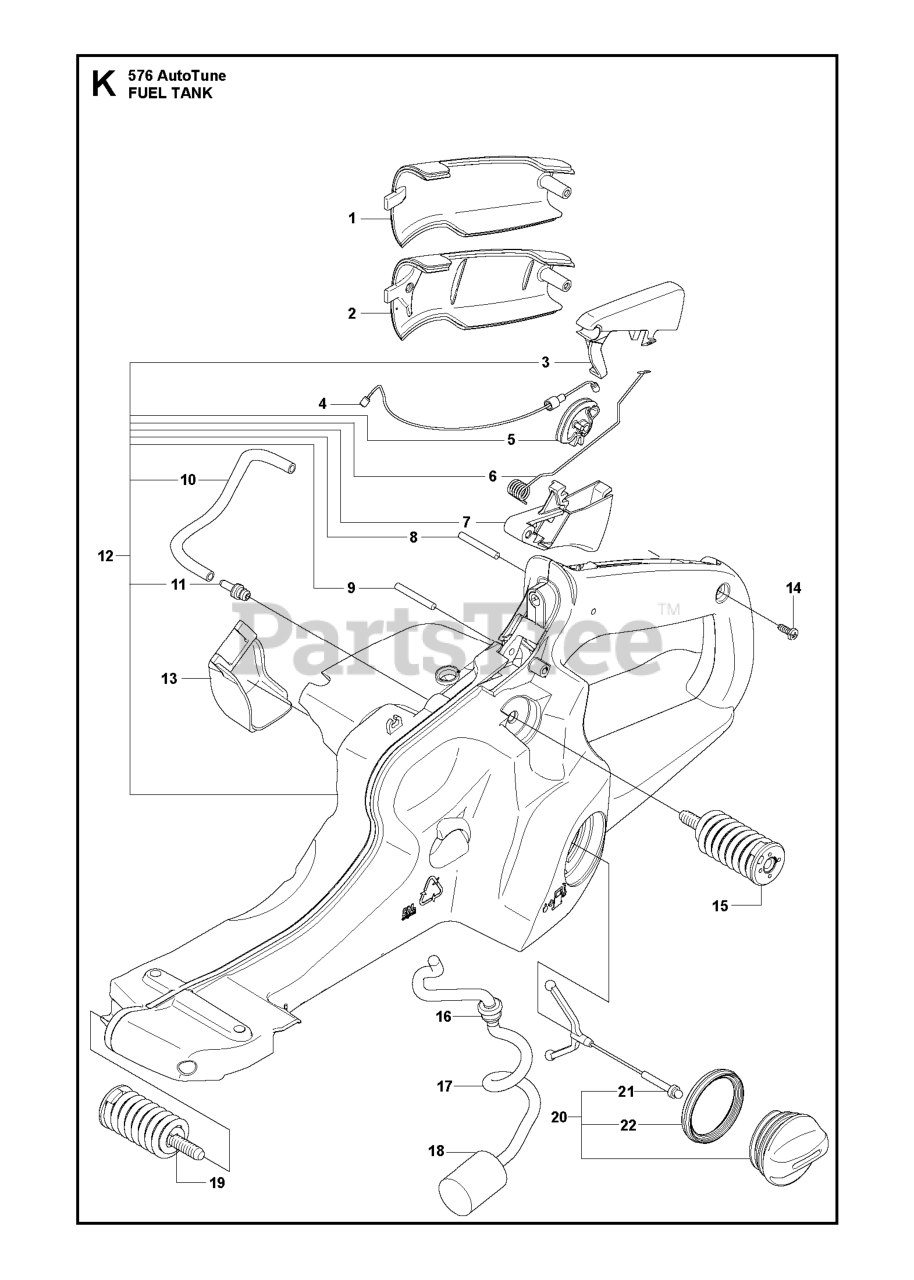

FUEL TANK Parts Diagram

  • Title

14

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 537210304

VIBRATION ABSORBER

Note: Hard

$25.99

$

In Stock, only 1 left!

0

8

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

19

Husqvarna 537210303

VIBRATION ABSORBER

Note: Std

$20.99

$

In Stock, Qty 6

0

18

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

2

Husqvarna 537205601

COVER

Note: Grey

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 537211101

THROTTLE WIRE

$20.99

$

Usually ships in 3-10 days

0

9

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

6

Husqvarna 537209801

SPRING

$7.49

$

In Stock, Qty 9

0

10

Husqvarna 544324906

HOSE
(Superseded to 581756106)

$8.99

$

In Stock, Qty 5

0

7

Husqvarna 537208301

THROTTLE TRIGGER

$7.99

$

In Stock, only 2 left!

0

1

Husqvarna 537205501

COVER

Note: Orange

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537210301

VIBRATION ABSORBER

Note: Std

$20.99

$

In Stock, Qty 5

0

3

Husqvarna 537208401

THROTTLE LOCK

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$11.99

$

In Stock, only 4 left!

0

15

Husqvarna 537210302

VIBRATION ABSORBER

Note: Hard

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537208501

LEVER

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

22

Husqvarna 537215001

SEALING

$8.99

$

In Stock, only 2 left!

0

12

Husqvarna 537213504

TANK UNIT

$132.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$17.99

$

In Stock, Qty 6

0

21

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

13

Husqvarna 537205701

PROTECTOR

$5.99

$

In Stock, Qty 12

0
