576 XP - Husqvarna Chainsaw (2013-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

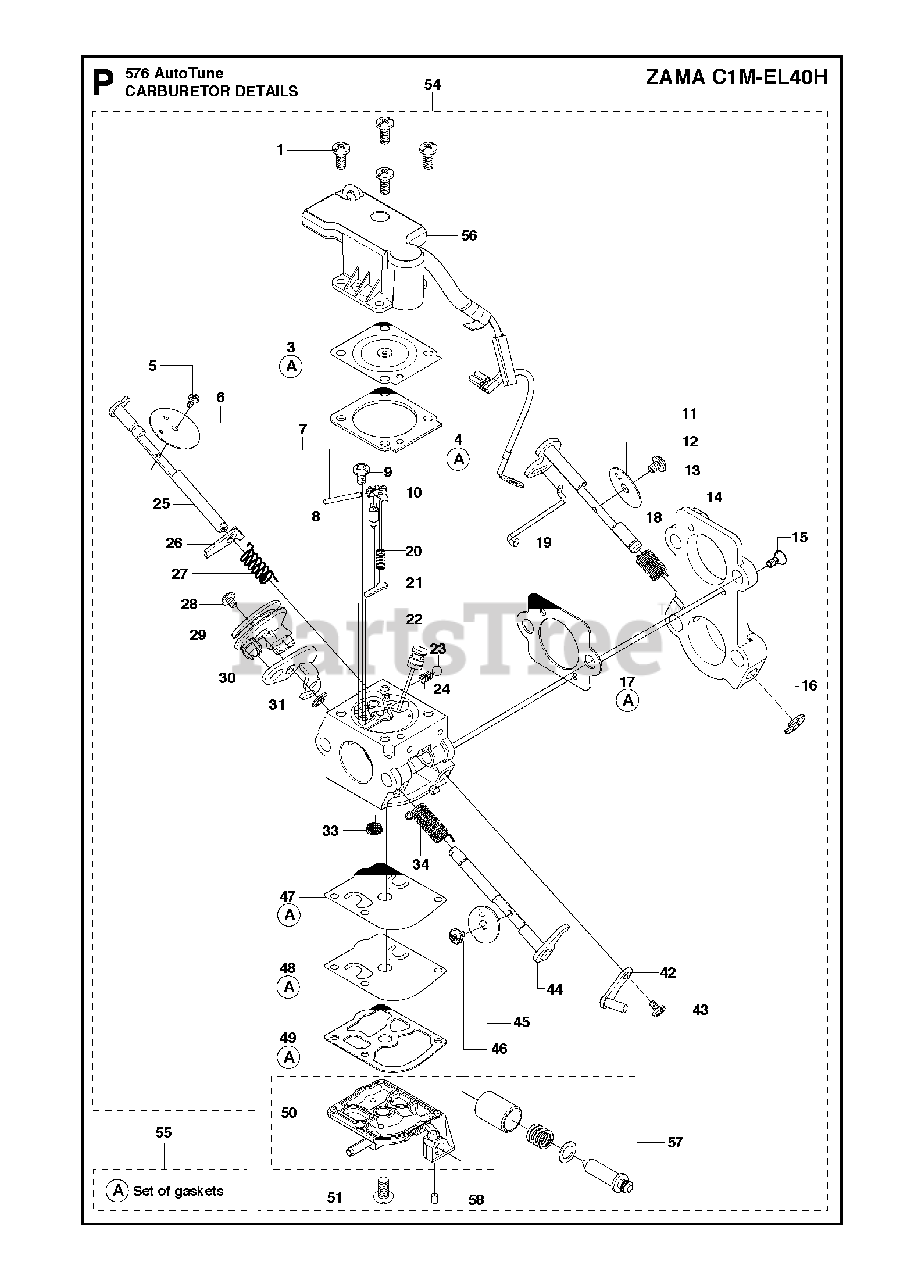

CARBURETOR DETAILS Parts Diagram

  • Title
1

Husqvarna 506396601

Screw

Note: . 54

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504113801

DIAPHRAGM

Note: . 54 55

$

$

Not available

4

Husqvarna 504627901

GASKET METERING

Note: . 54 55

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 504627701

CHOKE VALVE

Note: . 54

$8.07

$

Usually ships in 3-10 days

0

7

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 54

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 503479701

INLET NEEDLE

Note: . 54

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503480101

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503665901

LEVER

Note: . 54

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 544237801

SHAFT

Note: . 54

$17.30

$

Usually ships in 3-10 days

0

12

Husqvarna 537177001

THROTTLE FLAP

Note: . 54

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544199801

RP CARBURETOR
(Superseded to 580735801)

Note: . 54

$165.99

$

In Stock, Qty 5

0

15

Husqvarna 537385101

SCREW

Note: . 54

$5.49

$

Usually ships in 3-10 days

0

16

Husqvarna 537385001

CLIP

Note: . 54

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 537385301

GASKET

Note: . 54 55

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 537385501

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544237901

ROD

Note: . 54

$8.07

$

Usually ships in 3-10 days

0

20

Husqvarna 537383401

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503535601

PLUG

Note: . 54

$7.49

$

In Stock, Qty 6

0

22

Husqvarna 544237701

JET

Note: . 54

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537012501

BALL

Note: . 54

$3.99

$

In Stock, Qty 6

0

24

Husqvarna 537012601

SPRING

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 537384201

CHOKE SHAFT

Note: . 54

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544238001

LEVER

Note: . 54

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 537384401

SPRING

Note: . 54

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 503479001

SCREW

Note: . 54

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 544387601

THROTTLE LEVER ASSY

Note: . 54

$28.99

$

Usually ships in 3-10 days

0

30

Husqvarna 537384101

LEVER

Note: . 54

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 537385201

CLIP

Note: . 54

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 503535701

STRAINER

Note: . 54

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 537382901

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 537384501

LEVER

Note: . 54

$20.99

$

Usually ships in 3-10 days

0

43

Husqvarna 503479001

SCREW

Note: . 54

$3.99

$

In Stock, Qty 8

0

44

Husqvarna 537382801

THROTTLE SHAFT

Note: . 54

$35.99

$

Usually ships in 3-10 days

0

45

Husqvarna 537383001

FLAP

Note: . 54

$11.53

$

Usually ships in 3-10 days

0

46

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 537383101

PUMP DIAPHRAGM

Note: . 54 55

$13.99

$

Usually ships in 3-10 days

0

48

Husqvarna 537403301

DIAPHRAGM

Note: . 54 55

$11.99

$

In Stock, only 2 left!

0

49

Husqvarna 537020101

GASKET

Note: . 54 55

$4.99

$

In Stock, Qty 13

0

50

Husqvarna 515997701

(Superseded to 502078901)

Note: . 54 57

$30.99

$

Usually ships in 3-10 days

0

51

Husqvarna 503479601

SCREW

Note: . 54

$3.99

$

In Stock, Qty 5

0

54

Husqvarna 581279701

CARBURETTOR C1M-EL40H

Note: ZAMA C1M-EL 40H

$182.99

$

Usually ships in 3-10 days

0

55

Husqvarna 504644001

GASKET SET KIT

Note: . 54

$58.99

$

Usually ships in 3-10 days

0

56

Husqvarna 575355901

VALVE HOUSING ASSY
(Superseded to 576694201)

Note: . 54

$182.99

$

Usually ships in 3-10 days

0

57

Husqvarna 581463101

IDLE SPEED SCREW TAMPERPROOF K

Note: . 54

$

$

Not available

58

Husqvarna 503481101

PLUG

Note: . 54

$10.99

$

Usually ships in 3-10 days

0
