576 XP EPA - Husqvarna Chainsaw (2011-01) CARBURETOR DETAILS Parts Diagram

Chainsaw

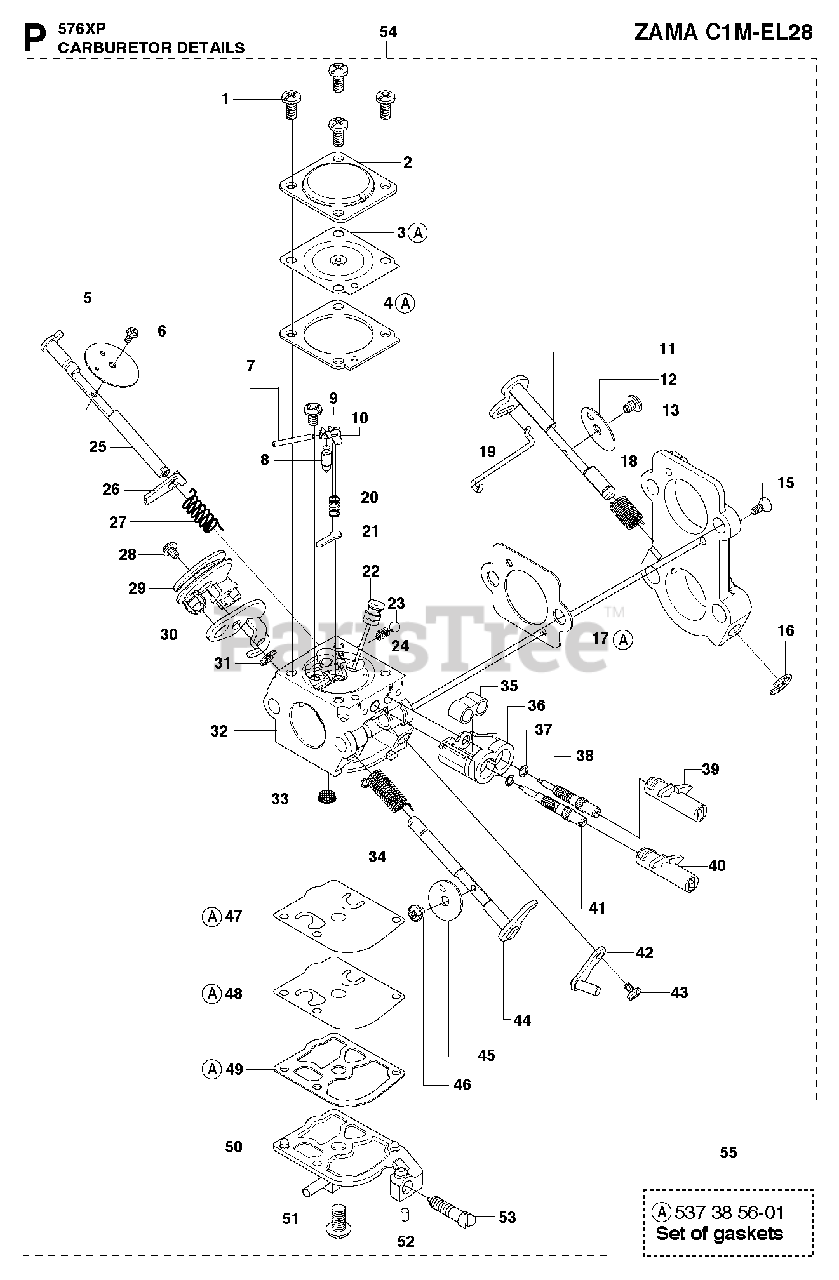

CARBURETOR DETAILS Parts Diagram

  • Title
1

Husqvarna 503480501

SCREW

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537383701

COVER

Note: . 54

$

$

Not available

3

Husqvarna 537383501

DIAPHRAGM

Note: . 54 55

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537383601

GASKET

Note: . 54 55

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537266801

CHOKE FLAP

Note: . 54

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 54

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 503479701

INLET NEEDLE

Note: . 54

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503480101

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503665901

LEVER

Note: . 54

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 544237801

SHAFT

Note: . 54

$17.30

$

Usually ships in 3-10 days

0

12

Husqvarna 537177001

THROTTLE FLAP

Note: . 54

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537385101

SCREW

Note: . 54

$5.49

$

Usually ships in 3-10 days

0

16

Husqvarna 537385001

CLIP

Note: . 54

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 537385301

GASKET

Note: . 54 55

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 537385501

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544237901

ROD

Note: . 54

$8.07

$

Usually ships in 3-10 days

0

20

Husqvarna 537383401

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503535601

PLUG

Note: . 54

$7.49

$

In Stock, Qty 6

0

22

Husqvarna 544237701

JET

Note: . 54

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537012501

BALL

Note: . 54

$3.99

$

In Stock, Qty 6

0

24

Husqvarna 537012601

SPRING

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 537384201

CHOKE SHAFT

Note: . 54

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544238001

LEVER

Note: . 54

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 537384401

SPRING

Note: . 54

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 503479001

SCREW

Note: . 54

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 537213701

LEVER

Note: . 54

$

$

Not available

30

Husqvarna 537384101

LEVER

Note: . 54

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 537385201

CLIP

Note: . 54

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 544199801

RP CARBURETOR
(Superseded to 580735801)

Note: . 54

$165.99

$

In Stock, Qty 5

0

33

Husqvarna 503535701

STRAINER

Note: . 54

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 537382901

SPRING

Note: . 54

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 537274201

SLEEVE

Note: . 54

$5.76

$

Usually ships in 3-10 days

0

36

Husqvarna 503903401

SLEEVE

Note: . 54

$8.49

$

Usually ships in 3-10 days

0

37

Husqvarna 503974001

WASHER

Note: . 54

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 537383801

NEEDLE HIGH SPEED

Note: . 54

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 537384701

LIMITER

Note: . 54

$8.49

$

In Stock, only 1 left!

0

40

Husqvarna 537384601

LIMITER

Note: . 54

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 537383901

LOW SPEED NEEDLE

Note: . 54

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 537384501

LEVER

Note: . 54

$20.99

$

Usually ships in 3-10 days

0

43

Husqvarna 503479001

SCREW

Note: . 54

$3.99

$

In Stock, Qty 8

0

44

Husqvarna 537382801

THROTTLE SHAFT

Note: . 54

$35.99

$

Usually ships in 3-10 days

0

45

Husqvarna 537383001

FLAP

Note: . 54

$11.53

$

Usually ships in 3-10 days

0

46

Husqvarna 503481801

SCREW

Note: . 54

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 537383101

PUMP DIAPHRAGM

Note: . 54 55

$13.99

$

Usually ships in 3-10 days

0

48

Husqvarna 537403301

DIAPHRAGM

Note: . 54 55

$11.99

$

In Stock, only 2 left!

0

49

Husqvarna 537020101

GASKET

Note: . 54 55

$4.99

$

In Stock, Qty 13

0

50

Husqvarna 537383201

COVER

Note: . 54

$35.99

$

In Stock, only 2 left!

0

51

Husqvarna 503479601

SCREW

Note: . 54

$3.99

$

In Stock, Qty 5

0

52

Husqvarna 503481101

PLUG

Note: . 54

$10.99

$

Usually ships in 3-10 days

0

53

Husqvarna 537383301

SCREW

Note: . 54

$10.99

$

Usually ships in 3-10 days

0

54

Husqvarna 544199801

RP CARBURETOR
(Superseded to 580735801)

Note: ZAMA C1M-EL28

$165.99

$

In Stock, Qty 5

0

55

Husqvarna 537385601

GASKET SET

Note: A Set of gaskets

$20.99

$

Usually ships in 3-10 days

0
