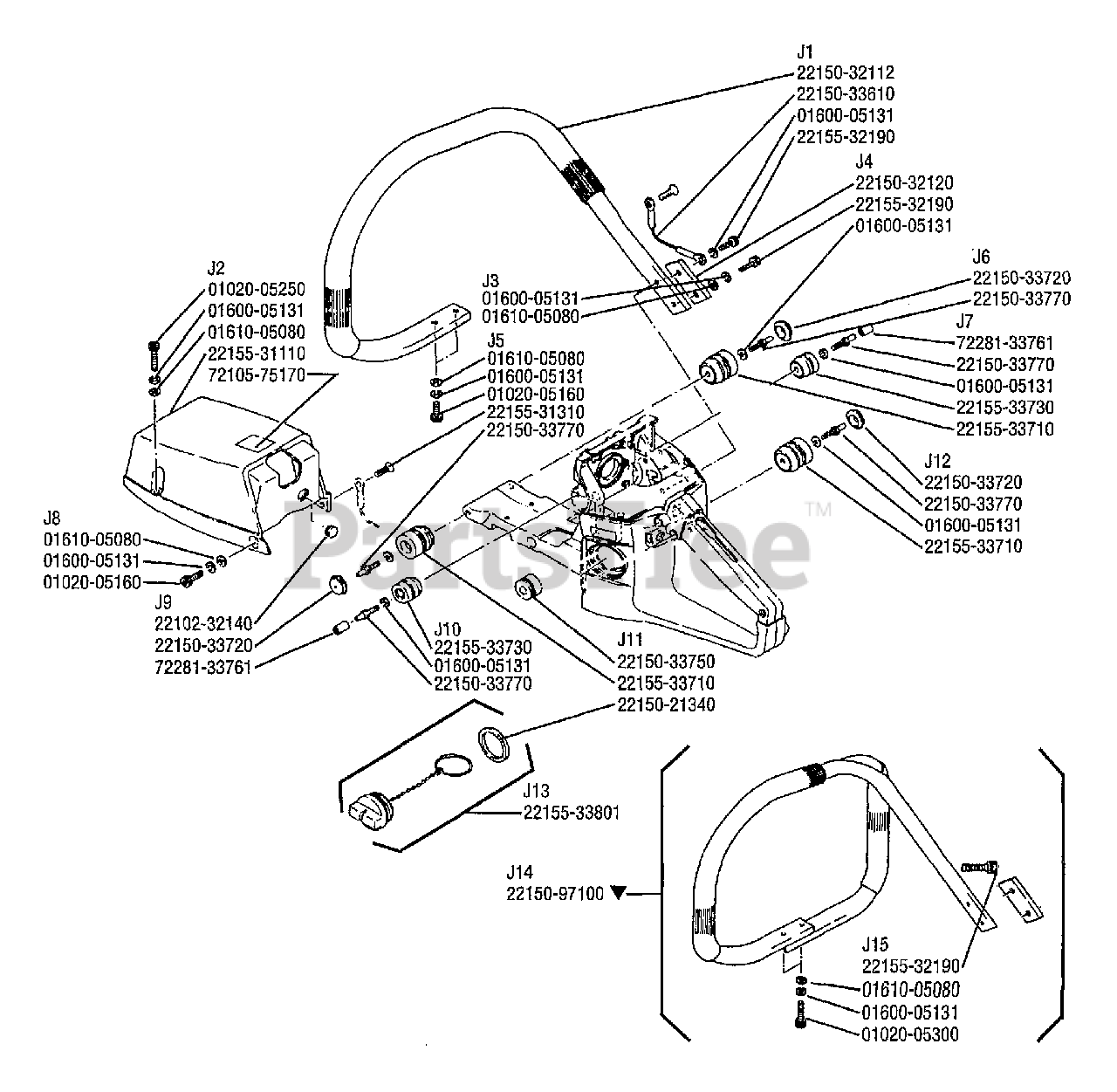

575 - Shindaiwa Chainsaw Rear Handle Parts Diagram

Chainsaw

Rear Handle Parts Diagram

  • Title
J1-22150-32112

Echo 22150-32112

FRONT HANDLE
(Superseded to Discontinued)

$

$

Not available

J1-22150-33610

Echo 22150-33610

GROUND WIRE
(Superseded to Discontinued)

$

$

Not available

J1-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J1-22155-32190

Echo 22155-32190

BOLT
(Superseded to Discontinued)

$

$

Not available

J4-22150-32120

Echo 22150-32120

BRACKET
(Superseded to Discontinued)

$

$

Not available

J4-22155-32190

Echo 22155-32190

BOLT
(Superseded to Discontinued)

$

$

Not available

J4-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J3-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J3-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J5-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J5-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J5-01020-05160

Echo 01020-05160

BOLT SW
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

J5-22155-31310

Echo 22155-31310

SCREW
(Superseded to Discontinued)

$

$

Not available

J5-22150-33770

Echo 22150-33770

BOLT, STOPPER LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

J6-22150-33720

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

J6-22150-33770

Echo 22150-33770

BOLT, STOPPER LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

J7-72281-33761

Echo 72281-33761

TUBE
(Superseded to V353000490)

$1.99

$

Usually ships in 2-4 days

0

J7-22150-33770

Echo 22150-33770

BOLT, STOPPER LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

J7-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J7-22155-33730

Echo 22155-33730

CUSHION 22
(Superseded to V401000380)

$7.49

$

In Stock, only 1 left!

0

J7-22155-33710

Echo 22155-33710

CUSHION 26
(Superseded to V401000370)

$7.49

$

In Stock, only 3 left!

0

J12-22150-33720

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

J12-22150-33770

Echo 22150-33770

BOLT, STOPPER LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

J12-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J12-22155-33710

Echo 22155-33710

CUSHION 26
(Superseded to V401000370)

$7.49

$

In Stock, only 3 left!

0

J11-22150-33750

Echo 22150-33750

SUPPORT
(Superseded to V420002850)

$2.99

$

In Stock, only 1 left!

0

J11-22155-33710

Echo 22155-33710

CUSHION 26
(Superseded to V401000370)

$7.49

$

In Stock, only 3 left!

0

J11-22150-21340

Echo 22150-21340

GASKET
(Superseded to Discontinued)

$

$

Not available

J10-22155-33730

Echo 22155-33730

CUSHION 22
(Superseded to V401000380)

$7.49

$

In Stock, only 1 left!

0

J10-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J10-22150-33770

Echo 22150-33770

BOLT, STOPPER LIMITER
(Superseded to V203001660)

$1.99

$

Usually ships in 2-4 days

0

J13-22155-33801

Echo 22155-33801

FUEL CAP ASSY
(Superseded to Discontinued)

$

$

Not available

J14-22150-97100

Echo 22150-97100

HANDLE ASSY, FULL WRAP
(Superseded to Discontinued)

$

$

Not available

J15-22155-32190

Echo 22155-32190

BOLT
(Superseded to Discontinued)

$

$

Not available

J15-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J15-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J15-01020-05300

Echo 01020-05300

BOLT
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

J2-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

J2-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J2-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J2-22155-31110

Echo 22155-31110

COVER, CYLINDER
(Superseded to A160002100)

$25.99

$

Usually ships in 2-4 days

0

J2-72105-75170

Echo 72105-75170

CAUTION PLATE A
(Superseded to Discontinued)

$

$

Not available

J8-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J8-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

J8-01020-05160

Echo 01020-05160

BOLT SW
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

J9-22102-32140

Echo 22102-32140

PLUG, BRACKET
(Superseded to V162000430)

$2.99

$

In Stock, Qty 6

0

J9-22150-33720

Echo 22150-33720

PLUG
(Superseded to V421000060)

$1.49

$

Usually ships in 2-4 days

0

J9-72281-33761

Echo 72281-33761

TUBE
(Superseded to V353000490)

$1.99

$

Usually ships in 2-4 days

0
