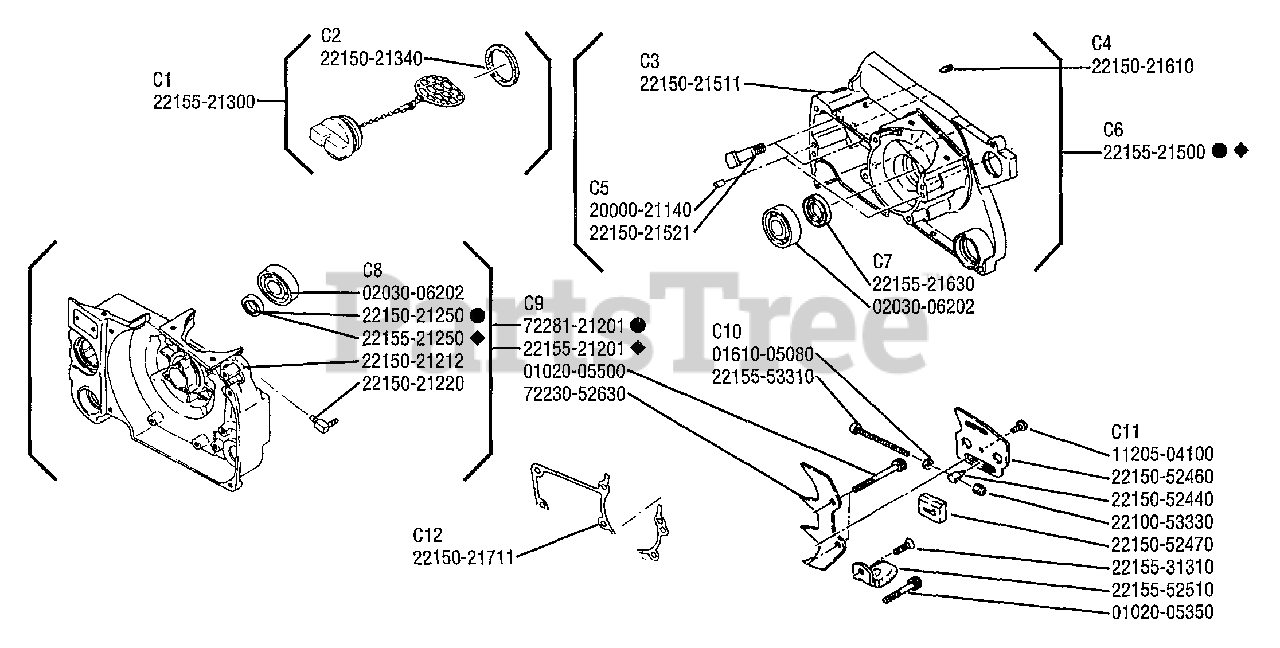

575 - Shindaiwa Chainsaw Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title
C1-22155-21300

Echo 22155-21300

OIL CAP ASSY
(Superseded to Discontinued)

$

$

Not available

C2-22150-21340

Echo 22150-21340

GASKET
(Superseded to Discontinued)

$

$

Not available

C3-22150-21511

Echo 22150-21511

CRANKCASE C
(Superseded to 22152-21510)

$73.99

$

Usually ships in 2-4 days

0

C4-22150-21610

Echo 22150-21610

VALVE, OIL
(Superseded to 43611413930)

$6.49

$

Usually ships in 2-4 days

0

C5-20000-21140

Echo 20000-21140

PIN, DOWEL
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

C5-22150-21521

Echo 22150-21521

BOLT, BAR
(Superseded to V225000170)

$2.99

$

Usually ships in 2-4 days

0

C6-22155-21500

Echo 22155-21500

CRANKCASE C ASSY
(Superseded to 22152-21501)

Note: 575; 695

$73.99

$

Usually ships in 2-4 days

0

C7-22155-21630

Echo 22155-21630

SEAL, OIL C
(Superseded to V508000080)

$11.99

$

In Stock, only 1 left!

0

C7-02030-06202

Echo 02030-06202

BEARING, BALL
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

C8-02030-06202

Echo 02030-06202

BEARING, BALL
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

C8-22150-21250

Echo 22150-21250

OIL SEAL
(Superseded to V505000140)

Note: 575

$3.49

$

In Stock, only 1 left!

0

C8-22155-21250

Echo 22155-21250

OIL SEAL, M, USE 22150-21250
(Superseded to 22150-21250)

Note: 695

$3.49

$

In Stock, only 1 left!

0

C8-22150-21212

Echo 22150-21212

CRANKCASE M
(Superseded to 22155-21201)

$

$

Not available

C8-22150-21220

Echo 22150-21220

PULSE JOINT
(Superseded to V185000000)

$6.49

$

Usually ships in 2-4 days

0

C9-72281-21201

Echo 72281-21201

CRANKCASE M ASSY
(Superseded to Discontinued)

Note: 595

$

$

Not available

C9-22155-21201

Echo 22155-21201

CRANKCASE M COMPLETE
(Superseded to Discontinued)

Note: 695

$

$

Not available

C9-01020-05500

Echo 01020-05500

BOLT
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

C9-72230-52630

Echo 72230-52630

SPIKE
(Superseded to C304000160)

$8.99

$

Usually ships in 2-4 days

0

C10-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

C10-22155-53310

Echo 22155-53310

SCREW, SLIDE
(Superseded to V253000600)

$1.99

$

In Stock, Qty 7

0

C11-11205-04100

Echo 11205-04100

SCREW
(Superseded to 9157304010)

$0.99

$

In Stock, Qty 5

0

C11-22150-52460

Echo 22150-52460

GUARD, MOUNT

$2.99

$

Usually ships in 2-4 days

0

C11-22150-52440

Echo 22150-52440

ADJUSTING STUD
(Superseded to C309000110)

$2.49

$

In Stock, Qty 14

0

C11-22100-53330

Echo 22100-53330

NUT, LOCK
(Superseded to V263000280)

$0.99

$

In Stock, Qty 5

0

C11-22150-52470

Echo 22150-52470

CHAIN GUIDE
(Superseded to Discontinued)

$

$

Not available

C11-22155-31310

Echo 22155-31310

SCREW
(Superseded to Discontinued)

$

$

Not available

C11-22155-52510

Echo 22155-52510

CHAIN CATCHER
(Superseded to C310000090)

$8.49

$

Usually ships in 2-4 days

0

C11-01020-05350

Echo 01020-05350

BOLT
(Superseded to 90010505035)

$1.49

$

In Stock, only 1 left!

0

C12-22150-21711

Echo 22150-21711

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available
