575 (990154) - Simplicity Wonderboy Rear-Engine Riding Mower POWER TAKE-OFF AND ENGINE PULLEY-Model 575 Parts Diagram

Wonderboy Rear-Engine Riding Mower

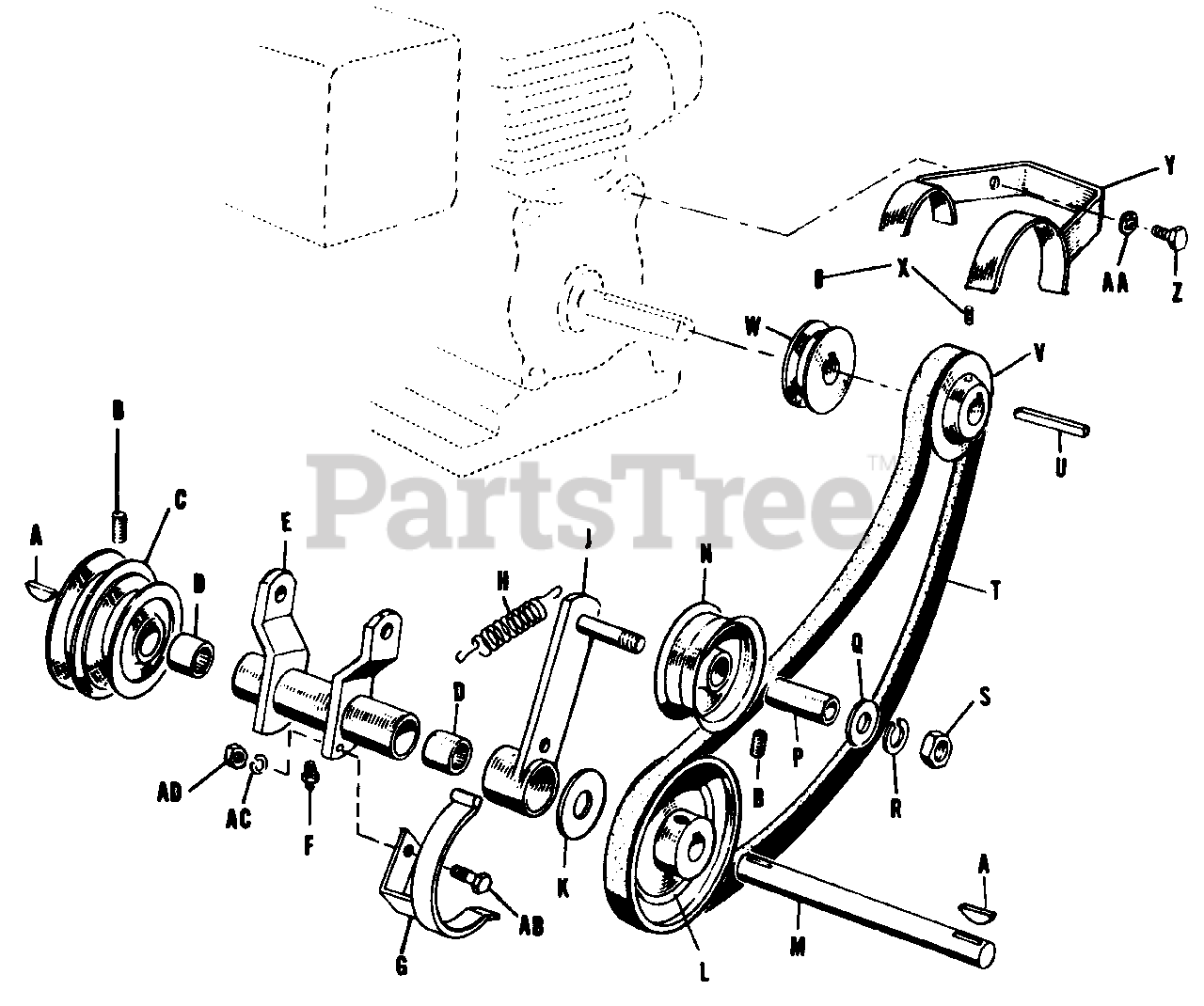

POWER TAKE-OFF AND ENGINE PULLEY-Model 575 Parts Diagram

  • Title

A

Simplicity 2725003

Key, Woodruff, 3/16 x 3/4

$

$

Not available

B

Simplicity 2713501

Screw, Set, 5/16-18 x 1/2

$

$

Not available

C

Simplicity 121214

Pulley

$

$

Not available

D

Simplicity 2108054

Bearing, Needle

$

$

Not available

E

Simplicity 121045

Bracket Assembly, Drive

$

$

Not available

F

Simplicity 2727002

Grease Fitting, Alemite #1641

$

$

Not available

G

Simplicity 121215

Retainer, Belt

$

$

Not available

H

Simplicity 8111047

Spring

$

$

Not available

J

Simplicity 121049

Lever, Idler Assembly

$

$

Not available

K

Simplicity 2116001

Washer

$

$

Not available

L

Simplicity 109052

Pulley

$

$

Not available

M

Simplicity 108014

Shaft, Idler

$

$

Not available

N

Simplicity 2154310

Pulley, Idler

$

$

Not available

P

Simplicity 1729274SM

Race, Inner Bearing

$

$

Not available

Q

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

R

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

S

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

T

Simplicity 2121216SM

V Belt

$

$

Not available

U

Simplicity 121226

Key, Engine Pulley

$

$

Not available

V

Simplicity 121225

Pulley, Engine to P.T.O.

$

$

Not available

W

Simplicity 121224

Pulley, Engine to Transmission

$

$

Not available

X

Simplicity 2713503

Screw, Set, Cup Point, Socket Hd., 5/16-18 x 5/16

$

$

Not available

Y

Simplicity 121261

Bracket Assembly, Belt Guard

$

$

Not available

Z

Simplicity 2706010

Capscrew, Hex Hd., 1/2-20 x 3/4

$

$

Not available

AA

Simplicity 2721506

Washer, Lock, 1/2 Internal Shakeproof

$

$

Not available

AB

Simplicity 2705030

Capscrew, Hex Hd., 1/4-20 x 3/4

$

$

Not available

AC

Simplicity 2720003

Washer, Lock, 1/4

$

$

Not available

AD

Simplicity 2717005

Nut, Full Hex, 1/4-20

$

$

Not available
