57430 (12-44) - Toro Pro Lawn Tractor (SN: 008000001 - 008999999) (1988) REAR BODY & SEAT ASSEMBLY Parts Diagram

Pro Lawn Tractor

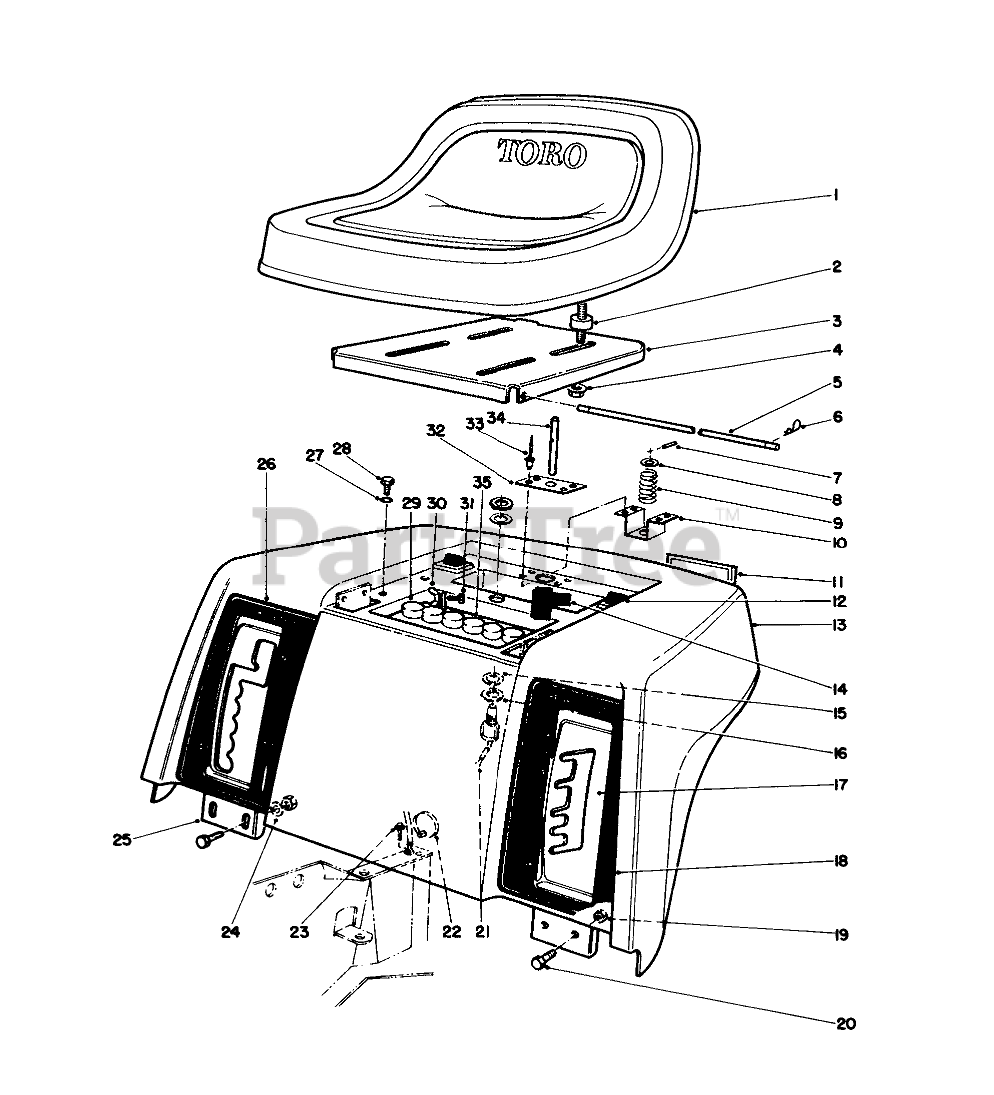

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 62-5480

ISOLATER-SEAT

$35.99

$

Usually ships in 3-6 days

0

3

Toro 36-1490

SEAT SUPPORT R

$

$

Not available

4

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 28-2400

PIVOT-SEAT

$60.99

$

Usually ships in 3-6 days

0

6

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

7

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

8

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

9

Toro 66-7090

COMPRESSION SPRING

$

$

Not available

10

Toro 66-7070

Bracket-Spring

$

$

Not available

11

Toro 218-491

REFLECTOR

$

$

Not available

12

Toro 28-9440

SEAT BUMPER

$

$

Not available

13

Toro 13-0509

Body-Rear Assembly (Incl. Ref. #18 & 26)

$

$

Not available

14

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

15

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

17

Toro 36-1950

Quadrant Height of Cut

$

$

Not available

18

Toro 63-5740

Decal-Height of Cut

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 56-7640

Switch-Seat (Incl. Ref. #16)

$159.99

$

In Stock, only 2 left!

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 28-0370

DETENT PLATE B

$

$

Not available

26

Toro 63-5750

Decal-Transmission

$

$

Not available

27

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

28

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

29

Toro 49-7030

Battery

$

$

Not available

30

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 66-7080

RETAINER PLATE

$

$

Not available

33

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

34

Toro 66-7060

Rod-Plunger

$

$

Not available

35

Toro 218-577

NON-VENTED BATTERY CAP

$

$

Not available
