57430 (12-44) - Toro Pro Lawn Tractor (SN: 008000001 - 008999999) (1988) ENGINE BRIGGS & STRATTON MODEL 281707-0165-01 Parts Diagram

Pro Lawn Tractor

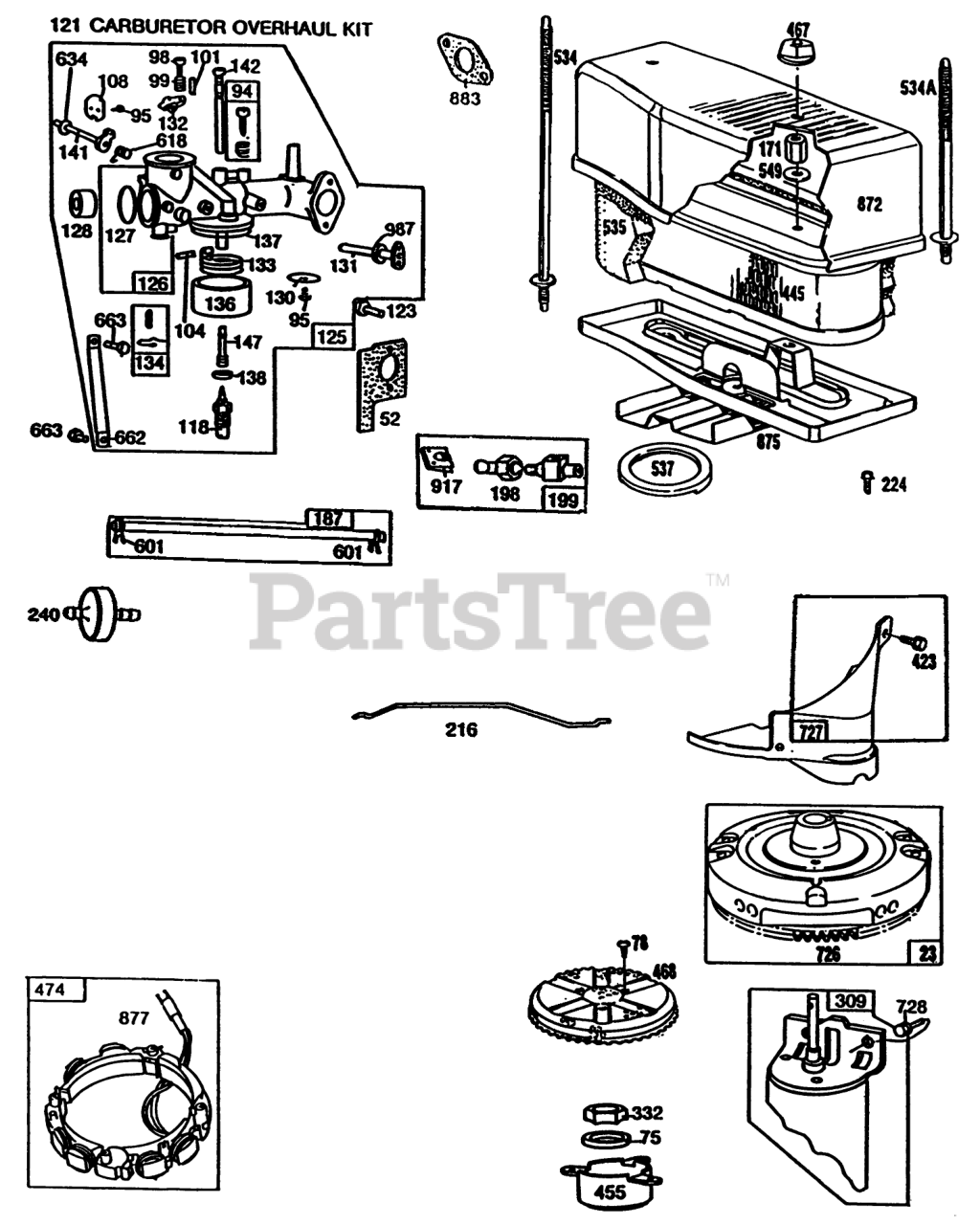

ENGINE BRIGGS & STRATTON MODEL 281707-0165-01 Parts Diagram

  • Title

23

Briggs & Stratton 399917

Flywheel/Ring Gear Ass-y
(Superseded to 693557)

$

$

Not available

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

$5.49

$

In Stock, Qty 11

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 93805

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve Assembly

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 396568

Valve Needle

$20.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 14

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 491031

Carburetor Assy

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 490473

Body-Carburetor

$109.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222433

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 491006

Shaft & Lever, Throttle

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 394681

Valve-Fuel Inlet

$7.99

$

In Stock, only 1 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Briggs & Stratton 270511

Gasket-Bowl

$3.49

$

In Stock, Qty 19

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

$4.99

$

In Stock, Qty 9

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

$24.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 231532

Nut-Air Cleaner
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 399949

Valve-Fuel Tank
(Superseded to 492649)

$

$

Not available

216

Briggs & Stratton 261610

Link-Choke

$

$

Not available

224

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

309

Motor Starting (12 Volt) See Page 23 for Replacement Parts for Starting Motors

$

$

Not available

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 491519

Cartridge-Air Cleaner
(Superseded to 399806S)

$28.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 2 left!

0

468

Briggs & Stratton 223713

Screen-Flush Rotating
(Superseded to 492065)

$204.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 94248

Stud-Air Cleaner
(Superseded to 695830)

$12.99

$

Usually ships in 2-12 days

0

534A

Briggs & Stratton 94246

Stud-Air Cleaner

$11.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 271962

Element-Air Cleaner
(Superseded to 271962S)

$6.49

$

In Stock, Qty 7

0

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

549

Briggs & Stratton 94249

Screw-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

Gear Ring (Incl. Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter (Includes Mounting Screws)

$26.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

872

Briggs & Stratton 223700

Cover-Air Cleaner

$44.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 490332

Body-Air Cleaner

$

$

Not available

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

$

$

Not available

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0
