57400 - Toro Lawn Tractor, 12hp (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor, 12hp

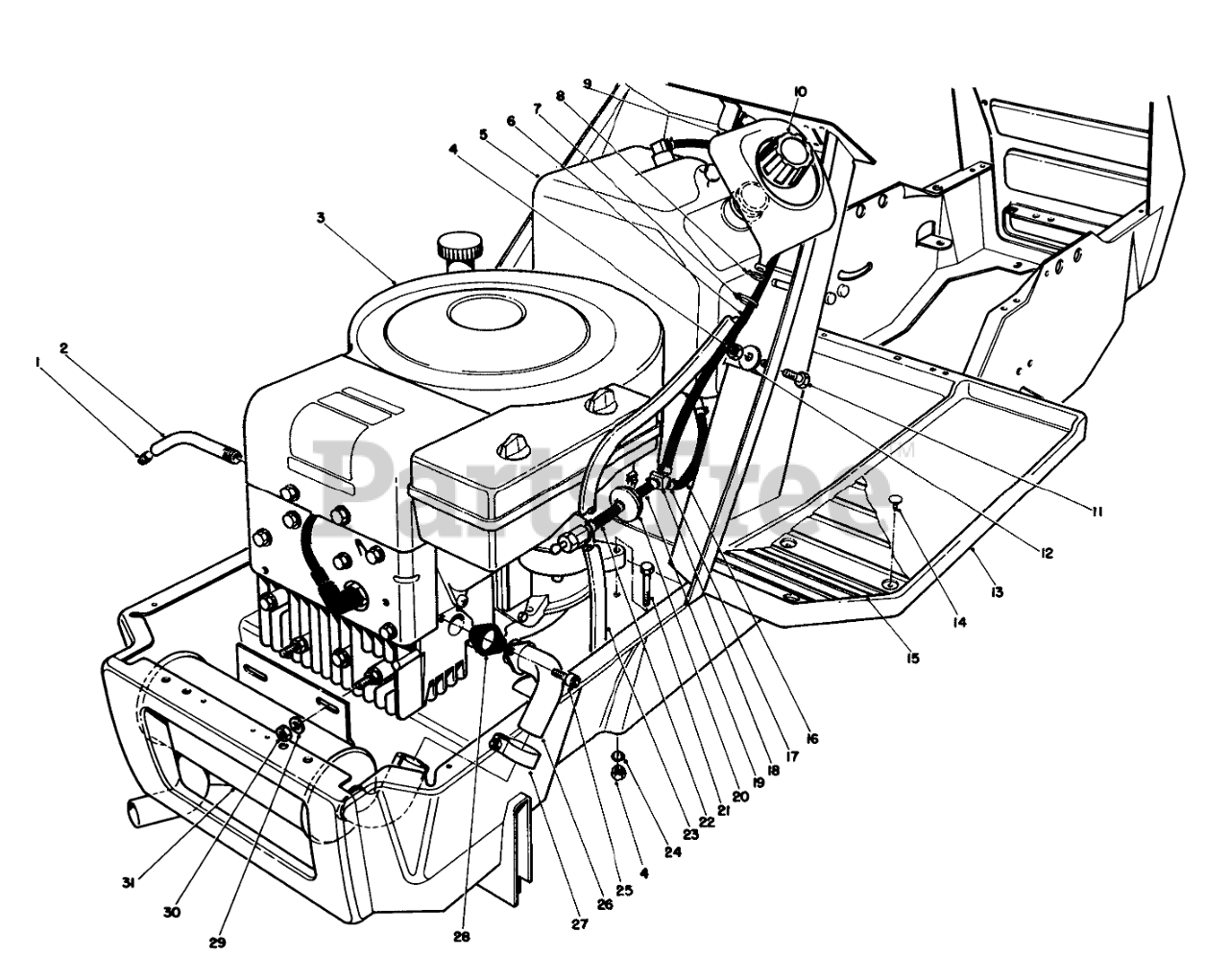

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 13-0479

Gas Tank Assembly (Incl. Ref. #9, 10)

$338.99

$

In Stock, only 1 left!

0

6

Toro 47-2981

HOSE -RETURN
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

7

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

8

Toro 2412-62

HOSE CLAMP

$

$

Not available

9

Funnel-Overflow

$

$

Not available

10

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

13

Toro 66-9210

FRAME WA RO

$

$

Not available

14

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

15

Toro 63-5680

L/H FOOTREST TREAD

$

$

Not available

Toro 63-5690

R/H FOOTREST TREAD

$

$

Not available

16

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.99

$

In Stock, only 4 left!

0

17

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

Toro 353-778

Fitting-Barbed Y

$

$

Not available

19

Toro 47-2960

GAS HOSE

$

$

Not available

20

Filter-Fuel

$

$

Not available

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Hose-Gas

$

$

Not available

23

Toro 39-4030

FUNNEL HOSE

$

$

Not available

24

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3274-53

SCREW-HSH

$

$

Not available

26

Toro 63-5640

12 HP EXHAUST PIPE WA

$

$

Not available

27

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

28

Gasket-Exhaust

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

31

Toro 63-5650

Muffler

$

$

Not available

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

Toro 63-5660

Muffler-Spark Arrester (Optional)

$

$

Not available

Toro 13-0429

Loose Parts

$

$

Not available
