574 (574124) - Cub Cadet Walk-Behind Mower (1984) Strut Bars And Gas Tank Assy. Parts Diagram

Walk-Behind Mower

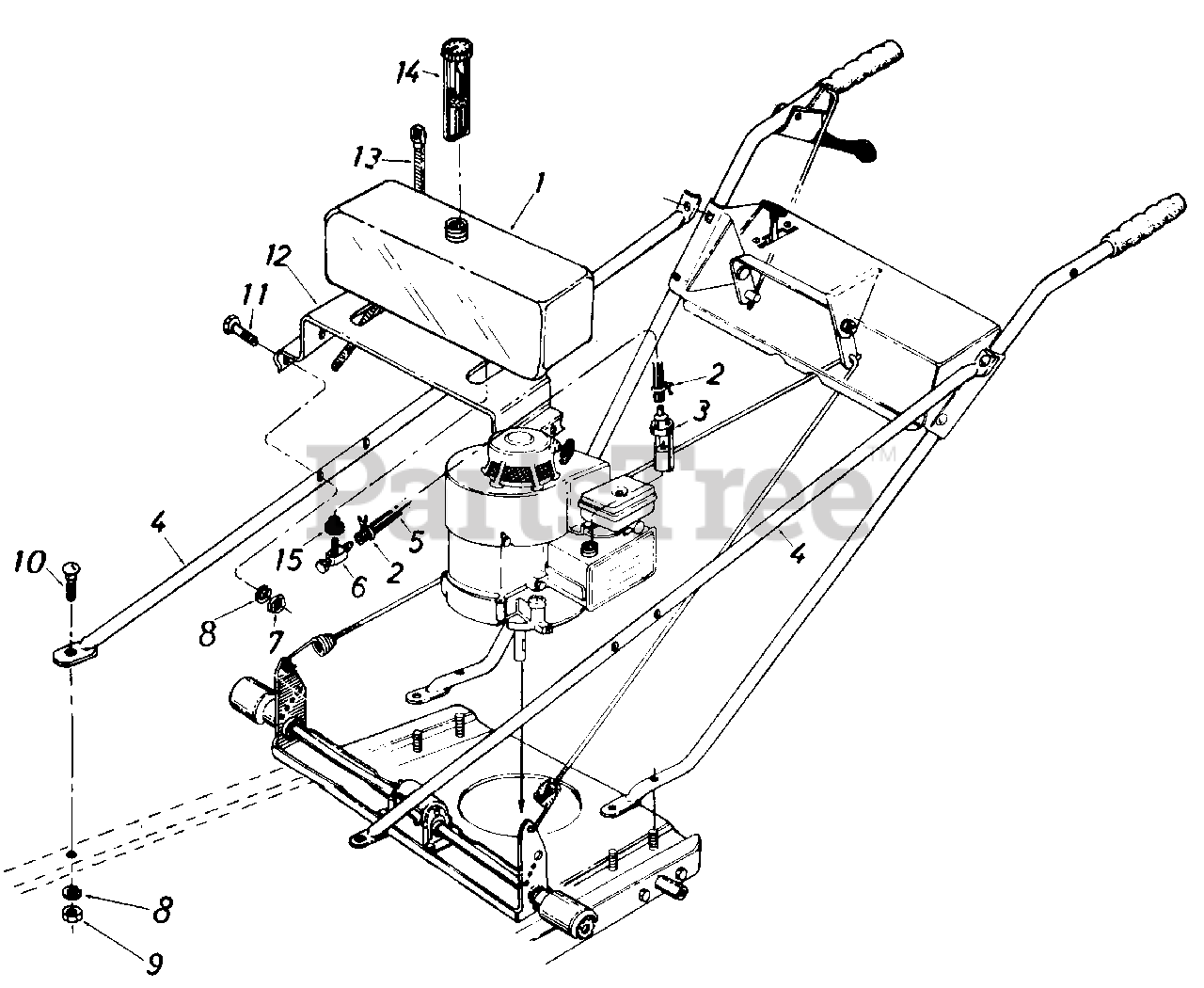

Strut Bars And Gas Tank Assy. Parts Diagram

  • Title

1

Cub Cadet 751-0225

Fuel Tank

$

$

Not available

2

Cub Cadet 726-0183

Hose Clamp 3/8" I.D.

$

$

Not available

3

Cub Cadet 751-0297

Fuel Control Valve

$

$

Not available

4

Cub Cadet 749-0523

Strut

$

$

Currently unavailable

5

Cub Cadet 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

6

Cub Cadet 751-0171

Fuel Tank Fitting
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0123

Hex Nut 5/16-24" Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 14426

Fuel Tank Mntg. Brk't.

$

$

Not available

13

Cub Cadet 726-0153

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

14

Cub Cadet 723-0155

Fuel Gauge

$

$

Not available

15

Cub Cadet 735-0149

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0
