574 (574123) - Cub Cadet Walk-Behind Mower (1983) Throttle Control And Clutch Grip Assemblies Parts Diagram

Walk-Behind Mower

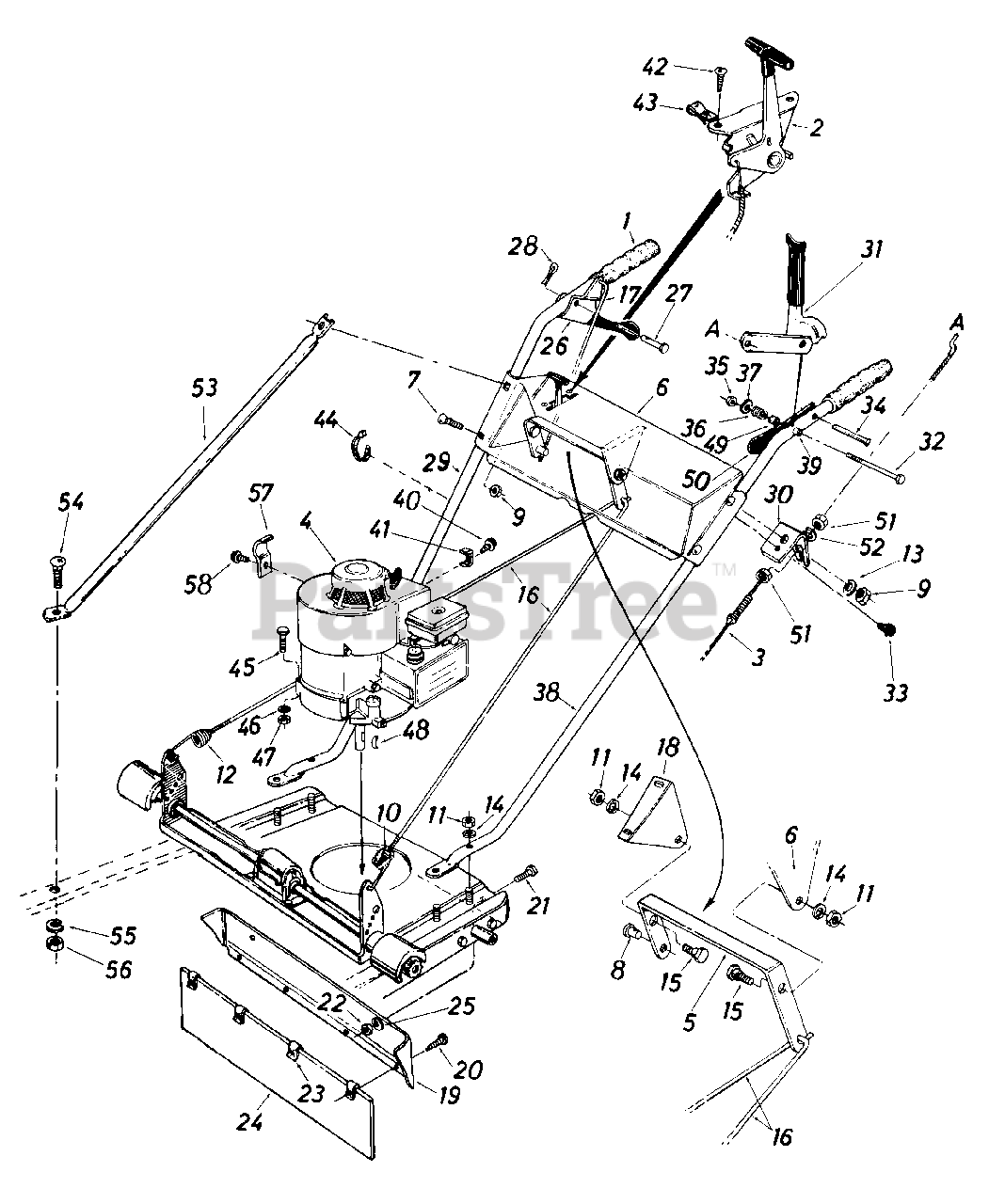

Throttle Control And Clutch Grip Assemblies Parts Diagram

  • Title

1

Cub Cadet 720-0204

Grip - Black

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 746-0378

Throttle Control Ass'y. - Comp.

$

$

Not available

3

Cub Cadet 746-0488

Clutch Cable - 56" Long

Note: Code N

$

$

Not available

4

Engine

$

$

Not available

5

Cub Cadet 12570

Link Bracket

$

$

Currently unavailable

6

Cub Cadet 15335

Handle Panel Ass'y.

$

$

Currently unavailable

7

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 711-0619

Adj. Ferrule 1/4-20 Thd.

$

$

Not available

9

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 732-0305

Extension Spring

$

$

Not available

13

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0234

Shld. Bolt .500" Dia. x .295

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 747-0162

Lockout Rod

$

$

Currently unavailable

17

Cub Cadet 747-0163

Rod .214" Dia. x 14.38" Lg.

$

$

Not available

18

Cub Cadet 12571

Bracket

$

$

Currently unavailable

19

Cub Cadet 12548

Drag Shield Adapter

$

$

Currently unavailable

20

Cub Cadet 710-0436

Hex B-Tap Scr. #10 x .62" Lg
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0567

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 726-0130

Speed Nut 102 U-Type
(Superseded to 926-0130)

$

$

Not available

24

Cub Cadet 735-0182

Drag Shield 4.65" x 20.0" Lg.

$

$

Currently unavailable

25

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 12921

Clutch Grip Ass'y.

$

$

Not available

27

Cub Cadet 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 749-0556

R.H. Handle

Note: Code N

$

$

Currently unavailable

30

Cub Cadet 15093

Clutch Cable Brk't.

$

$

Not available

31

Cub Cadet 15482

Blade Clutch Grip Ass'y.

Note: Code N

$

$

Currently unavailable

32

Cub Cadet 710-0641

Hex Bolt 1/4-20 x 2.25" Lg.

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 731-0607

Lock Pin

Note: Code N

$

$

Not available

35

Cub Cadet 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

36

Cub Cadet 732-0334

Compression Spring .50" O.D. x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0498

Internal Tooth L-Wash.

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 749-0557

L.H. Handle

Note: Code N

$

$

Currently unavailable

39

Cub Cadet 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

Note: Code N

$9.99

$

In Stock, only 1 left!

0

40

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38" Lg
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-0333

Casing Clamp

$

$

Not available

42

Cub Cadet 710-0224

Hex Wash. Hd. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0344

Speed Nut 10Z

$

$

Not available

44

Cub Cadet 725-0157

Cable Tie Self Clinching

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

46

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

48

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-0565

Spacer .255" I.D. x .375" O.D.

Note: Code N

$7.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 732-0441

Lock Spring

$

$

Not available

51

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

52

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 749-0523

Strut

$

$

Currently unavailable

54

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 12894

Casing Clamp

$

$

Not available

58

Cub Cadet 710-0456

Hex Wash. Hd. Tap Scr. #10 x .50" Lg.

$

$

Not available
