57385 - Toro Lawn Tractor, 11hp (SN: 001000001 - 001999999) (1981) 36" SNOWTHROWER ATTACHMEHT MODEL NO. 59136 Parts Diagram

Lawn Tractor, 11hp

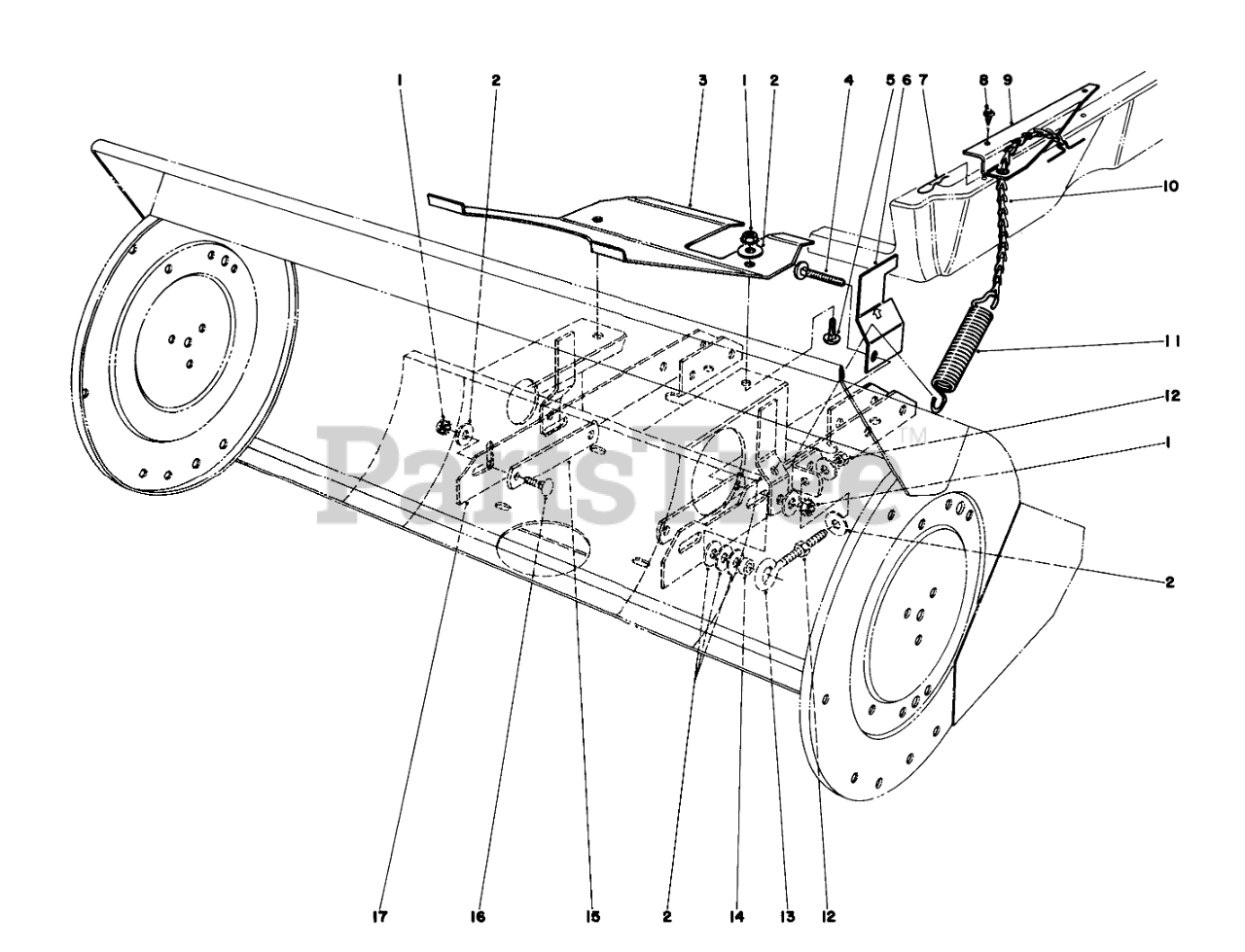

36" SNOWTHROWER ATTACHMEHT MODEL NO. 59136 Parts Diagram

  • Title
1

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-0920

Guard-Drive Pulley

$

$

Not available

4

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 14

0

5

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 40-0900

Bracket-Belt Adjust Guide

$

$

Not available

7

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 40-0680

Plate-Lift Spring Anchor

$

$

Not available

10

Toro 40-0660

CHAIN & TOGGLE ASM

$

$

Not available

11

Toro 40-0670

IDLER ARM SPRING

$

$

Not available

12

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

13

Toro 40-0880

Eye Bolt

$

$

Not available

14

Toro 40-0980

Spacer

$

$

Not available

15

Toro 40-0890

Strap-Header Channel

$

$

Not available

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

17

Toro 40-0910

Pivot Bracket

$

$

Not available
