57380 - Toro Lawn Tractor, 8hp (SN: 000000001 - 000999999) (1980) MULCHER DECK Parts Diagram

Lawn Tractor, 8hp

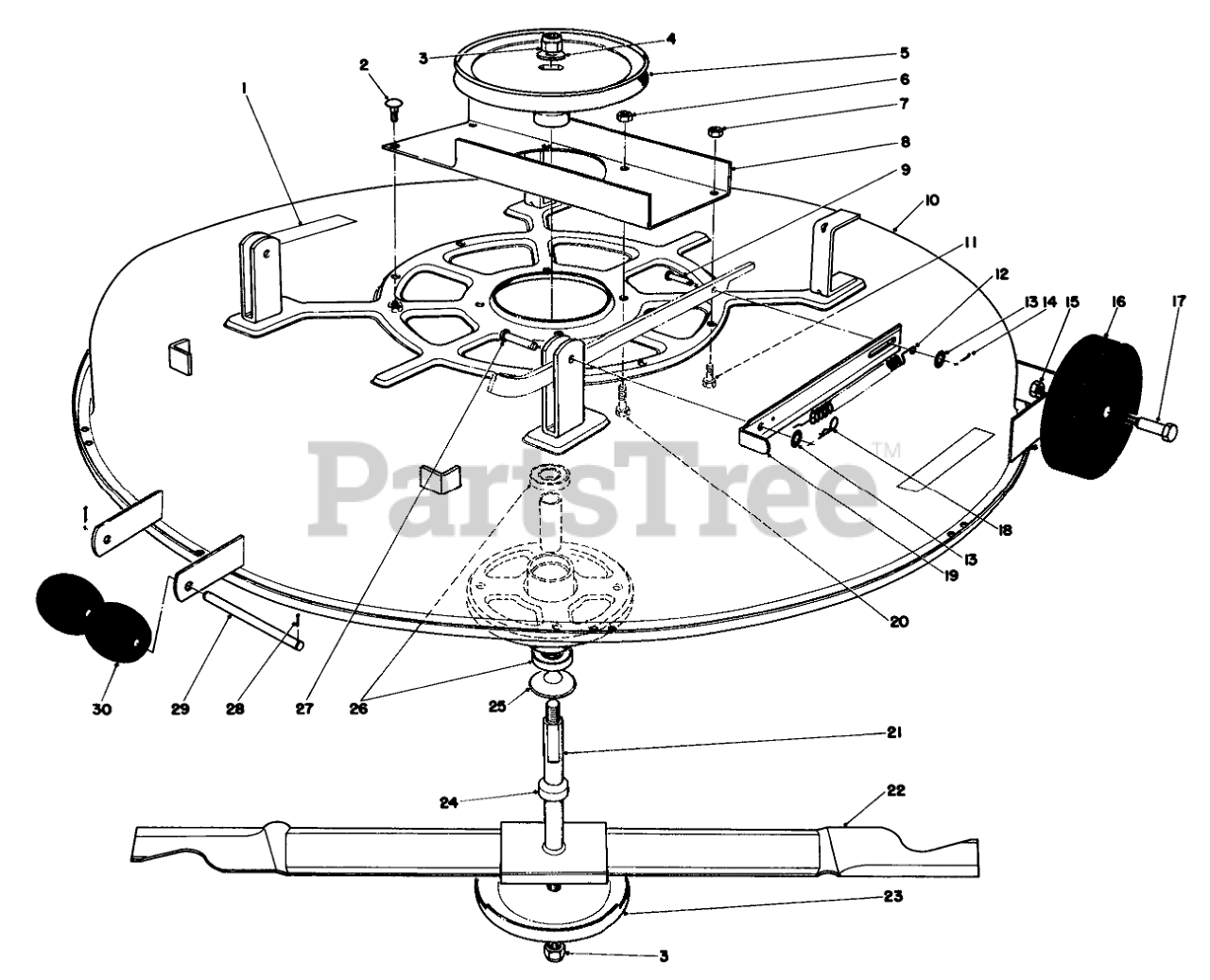

MULCHER DECK Parts Diagram

  • Title
1

Toro 36-6590

Caution Decal

$

$

Not available

2

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

$9.99

$

In Stock, only 4 left!

0

4

Toro 40-0570

Thrust Washer

$

$

Not available

5

Toro 36-4990

BLADE DRIVE PULLEY

$

$

Not available

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

8

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

9

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

10

Toro 39-3300

Mulcher Deck

$

$

Not available

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

16

Toro 29-6010

DECK WHEEL

$

$

Not available

17

$

$

Not available

18

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 28-4280

Spindle Assembly (Incl. Ref. #24-26)
(Superseded to 63-5921)

$

$

Not available

22

Toro 39-3480

Blade
(Superseded to 39-3480-03)

$142.99

$

Usually ships in 3-6 days

0

23

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

24

Toro 38-3180

SPACER

$

$

Not available

25

Toro 38-0470

DUST COVER

$

$

Not available

26

Toro 37-0200

BEARING

$

$

Not available

27

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

29

Toro 7-0277

ROLLER SHAFT

$

$

Not available

30

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0
