57380 - Toro Lawn Tractor, 8hp (SN: 000000001 - 000999999) (1980) HOOD ASSEMBLY MODEL 57380 Parts Diagram

Lawn Tractor, 8hp

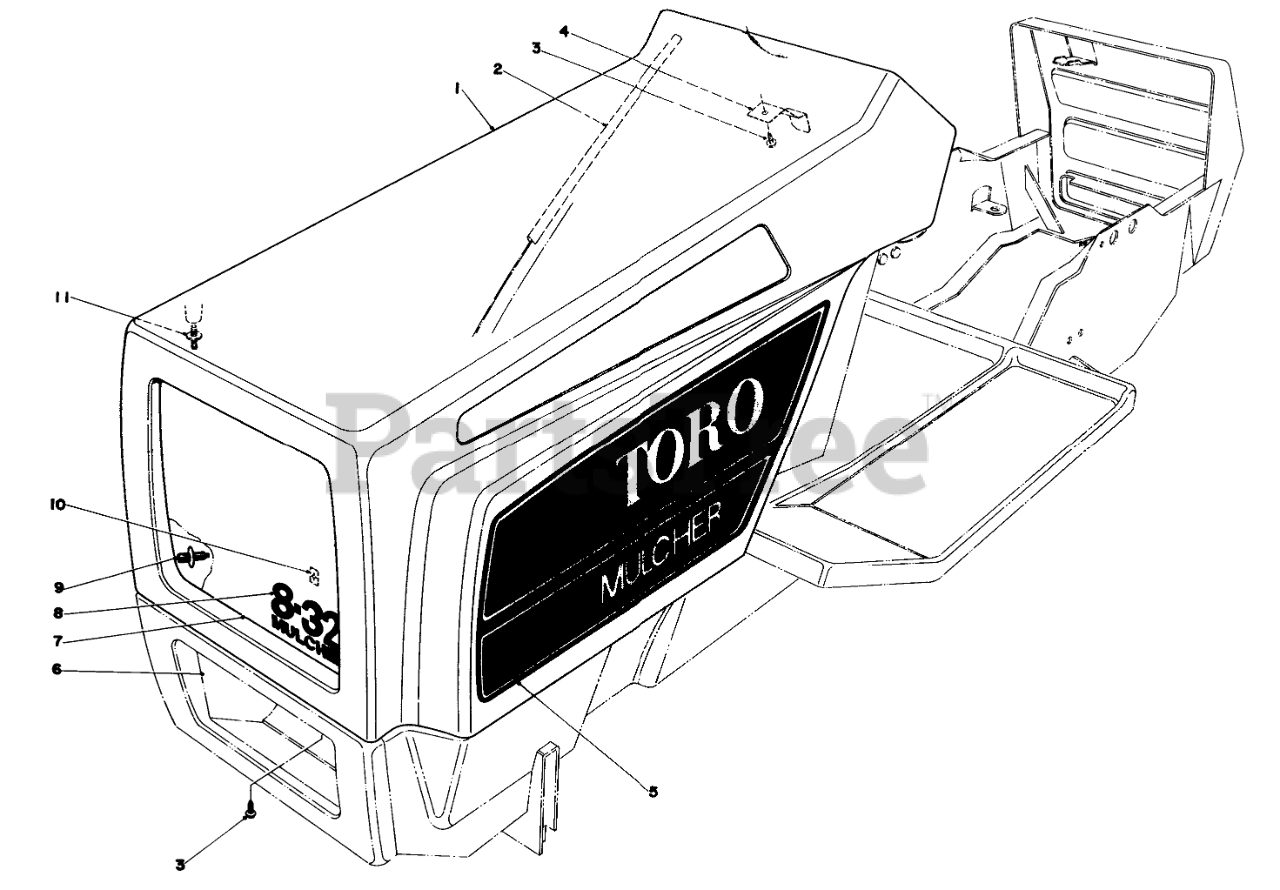

HOOD ASSEMBLY MODEL 57380 Parts Diagram

  • Title
1

Toro 8-6679

Hood (Incl. Ref. #9 & 11)

$

$

Not available

2

Toro 28-3810

RUBBER EXT SEAL

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 27-9130

SPRING LATCH

$

$

Not available

5

Toro 39-5420

Decal-Hood L.H.

$

$

Not available

Toro 39-5430

Decal-Hood R.H.

Note: Not illustrated

$

$

Not available

6

Toro 28-0010

LOWER GRILLE

$74.99

$

Usually ships in 3-6 days

0

7

Toro 36-2110

HOOD GRILLE

$

$

Not available

8

Toro 39-6860

Name Plate-Grille

$

$

Not available

9

Toro 27-9120

HINGE BRKT STUD

$

$

Not available

10

$

$

Not available

11

Toro 39-6800

Stud Hood Duct

$

$

Not available
