57375 - Toro Lawn Tractor, 8hp (SN: 009000001 - 009999999) (1979) STEERING WHEEL & DASH ASSEMBLY Parts Diagram

Lawn Tractor, 8hp

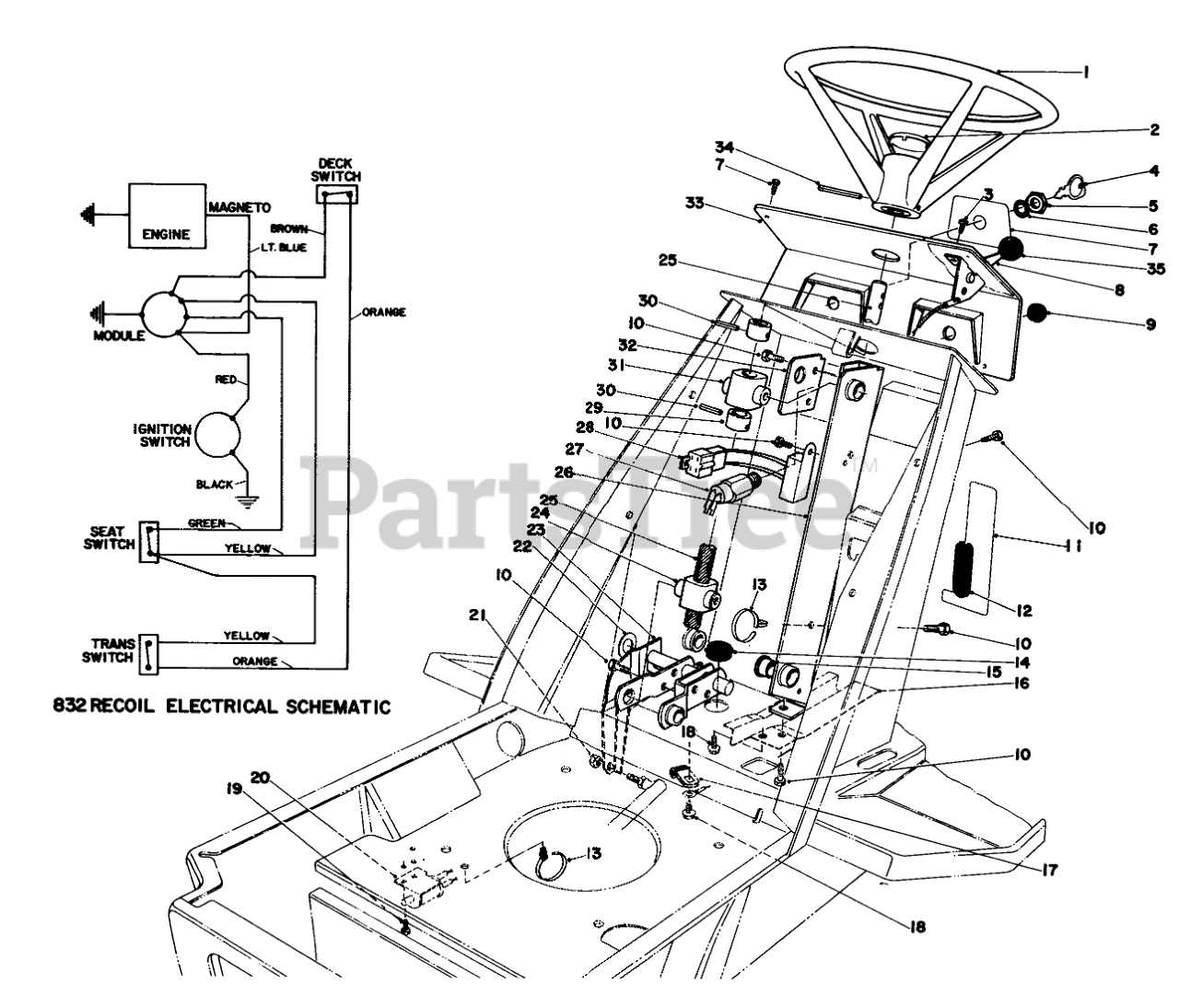

STEERING WHEEL & DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$200.99

$

Usually ships in 3-6 days

0

2

Toro 38-1020

Insert-Steering Wheel

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

5

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

6

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

7

Toro 36-2310

DASH PANEL DECAL

$

$

Not available

8

Toro 38-0990

THROTTLE CONTROL

$142.99

$

Usually ships in 3-6 days

0

9

Toro 2410-46

Domed Plug

$

$

Not available

10

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

11

Toro 36-2230

Decal-Deck

$

$

Not available

12

Toro 29-4780

EDGE MOULDING

$

$

Not available

13

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

14

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

15

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

16

Toro 36-1570

WIRE HARNESS SHLD B

$

$

Not available

17

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

18

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

19

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

20

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

21

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 11-6240

WASHER

$

$

Not available

23

Toro 36-3470

STEERING LINK WA BO

$

$

Not available

24

Toro 37-0140

FOLLOWER STEER SHAFT

$

$

Not available

25

Toro 38-5310

STEERING SHAFT

$

$

Not available

26

Toro 36-2040

STRG BRKT B

$

$

Not available

27

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

28

Toro 38-1430

INTERLOCK MODULE

$

$

Not available

29

Toro 28-3940

STRG SHAFT COLLAR

$

$

Not available

30

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

31

Toro 37-0150

BRG STEERING SHAFT

$

$

Not available

32

Toro 28-0390

STRG BRG SUPPORT

$

$

Not available

33

Toro 28-2460

DASH PANEL

$

$

Not available

34

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

35

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0
