57375 - Toro Lawn Tractor, 8hp (SN: 009000001 - 009999999) (1979) REAR BODY & SEAT ASSEMBLY Parts Diagram

Lawn Tractor, 8hp

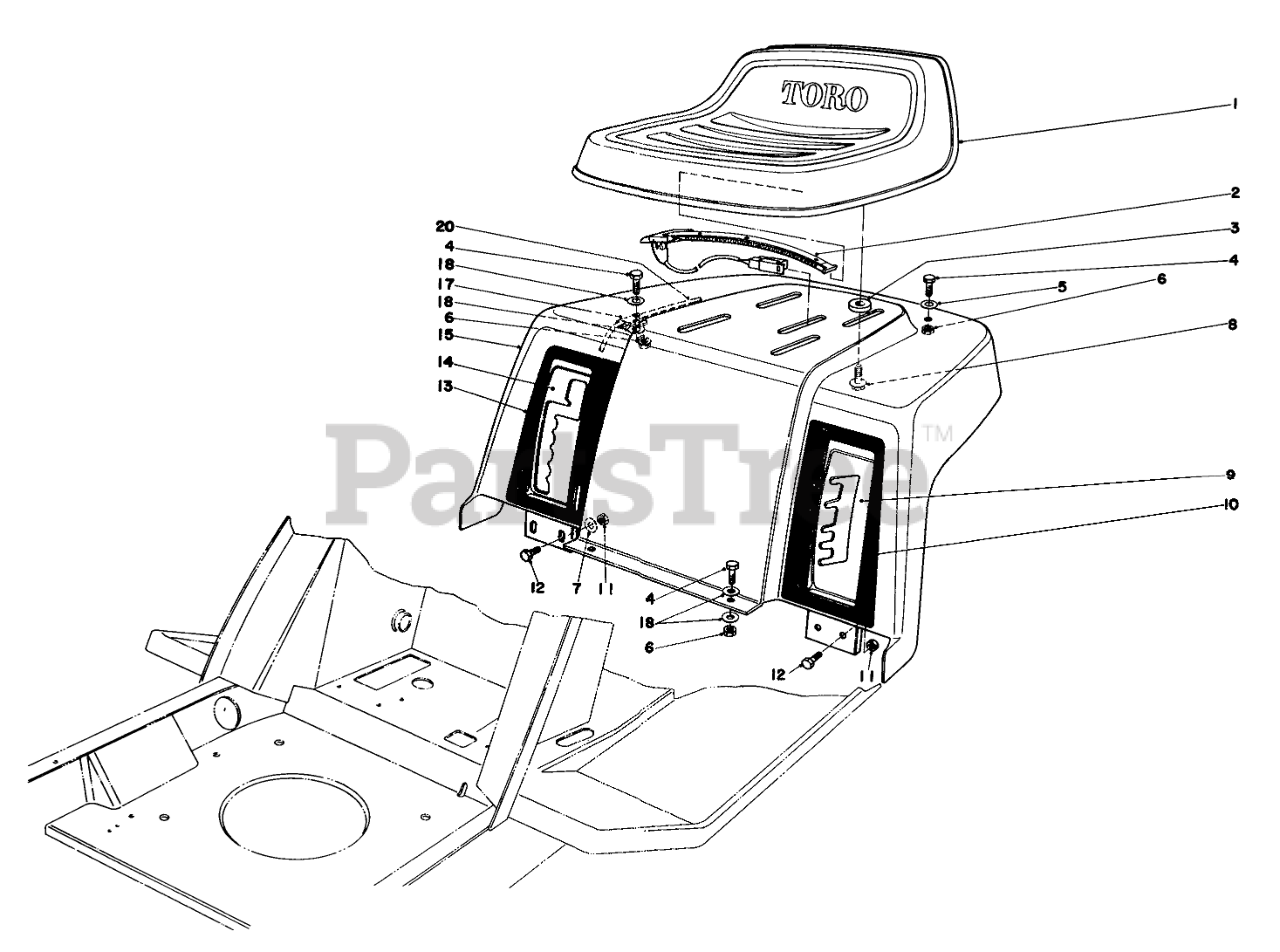

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 38-0850

Seat
(Superseded to 55-8691)

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

9

Toro 28-0530

Quadrant Height of Cut

$

$

Not available

10

Toro 28-4270

Decal Height of Cut
(Superseded to 44-5840)

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

13

Toro 36-1530

Decal-Transmission
(Superseded to 63-5700)

$

$

Not available

14

Toro 28-0370

DETENT PLATE B

$

$

Not available

15

Toro 33-4560

Rear Body

$

$

Not available

17

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 36-1850

Wire Harness

$

$

Not available
