57375 - Toro Lawn Tractor, 8hp (SN: 009000001 - 009999999) (1979) EASY-EMPTY GRASS CATCHER MODEL 59111 Parts Diagram

Lawn Tractor, 8hp

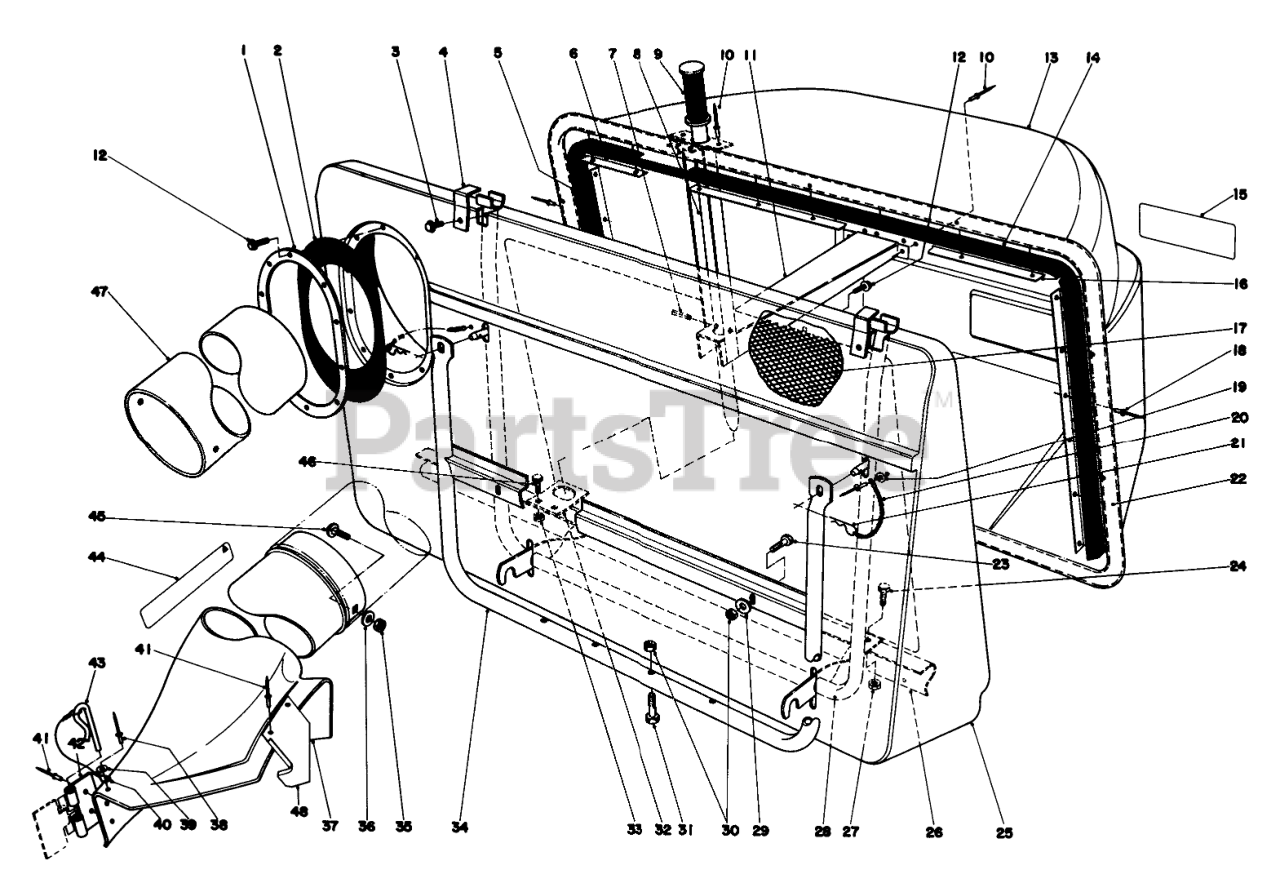

EASY-EMPTY GRASS CATCHER MODEL 59111 Parts Diagram

  • Title

1

Toro 28-7760

RING-RETAINING

$37.99

$

Usually ships in 3-6 days

0

2

Toro 28-7770

RING-RETAINER, RUBBER

$134.99

$

Usually ships in 3-6 days

0

3

Toro 32104-60

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 28-7700

RETNR PIVOT BRKT

$

$

Not available

5

Toro 36-2520

RH BAG SEAL

$141.99

$

Usually ships in 3-6 days

0

6

Toro 29-5540

RETNR TOP EXT.

$

$

Not available

7

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 29-5470

DUMP HANDLE ASM

$175.99

$

In Stock, only 1 left!

0

9

Toro 233-40

GRIP

$

$

Not available

10

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

11

Toro 28-7630

Support-Bag Dump Handle
(Superseded to 38-2920)

$

$

Not available

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 36-2120

REAR GRASS BASKET

$

$

Not available

14

Toro 36-2530

Seal-Bag LH.

$

$

Not available

15

Toro 25-2200

EASY EMPTY BAG DECAL
(Superseded to 92-1754)

$18.99

$

Usually ships in 3-6 days

0

16

Toro 29-5550

BAG RETNR EXT.

$

$

Not available

17

Toro 28-7840

Screen Bag
(Superseded to 28-7840-03)

$225.99

$

Usually ships in 3-6 days

0

18

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

19

Toro 5-1254

WASHER

$

$

Not available

20

Toro 2830-10

10 LINK CHAIN W/O HOOK

$

$

Not available

21

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

22

Toro 28-7670

BAG SUPT ASM FRM

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

25

Toro 28-7810

Bag Front

$

$

Not available

26

Toro 28-7830

FRAME SUPT BRKT B

$

$

Not available

27

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

28

Toro 28-7710

Bag Frame

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

31

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 28-7820

Hanger-Frame Lower

$

$

Not available

33

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

34

Toro 28-7780

BAG SUPPORT WA

$

$

Not available

35

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 28-8060

Chute Assembly (Incl. Ref. #38-44 & 48)

$

$

Not available

38

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

39

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

40

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

41

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

42

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$24.99

$

Usually ships in 3-6 days

0

43

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

44

Toro 26-7030

Decal-Chute
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

45

Toro 3229-24

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

46

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Toro 36-7900

Duct
(Superseded to 47-7210)

$

$

Not available

48

Toro 33-2090

CHUTE SUPT BRKT

$36.99

$

Usually ships in 3-6 days

0

Toro 8-0299

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
