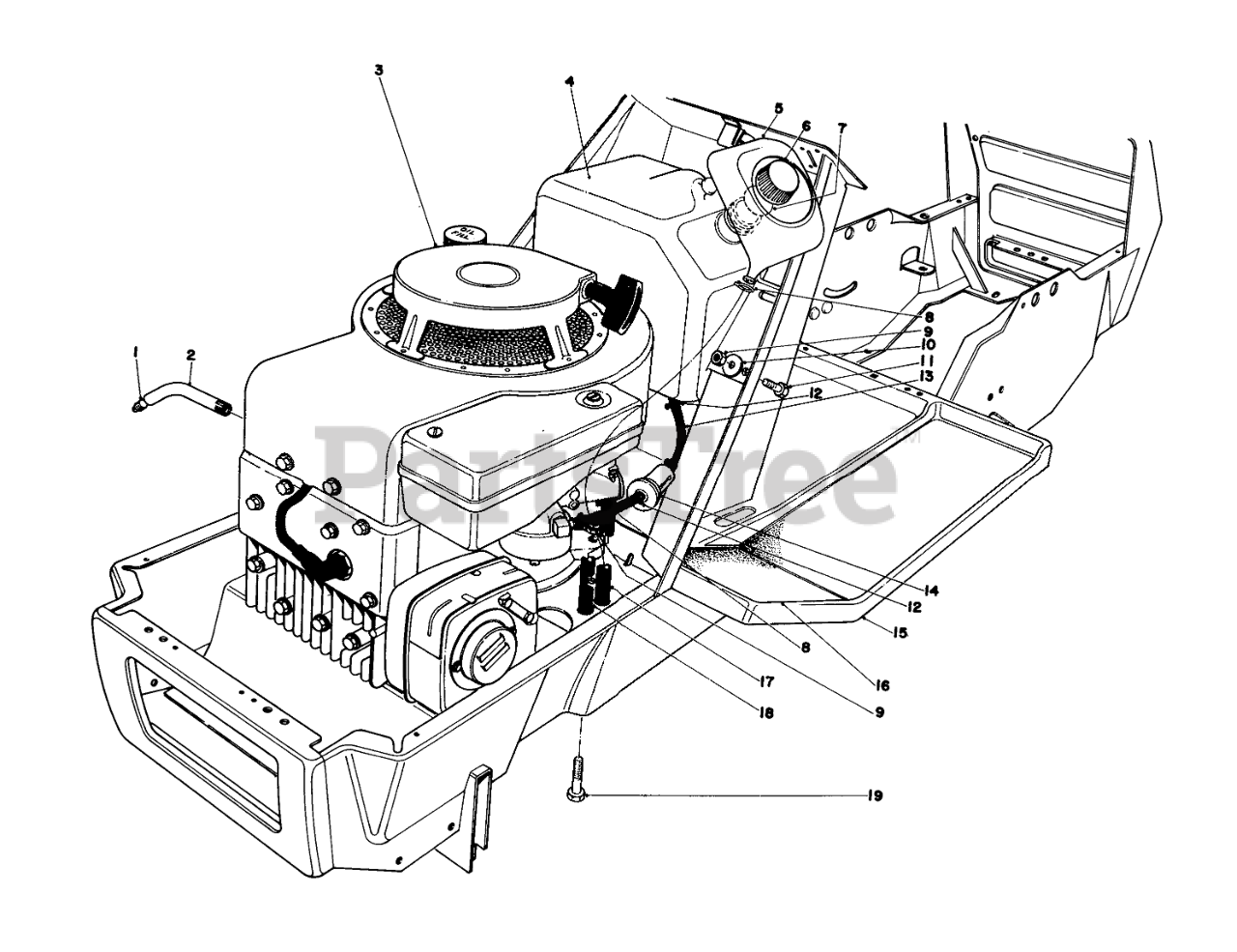

57375 - Toro Lawn Tractor, 8hp (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor, 8hp

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Toro 221-618

Engine

$

$

Currently unavailable

4

Toro 36-3360

Gas Tank (Incl. Ref. #5)
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

5

Funnel-Overflow

$

$

Not available

6

Toro 28-9680

Gas Cap (Incl. Ref. #7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

Gasket Gas Cap
(Superseded to 20-4620)

$10.99

$

In Stock, Qty 6

0

8

Toro 2412-62

HOSE CLAMP

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 38-8010

GAS HOSE

$

$

Not available

14

Toro 38-8000

FUEL FILTER
(Superseded to 108-3854)

$7.99

$

In Stock, Qty 8

0

15

Toro 38-0870

Frame

$

$

Not available

16

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

17

Toro 39-4030

FUNNEL HOSE

$

$

Not available

18

Toro 39-4040

CARB DRAIN HOSE

$

$

Not available

19

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

Toro 8-7119

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
