57375 - Toro Lawn Tractor, 8hp (SN: 000000001 - 000999999) (1980) CUTTING DECK Parts Diagram

Lawn Tractor, 8hp

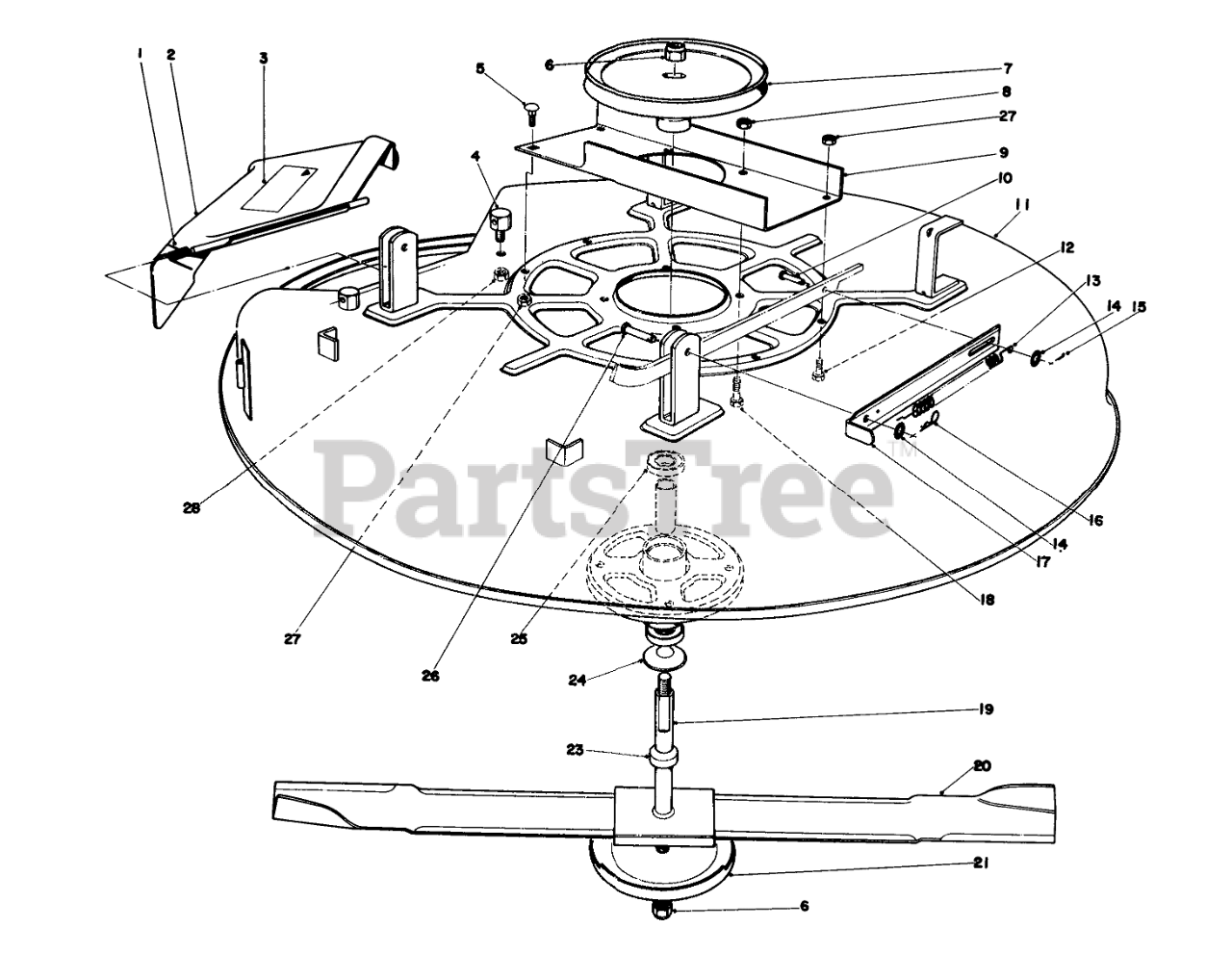

CUTTING DECK Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

2

Toro 28-8190

Deflector Assembly (Incl. Ref. #3)

$

$

Not available

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

5

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

7

Toro 36-4990

BLADE DRIVE PULLEY

$

$

Not available

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

9

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

10

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

11

Toro 39-5780

Cutter Deck

$

$

Not available

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 36-1120

Spindle Assembly (Incl. Ref. #23-25)
(Superseded to 63-5922)

$

$

Not available

20

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

21

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

23

Toro 38-3180

SPACER

$

$

Not available

24

Toro 38-0470

DUST COVER

$

$

Not available

25

Toro 37-0200

BEARING

$

$

Not available

26

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

27

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

28

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0
