57365 (11-38) - Toro Pro Lawn Tractor (SN: 007000001 - 007999999) (1987) TWIN BAGGER GRASS CATCHER MODEL NO. 59184 (OPTIONAL) Parts Diagram

Pro Lawn Tractor

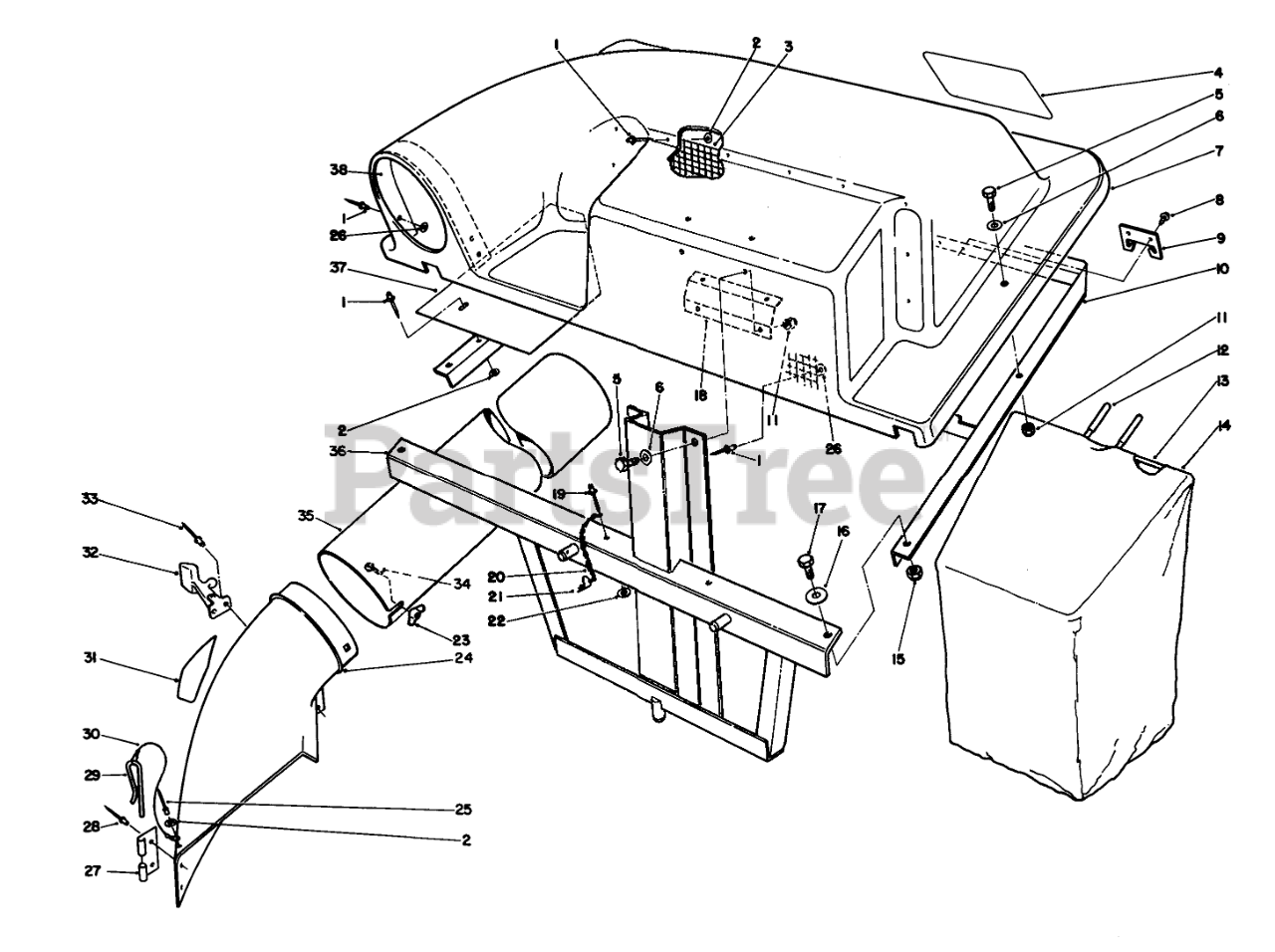

TWIN BAGGER GRASS CATCHER MODEL NO. 59184 (OPTIONAL) Parts Diagram

  • Title

1

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

2

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

3

Toro 61-9890

SCREEN

$51.99

$

Usually ships in 3-6 days

0

4

Toro 62-3640

DECAL-BAGGER, TWIN

$37.99

$

Usually ships in 3-6 days

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 61-9790

COVER-BAGGER, TWIN

$563.99

$

Usually ships in 3-6 days

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 61-9860

BRACKET-FRAME, BAG

$19.99

$

Usually ships in 3-6 days

0

10

Toro 61-9810

Cover-Frame
(Superseded to 61-9810-03)

$314.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 47-2550

GRIP-HANDLE, BAG

$4.99

$

Usually ships in 3-6 days

0

13

Toro 47-2620

Frame-Bag
(Superseded to 47-2620-03)

$90.99

$

In Stock, only 4 left!

0

14

Toro 47-2570

BAG

$117.99

$

In Stock, only 2 left!

0

15

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 61-9880

Plate-Backup
(Superseded to 61-9880-03)

$30.99

$

Usually ships in 3-6 days

0

19

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

20

Toro 2830-10

10 LINK CHAIN W/O HOOK

$

$

Not available

21

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

22

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

23

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

24

Toro 62-7800

Chute Assembly (Incl. Ref. #2, 25 & 27-33)

$503.99

$

Usually ships in 3-6 days

0

25

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

26

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

28

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

29

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

30

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

31

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

32

Toro 57-4670

Latch-38"
(Superseded to 117344)

$36.99

$

Usually ships in 3-6 days

0

33

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

34

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

35

Toro 47-7210

TUBE(ROUND&LONG)

$

$

Not available

36

Toro 61-9900

Frame-Mounting
(Superseded to 61-9900-03)

$723.99

$

Usually ships in 3-6 days

0

37

Toro 61-9870

Baffle
(Superseded to 61-9870-03)

$98.99

$

Usually ships in 3-6 days

0

38

Toro 62-6890

Support Inlet
(Superseded to 62-6890-03)

$51.99

$

Usually ships in 3-6 days

0

Toro 12-7049

Loose Parts

$36.99

$

Usually ships in 3-6 days

0
