57365 (11-38) - Toro Pro Lawn Tractor (SN: 007000001 - 007999999) (1987) FRONT AXLE ASSEMBLY Parts Diagram

Pro Lawn Tractor

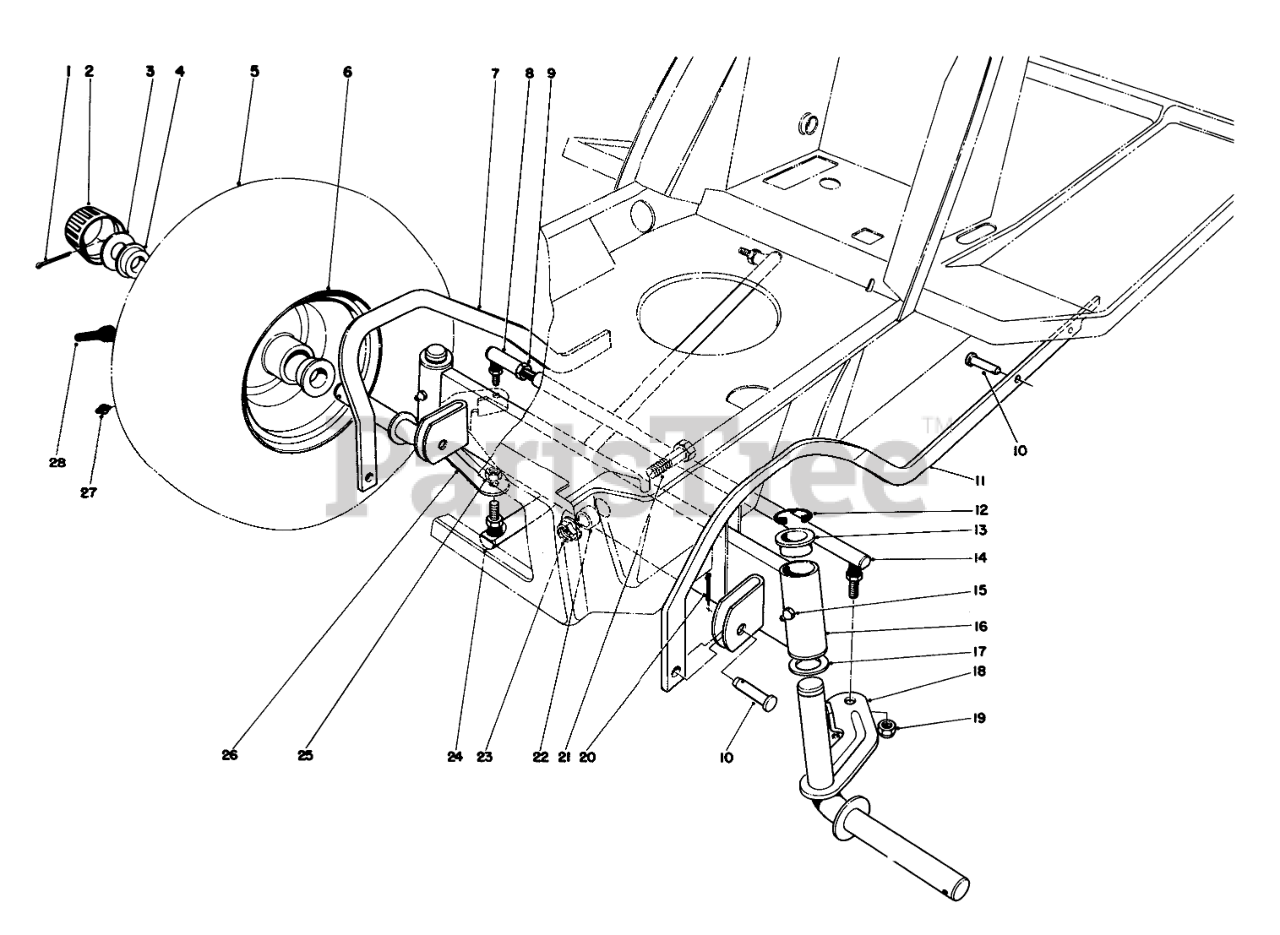

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

3

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

4

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 3 left!

0

5

Toro 231-94

TIRE-FRONT

$99.99

$

In Stock, Qty 5

0

6

Toro 242-60

FRONT WHEEL
(Superseded to 115-4215)

$

$

Not available

7

Toro 28-0200

RH DECK PARALLEL LINK R

$

$

Not available

8

Toro 2411-32

JOINT-BALL

$33.99

$

Usually ships in 3-6 days

0

9

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

10

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

11

Toro 28-0210

LH DECK PARALEL LNKR

$

$

Not available

12

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

13

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

14

Toro 47-5160

Tie Rod Steering (Incl. Ref. #8 & 9)

$

$

Not available

15

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

16

Toro 36-1500

Front Axle (Incl. Ref. #13)

$

$

Not available

17

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

18

Toro 36-1560

Spindle L.H.
(Superseded to 36-1560-03)

$

$

Not available

19

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

21

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

22

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

23

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

24

Toro 39-1910

STEERING ARM B

$

$

Not available

25

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

26

Toro 36-1550

SPINDLE WA RH B

$

$

Not available

27

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

28

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

$155.99

$

Usually ships in 3-6 days

0
