57360 (11-32) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) REAR BODY & SEAT ASSEMBLY Parts Diagram

Lawn Tractor

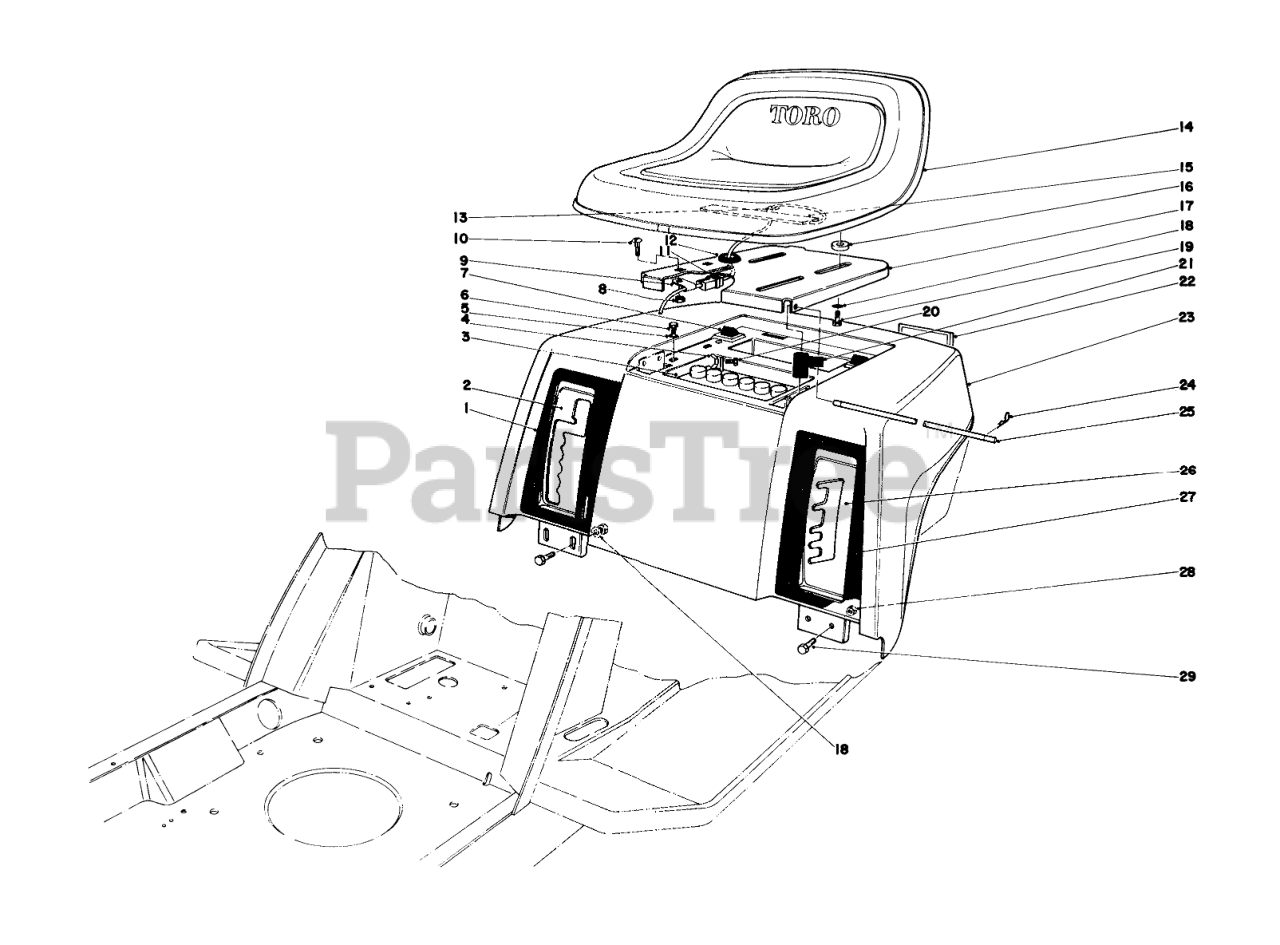

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 36-1530

Decal-Transmission
(Superseded to 63-5700)

$

$

Not available

2

Toro 28-0370

DETENT PLATE B

$

$

Not available

3

Toro 29-9870

Battery

$

$

Currently unavailable

Toro 28-1400

BATTERY-DRY W/CARTON
(Superseded to 104-8162)

Note: Not illustrated

$

$

Not available

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 28-9440

SEAT BUMPER

$

$

Not available

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

9

Toro 2412-66

CLAMP

$

$

Not available

10

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Connector-Female

$

$

Not available

12

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

13

Clip

$

$

Not available

14

Toro 36-2210

Seat (Incl. Ref. #11, 13 & 15) (Model #57360)
(Superseded to 55-8691)

$

$

Not available

Toro 36-2210

Seat (Incl. Ref. #11, 13 & 15) (Model #57300)
(Superseded to 55-8691)

Note: Not illustrated

$

$

Not available

15

Switch-Seat

$

$

Not available

16

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

17

Toro 36-1490

SEAT SUPPORT R

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

22

Toro 218-491

REFLECTOR

$

$

Not available

23

Toro 27-8850

Rear Body
(Superseded to 14-3379)

$

$

Not available

24

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

25

Toro 28-2400

PIVOT-SEAT

$60.99

$

Usually ships in 3-6 days

0

26

Toro 28-0530

Quadrant Height of Cut

$

$

Not available

27

Toro 28-4270

Decal Height of Cut
(Superseded to 44-5840)

$

$

Not available

28

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

29

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0
