57360 (11-32) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) EASY FILL GRASS CATCHER MODEL 59120 Parts Diagram

Lawn Tractor

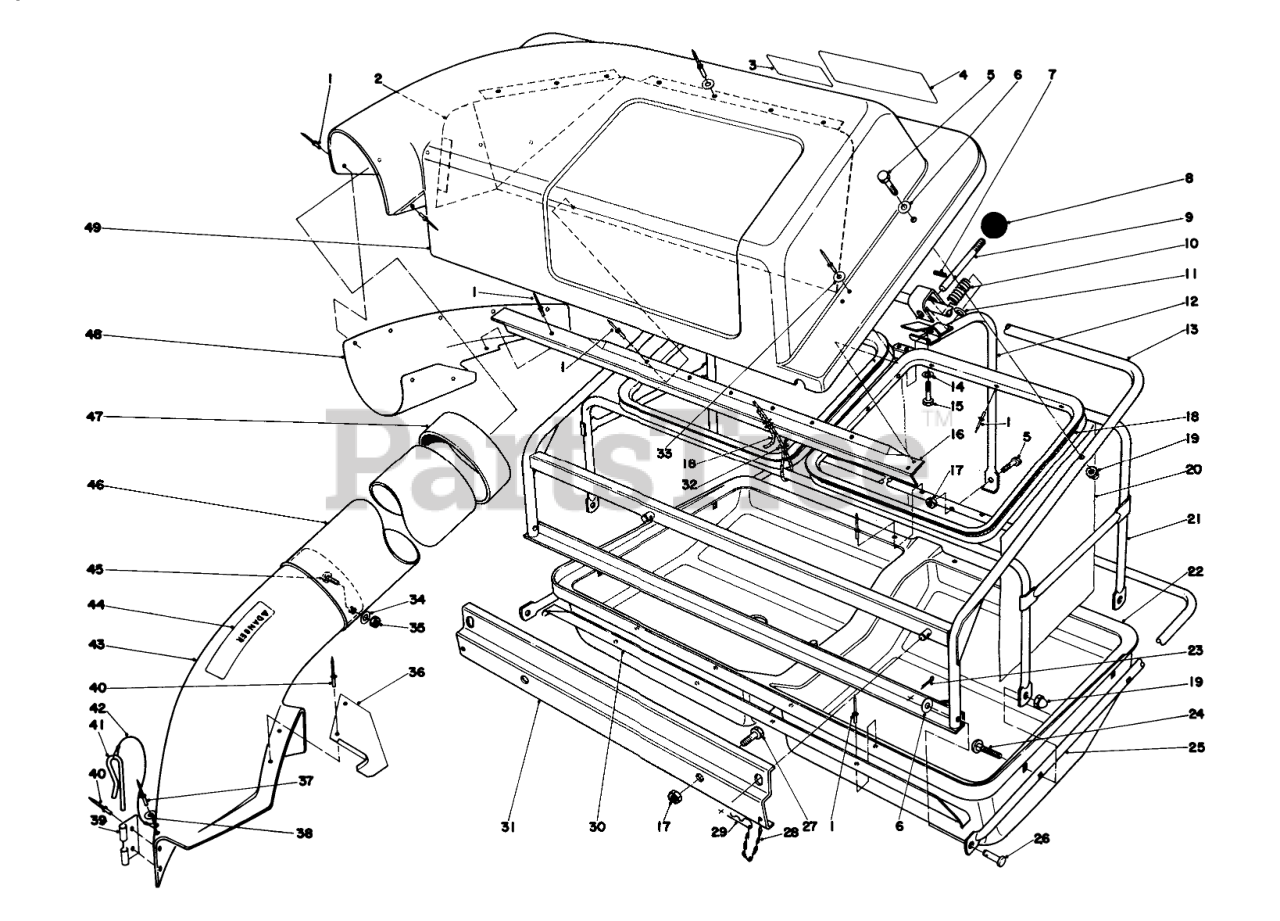

EASY FILL GRASS CATCHER MODEL 59120 Parts Diagram

  • Title

1

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

2

Toro 36-4230

Screen Cover

$

$

Not available

3

Toro 36-7860

LATCH DECAL

$

$

Not available

4

Toro 36-4570

EASY FILL DECAL

$

$

Not available

5

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 32121-18

PIN-ROLL, SLOT

$

$

Not available

8

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

9

Toro 36-4490

Lever-Latch

$

$

Not available

10

Toro 36-8410

Compression Spring

$

$

Not available

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 36-4500

Handle Assembly

$

$

Not available

13

Toro 36-4600

Frame Assembly

$

$

Not available

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

16

Toro 36-4840

Bracket Screen Support

$

$

Not available

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 36-7770

RETAINER CORD

$

$

Not available

19

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

20

Toro 36-7870

Curtain

$

$

Not available

21

Toro 36-4580

Bag Support Assembly

$

$

Not available

22

Toro 36-3370

Hopper

$

$

Not available

23

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

24

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Toro 36-4440

HOPPER SUPT TUBE B

$

$

Not available

26

Toro 283-18

CLEVIS

$1.49

$

Usually ships in 3-6 days

0

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

29

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

30

Toro 36-8270

HOPPER SUPT STRAPB

$

$

Not available

31

Toro 36-4550

Bracket Frame Support

$

$

Not available

32

Toro 249-27

COUPLER

$

$

Not available

33

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

36

Toro 33-2090

CHUTE SUPT BRKT

$

$

Not available

37

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

38

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

39

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

40

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

41

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

42

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

43

Toro 28-8060

Chute Assembly (Incl. Ref. #36-44)

$

$

Not available

44

Toro 26-7030

Decal-Chute
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

45

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

46

Toro 36-7900

Duct
(Superseded to 47-7210)

$

$

Not available

47

Toro 36-7760

DUCT SEAL

$23.99

$

Usually ships in 3-6 days

0

48

Toro 33-0870

Deflector

$

$

Not available

49

Toro 36-3570

Cover

$

$

Not available

Toro 8-0639

Plastic Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 33-1060

CLOTH BAG

Note: Not illustrated

$183.99

$

Usually ships in 3-6 days

0

Toro 8-1789

Loose Parts

Note: Not illustrated

$

$

Not available
