57360 (11-32) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

Lawn Tractor

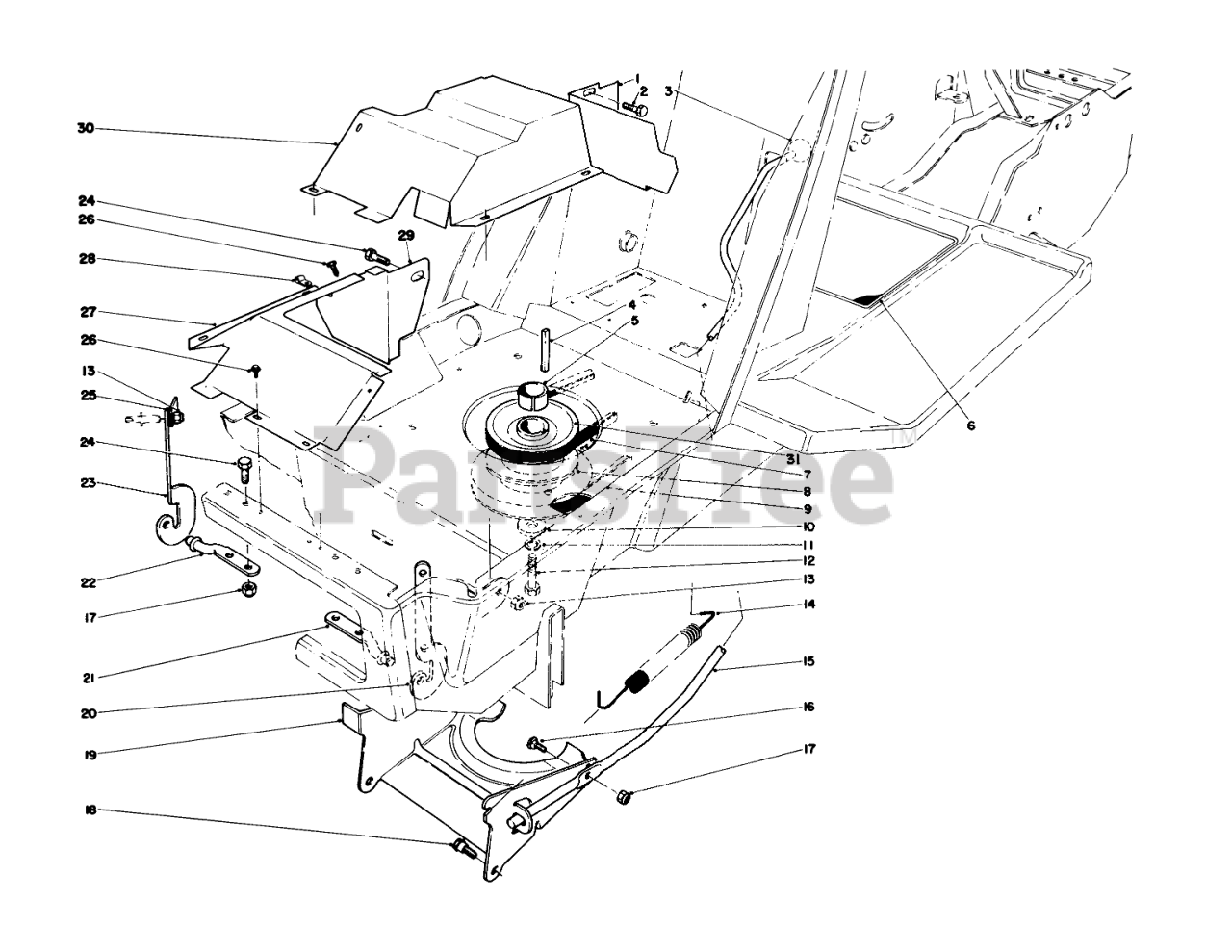

CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 28-3990

EXH SHIELD SUPT B

$

$

Not available

Toro 28-3870

EXH SHIELD SUPT B

Note: Not illustrated

$

$

Not available

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

$13.99

$

In Stock, only 4 left!

0

4

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

5

Toro 27-8910

PULLEY SPACER

$

$

Not available

6

Toro 28-8140

OPERATION DECAL

$

$

Not available

7

Toro 28-2650

V BELT

$64.99

$

In Stock, only 1 left!

0

8

Toro 36-4800

Clutch & Brake-Deck
(Superseded to 8-7849)

$

$

Not available

9

Toro 28-5250

V BELT

$26.99

$

Usually ships in 3-6 days

0

10

Toro 27-8920

WASHER

$4.99

$

Usually ships in 3-6 days

0

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 3212-21

SCREW-HH
(Superseded to 3212-8)

$6.49

$

In Stock, only 4 left!

0

13

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

14

Toro 27-8960

TRACTION SPRING

$

$

Not available

15

Toro 28-2320

Engagement Lever

$

$

Not available

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

19

Toro 36-3160

Actuator Clutch
(Superseded to 38-2800)

$

$

Not available

20

2&0120

Bracket-Hinge L.H.

$

$

Not available

21

Toro 28-0110

LH HOOD HINGE PIN

$

$

Not available

22

Toro 28-0100

RH HOOD HINGE PIN

$

$

Not available

23

Toro 28-0130

RH HINGE BRKT

$70.99

$

Usually ships in 3-6 days

0

24

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

25

Toro 37-0170

SCREEN SUPT BRKT

$

$

Not available

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 33-0840

Heat Shield

$

$

Not available

Toro 33-0950

HEAT SHIELD B

Note: Not illustrated

$

$

Not available

28

Toro 2412-51

CABLE CLAMP

$

$

Not available

29

Toro 28-3980

Support Heat Shield

$

$

Not available

Toro 28-3900

HEAT SHIELD SUPT B

Note: Not illustrated

$

$

Not available

30

Toro 33-0820

HEAT SHIELD WA B

$

$

Not available

Toro 33-0940

HEAT SHIELD WA B

Note: Not illustrated

$

$

Not available

31

Toro 36-4810

TOP SHEAVE

$

$

Not available
