57360 (11-32) - Toro Lawn Tractor (SN: 007000001 - 007999999) (1987) REAR BODY & SEAT ASSEMBLY Parts Diagram

Lawn Tractor

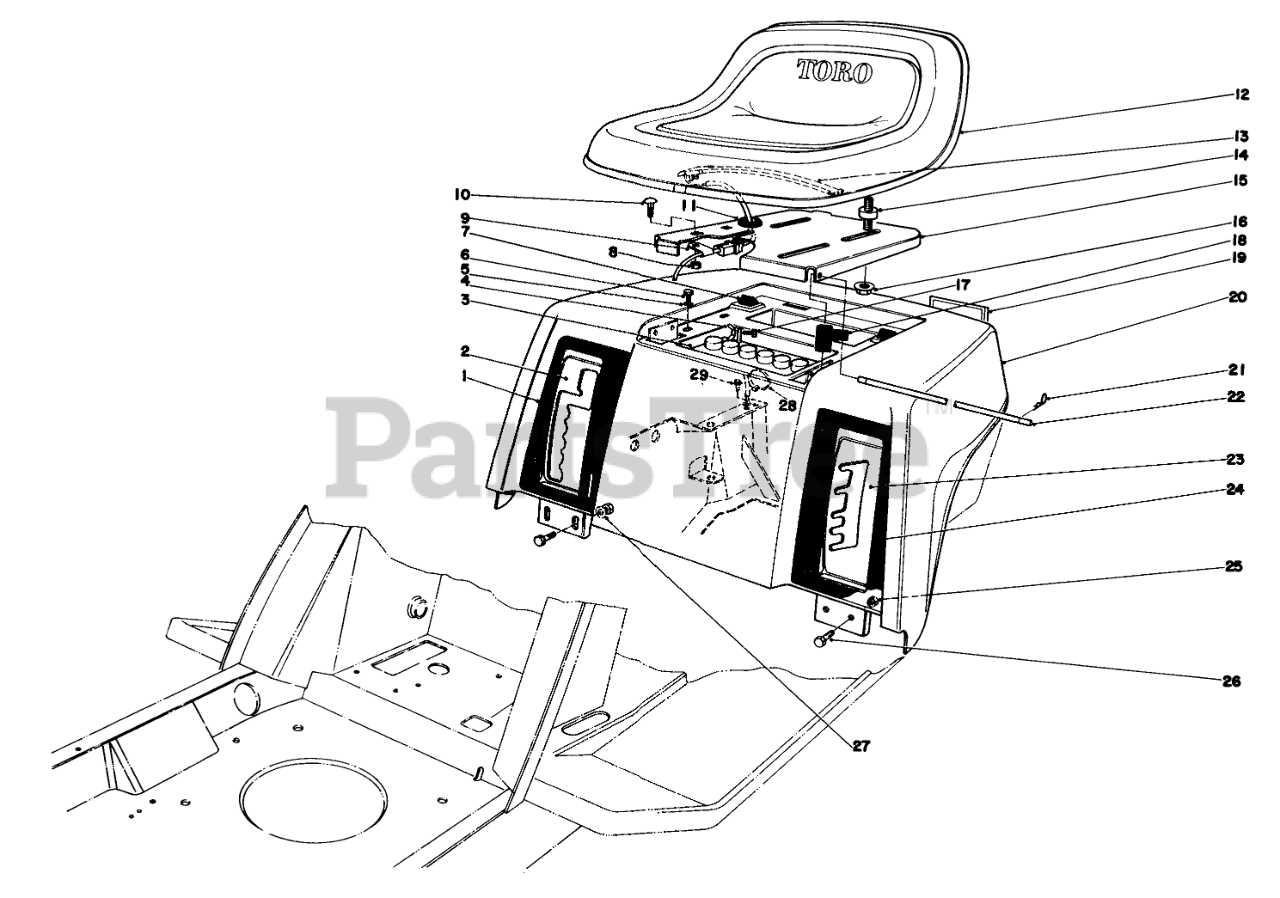

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 36-1530

Decal-Transmission
(Superseded to 63-5700)

$

$

Not available

2

Toro 28-0370

DETENT PLATE B

$

$

Not available

3

Toro 49-7030

Battery

$

$

Not available

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 28-9440

SEAT BUMPER

$

$

Not available

8

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

9

Toro 2412-66

CLAMP

$

$

Not available

10

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

Toro 38-1420

SWITCH-SEAT

$

$

Not available

14

Toro 62-5480

ISOLATER-SEAT

$35.99

$

Usually ships in 3-6 days

0

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

15

Toro 36-1490

SEAT SUPPORT R

$

$

Not available

16

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

19

Toro 218-491

REFLECTOR

$

$

Not available

20

Toro 8-3219

Rear Body Assembly (Incl. Ref. #1 & 24)
(Superseded to 14-3379)

$

$

Not available

21

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

22

Toro 28-2400

PIVOT-SEAT

$60.99

$

Usually ships in 3-6 days

0

23

Toro 44-5730

HOC QUADRANT B

$

$

Not available

24

Toro 44-5840

HOC DECAL

$

$

Not available

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
